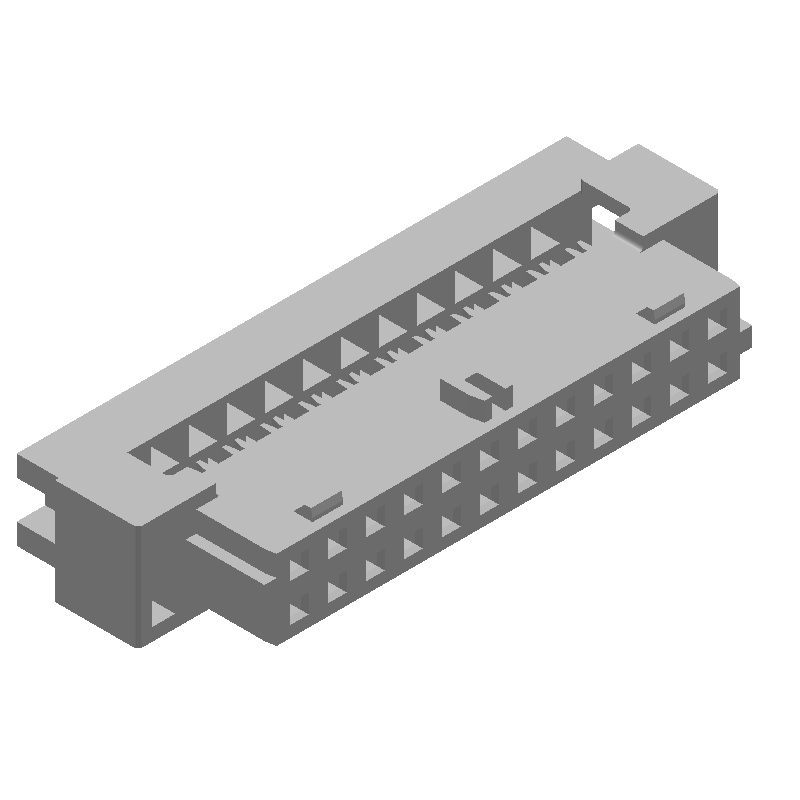

87568-2493 by: Molex

Board Connector, 24 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Friction Ramp, Black Insulator, Receptacle,

Part Details for 87568-2493 by Molex

Results Overview of 87568-2493 by Molex

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

87568-2493 Information

87568-2493 by Molex is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 87568-2493

Part # Distributor Description Stock Price Buy
DISTI # 94M1180
Newark Mgrid Idt Rec W/Polkeylrmp .38Aulf 24Ckt |Molex 87568-2493 (Alternate Part Number: 822348457915 RoHS: Not Compliant Min Qty: 30 Package Multiple: 1 Date Code: 0 Container: Bulk 264
  • 25 $2.6500
  • 50 $2.5300
  • 100 $2.3900
  • 250 $2.3000
$2.3000 / $2.6500 Buy Now
DISTI # 45Y9902
Newark Wire-To-Board Connector, Milli-Grid 87568 Series, Idc/Idt, Receptacle, 24, 2 Mm Rohs Compliant: Yes |Molex 87568-2493 (Alternate Part Number: 822348457915 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $3.6300
  • 10 $3.1500
  • 25 $2.9800
  • 50 $2.8600
  • 100 $2.5800
  • 250 $2.5600
  • 500 $2.5300
$2.5300 / $3.6300 Buy Now
DISTI # 0875682493
Avnet Americas Conn IDC Connector RCP 24 POS 2mm IDT RA Cable Mount Tray - Trays (Alt: 0875682493) COO: Singapore RoHS: Compliant Min Qty: 7000 Package Multiple: 1400 Lead time: 14 Weeks, 0 Days Container: Tray 0
  • 7,000 $2.4375
  • 16,800 $2.0186
  • 40,600 $1.9082
  • 81,200 $1.7510
  • 200,200 $1.6000
$1.6000 / $2.4375 Buy Now
DISTI # 538-87568-2493
Mouser Electronics Headers & Wire Housings MGRID 24CKT RECPT IDT W/ PKEY LRMP RoHS: Compliant 2082
  • 1 $3.5600
  • 10 $3.0300
  • 25 $2.6900
  • 50 $2.6000
  • 70 $2.3600
  • 280 $2.2700
  • 560 $2.2100
  • 1,050 $2.1300
  • 2,520 $2.0900
$2.0900 / $3.5600 Buy Now
DISTI # 71475806
RS MILLI GRID CABLE TO BOARD RECEPTACLE, DUAL ROW, IDT, LEAD FREE, 24 CIRCUITS Min Qty: 1 Package Multiple: 1 Lead time: 30 Weeks, 0 Days Container: Bulk 1178
  • 1 $3.6300
  • 25 $3.3400
  • 50 $3.1200
  • 100 $2.9600
  • 250 $2.8000
$2.8000 / $3.6300 Buy Now
DISTI # MOL87568-2493
Heilind Electronics MGRID IDT REC W/POLKEYLRMP .3 AULF 24CKT Americas - 0 in Stock
  • 7,000 $2.2750
$2.2750 Buy Now
Onlinecomponents.com Conn IDC Connector RCP 24 POS 1mm IDT RA Cable Mount Milli-Grid™ Tray COO: Malaysia RoHS: Compliant 264 Partner Stock
  • 30 $2.3500
  • 150 $2.3100
  • 300 $2.2700
  • 600 $2.2200
  • 7,000 $2.1900
  • 16,000 $2.0800
  • 40,000 $1.8600
  • 80,000 $1.7400
$1.7400 / $2.3500 Buy Now
Bristol Electronics   2
RFQ
DISTI # 87568-2493
TTI Headers & Wire Housings MGRID 24CKT RECPT IDT W/ PKEY LRMP RoHS: Compliant pbFree: Pb-Free Min Qty: 70 Package Multiple: 70 Container: Tray Americas - 630
In Stock
  • 70 $2.5700
  • 140 $2.1800
  • 280 $2.1500
  • 560 $2.1200
  • 980 $2.0900
$2.0900 / $2.5700 Buy Now
DISTI # MX-87568-2493
TME Connector: wire-wire/PCB, plug, female, PIN: 24, Milli-Grid, IDC Min Qty: 1 126
  • 1 $2.3700
  • 50 $2.1100
  • 70 $2.0400
  • 280 $1.6400
$1.6400 / $2.3700 Buy Now
Powell Electronics Connector Min Qty: 30 2748
  • 30 $2.6700
  • 150 $2.6300
  • 300 $2.5900
  • 600 $2.5300
  • 7,000 $2.4900
$2.4900 / $2.6700 Buy Now
Master Electronics Conn IDC Connector RCP 24 POS 1mm IDT RA Cable Mount Milli-Grid™ Tray COO: Malaysia RoHS: Compliant 264 Partner Stock
  • 30 $2.3500
  • 150 $2.3100
  • 300 $2.2700
  • 600 $2.2200
  • 7,000 $2.1900
  • 16,000 $2.0800
  • 40,000 $1.8600
  • 80,000 $1.7400
$1.7400 / $2.3500 Buy Now

US Tariff Estimator: 87568-2493 by Molex

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

87568-2493
Molex
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 87568-2493

87568-2493 Part Data Attributes

Parametric Data
87568-2493 Molex
Buy Now Datasheet
Compare Parts:
87568-2493 Molex Board Connector, 24 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Friction Ramp, Black Insulator, Receptacle,
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 24 Weeks
Body Breadth 0.219 Inch
Body Depth 0.359 Inch
Body Length 1.207 Inch
Body/Shell Style Receptacle
Connector Type Board Connector
Contact Design Preassem Conn
Contact Finish Mating Not Specified
Contact Finish Termination Matte Tin (Sn) - With Nickel (Ni) Barrier
Contact Gender Female
Contact Material Beryllium Copper
Contact Pattern Rectangular
Contact Resistance 30 MΩ
Contact Style Sq Pin-Skt
DIN Conformance No
Dielectric Withstanding Voltage 500vac V
Durability 100 Cycles
Filter Feature No
IEC Conformance No
Insertion Force-Max 1.946 N
Insulation Resistance 5000000000 Ω
Insulator Color Black
Insulator Material Glass Filled Polybutylene Terephthalate
JESD-609 Code e3
MIL Conformance No
Mating Contact Pitch 0.079 Inch
Mating Contact Row Spacing 0.079 Inch
Mating Information Multiple Mating Parts Available
Mixed Contacts No
Mounting Option 1 Locking
Mounting Type Cable
Number Of Connectors One
Number of Rows Loaded 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -45 °C
Option General Purpose
Plating Thickness 15u Inch
Polarization Key Polarized Housing
Rated Current (Signal) 1 A
Reference Standard Ul, Csa
Termination Type Idc
Total Number of Contacts 24
UL Flammability Code 94V-0
Wire Size-Max 28 Awg
Wire Size-Min 28 Awg
Withdrawl Force-Min .3892 N

Alternate Parts for 87568-2493

This table gives cross-reference parts and alternative options found for 87568-2493. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 87568-2493, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
89947-424 Amphenol FCi Check for Price Board Connector, 24 Contact(s), 2 Row(s), Female, IDC Terminal 87568-2493 vs 89947-424
Part Number Manufacturer Composite Price Description Compare
87568-2444 Molex $1.9600 Board Connector, 24 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Friction Ramp, Black Insulator, Receptacle, 87568-2493 vs 87568-2444
89947-724LF Amphenol Communications Solutions $2.3100 Minitek® 2.00mm, Cable to Board Connector, IDC Receptacle, Double row, 24 Positions, 2.00mm (0.079in) Pitch. 87568-2493 vs 89947-724LF
87568-2463 Molex $2.8539 Board Connector, 24 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Locking, Black Insulator, Receptacle, 87568-2493 vs 87568-2463
89947-824 Amphenol FCi Check for Price Board Connector, 24 Contact(s), 2 Row(s), Female, IDC Terminal 87568-2493 vs 89947-824
89947-024 Amphenol FCi Check for Price Board Connector, 24 Contact(s), 2 Row(s), Female, IDC Terminal 87568-2493 vs 89947-024
89947-224 Amphenol FCi Check for Price Board Connector, 24 Contact(s), 2 Row(s), Female, IDC Terminal 87568-2493 vs 89947-224
89947-624 Amphenol FCi Check for Price Board Connector, 24 Contact(s), 2 Row(s), Female, IDC Terminal 87568-2493 vs 89947-624
89947-924 Amphenol FCi Check for Price Board Connector, 24 Contact(s), 2 Row(s), Female, IDC Terminal 87568-2493 vs 89947-924
89947-324 Amphenol FCi Check for Price Board Connector, 24 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Guide Slot, Black Insulator, Plug 87568-2493 vs 89947-324
89947-724 Amphenol FCi Check for Price Board Connector, 24 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Guide Slot, Black Insulator, Plug 87568-2493 vs 89947-724
equivalents icon

87568-2493 Related Parts

87568-2493 Frequently Asked Questions (FAQ)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).

  • Yes, the 87568-2493 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.

  • The 87568-2493 has a IP67 rating, making it suitable for outdoor use and able to withstand exposure to water and dust.

  • The operating temperature range for the 87568-2493 is -40°C to 105°C (-40°F to 221°F).

  • No, the 87568-2493 is designed for use with wire gauges 24 AWG to 30 AWG. Using a larger wire gauge may not provide a secure connection.
