87832-0607 by: Molex

Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle,

Part Details for 87832-0607 by Molex

Results Overview of 87832-0607 by Molex

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Electronic Manufacturing Entertainment and Gaming

87832-0607 Information

87832-0607 by Molex is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
G832MB010607022HR Amphenol Communications Solutions 0.80mm Board-to-Board 85Ω Connector, Pitch 0.8mm, Height 15.7 mm, 60 Positions, Dual Row, BTB Vertical Receptacle SMT, Gold Flash Black.
54101-T06-07LF Amphenol Communications Solutions BergStik<sup>®<sup>, Board to Board connector, 2.54mm (0.100in), Unshrouded vertical Header, Through Hole, Single Row, 7 Positions
98426-G06-07-148LF Amphenol Communications Solutions Minitek® 2.00mm, Board to Board, Shrouded Vertical Stacking Header, Through Hole, Double Row, 14 Positions, 2.00mm (0.079in) Pitch.

Price & Stock for 87832-0607

Part # Distributor Description Stock Price Buy
DISTI # 26AK4692
Newark Conn, Hdr, 6Pos, 2Row, 2Mm, Smt Rohs Compliant: Yes |Molex 87832-0607 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 165
  • 1 $1.2200
  • 10 $1.1400
  • 25 $1.1200
  • 50 $1.1200
  • 100 $1.0700
  • 250 $1.0400
  • 500 $1.0200
  • 1,000 $1.0000
$1.0000 / $1.2200 Buy Now
DISTI # 92AJ7857
Newark Conn, Hdr, 6Pos, 2Row, 2Mm, Smt Rohs Compliant: Yes |Molex 87832-0607 RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Tape & Reel 0
  • 500 $1.1700
  • 1,000 $1.1300
  • 2,000 $1.0300
$1.0300 / $1.1700 Buy Now
DISTI # 0878320607
Avnet Americas - Tape and Reel (Alt: 0878320607) COO: Malaysia RoHS: Compliant Min Qty: 25000 Package Multiple: 2500 Lead time: 17 Weeks, 0 Days Container: Tape & Reel 0
  • 25,000 $0.6891
  • 80,000 $0.6183
  • 200,000 $0.6152
  • 400,000 $0.6120
  • 1,000,000 $0.6089
$0.6089 / $0.6891 Buy Now
DISTI # 538-87832-0607
Mouser Electronics Headers & Wire Housings MGrid Hdr SMT /Lck/C Cap T&R .76AuLF 6Ckt RoHS: Compliant 612
  • 1 $1.2500
  • 10 $1.0700
  • 100 $0.8320
  • 500 $0.7780
  • 1,000 $0.7110
  • 2,500 $0.6780
$0.6780 / $1.2500 Buy Now
DISTI # 70374256
RS HEADERS, MGRID HDR SMT /LCK/C CAP T&R .76AULF 6CKT Min Qty: 500 Package Multiple: 1 Lead time: 27 Weeks, 0 Days Container: Bulk 0
  • 500 $0.9500
  • 1,000 $0.8700
  • 2,000 $0.7600
$0.7600 / $0.9500 RFQ
DISTI # MOL87832-0607
Heilind Electronics MGRID HDR SMT /LCK/CAP T& AULF 6CKT Americas - 0 in Stock
  • 25,000 $0.6431
$0.6431 Buy Now
Onlinecomponents.com 2.00mm Pitch Milli-Grid™ Header, Surface Mount, Vertical, Shrouded, Lead-Free, 6 Circuits, 0.76µm Gold (Au) Plating, with Locking Window, Pick-and-Place Cap, PCB Locator, Embossed Tape on Reel COO: Malaysia RoHS: Compliant 294 Partner Stock
  • 1 $0.6710
  • 25,000 $0.6100
  • 80,000 $0.5300
$0.5300 / $0.6710 Buy Now
DISTI # MX-87832-0607
TME Connector: PCB-cable/PCB, socket, male, PIN: 6, Milli-Grid, THT Min Qty: 2500 0
  • 2,500 $0.8500
$0.8500 RFQ
Powell Electronics Connector Min Qty: 25000 194
  • 25,000 $0.7100
  • 80,000 $0.6100
$0.6100 / $0.7100 Buy Now
DISTI # 87832-0607
Maritex Signal and Industrial Connectors, MOLEX, 87832-0607, Vertical, SG, 2, Solder Min Qty: 1 Package Multiple: 1 2403
  • 1 $0.8520
  • 10 $0.7590
  • 25 $0.7530
  • 100 $0.7500
  • 2,500 $0.7500
$0.7500 / $0.8520 Buy Now
Master Electronics 2.00mm Pitch Milli-Grid™ Header, Surface Mount, Vertical, Shrouded, Lead-Free, 6 Circuits, 0.76µm Gold (Au) Plating, with Locking Window, Pick-and-Place Cap, PCB Locator, Embossed Tape on Reel COO: Malaysia RoHS: Compliant 294 Partner Stock
  • 1 $0.6710
  • 25,000 $0.6100
  • 80,000 $0.5300
$0.5300 / $0.6710 Buy Now

US Tariff Estimator: 87832-0607 by Molex

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

87832-0607
Molex
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for 87832-0607

87832-0607 CAD Models

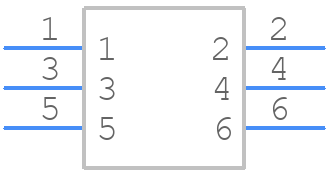

  • Part Symbol

    schematic symbol

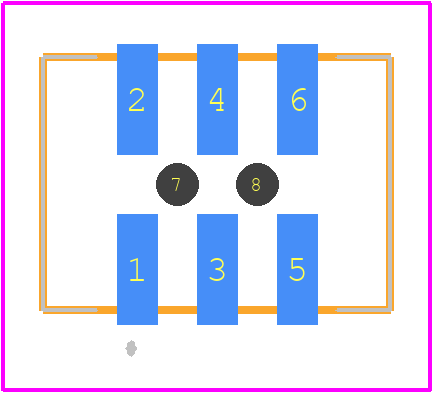

  • Footprint

    pcb footprint

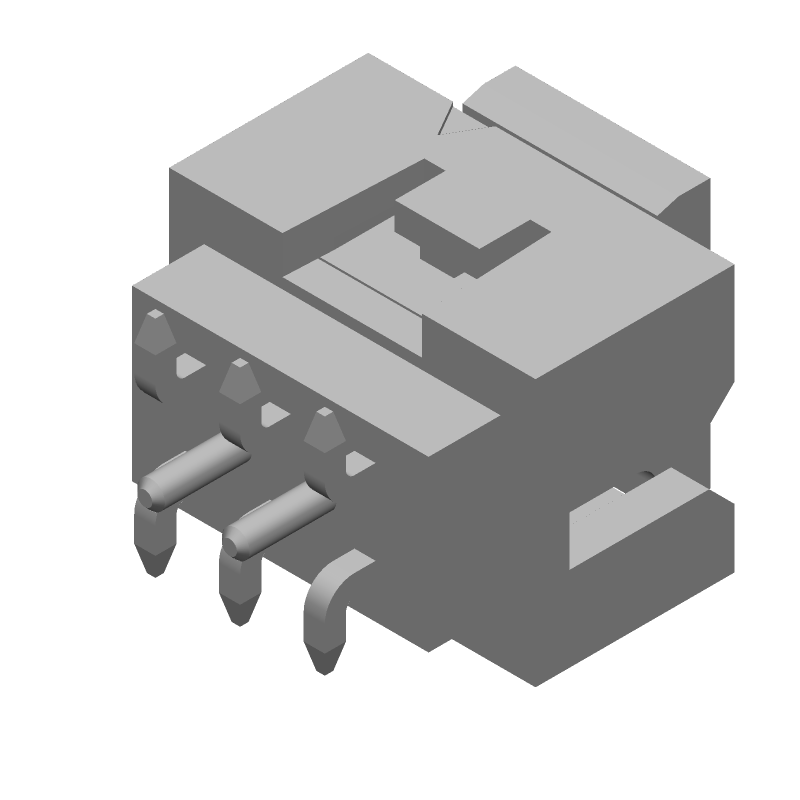

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

87832-0607 Part Data Attributes

Parametric Data
87832-0607 Molex
Buy Now Datasheet
Compare Parts:
87832-0607 Molex Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle,
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 27 Weeks
Additional Feature Shrouded
Board Mounting Option Peg
Body Breadth 0.248 Inch
Body Depth 0.252 Inch
Body Length 0.34 Inch
Body/Shell Style Receptacle
Connector Type Board Connector
Contact Finish Mating Not Specified
Contact Finish Termination Tin (Sn)
Contact Gender Male
Contact Material Not Specified
Contact Pattern Rectangular
Contact Resistance 30 MΩ
Contact Style Sq Pin-Skt
DIN Conformance No
Dielectric Withstanding Voltage 500vac V
Durability 100 Cycles
Filter Feature No
IEC Conformance No
Insertion Force-Max 2.0016 N
Insulation Resistance 5000000000 Ω
Insulator Color Black
Insulator Material Glass Filled Polyamide
JESD-609 Code e3
MIL Conformance No
Mating Contact Pitch 0.079 Inch
Mating Contact Row Spacing 0.079 Inch
Mating Information Multiple Mating Parts Available
Mixed Contacts No
Mounting Option 1 Locking
Mounting Style Right Angle
Mounting Type Board
Number Of Connectors One
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -55 °C
Option General Purpose
PCB Contact Pattern Rectangular
PCB Contact Row Spacing 4.2418 Mm
Plating Thickness 15u Inch
Polarization Key Ctr W/Guide Slots
Rated Current (Signal) 1 A
Reference Standard Ul
Terminal Pitch 2 Mm
Termination Type Surface Mount
Total Number of Contacts 6
UL Flammability Code 94V-0
Withdrawl Force-Min .3892 N

Alternate Parts for 87832-0607

This table gives cross-reference parts and alternative options found for 87832-0607. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 87832-0607, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
98424-F52-06ULF Amphenol FCi Check for Price Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Cream Insulator, Plug 87832-0607 vs 98424-F52-06ULF
878320621 Molex Check for Price Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, 87832-0607 vs 878320621
98424-S52-06A Amphenol FCi Check for Price Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Cream Insulator, Plug 87832-0607 vs 98424-S52-06A
878320622 Molex Check for Price Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, 87832-0607 vs 878320622
98424-F52-06ALF Amphenol FCi Check for Price Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Cream Insulator, Plug, ROHS COMPLIANT 87832-0607 vs 98424-F52-06ALF
98424-S52-06AVLF Amphenol FCi Check for Price Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Cream Insulator 87832-0607 vs 98424-S52-06AVLF
98424-T52-06CLF Amphenol FCi Check for Price Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking 87832-0607 vs 98424-T52-06CLF
98424-F52-06CLF Amphenol FCi Check for Price Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Cream Insulator 87832-0607 vs 98424-F52-06CLF
98424-G52-06KVLF Amphenol FCi Check for Price Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Cream Insulator 87832-0607 vs 98424-G52-06KVLF
Part Number Manufacturer Composite Price Description Compare
98424-G52-06ALF Amphenol Communications Solutions $0.5196 Minitek®, Board/Wire to Board Connector, 2.00mm (0, 079in), Shrouded Vertical Header, Surface Mount, Double Row, 6 positions 87832-0607 vs 98424-G52-06ALF
TSM-103-01-SM-DV-A-TR Samtec Inc Check for Price Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, 87832-0607 vs TSM-103-01-SM-DV-A-TR
20021121-00006D1LF Amphenol FCi Check for Price Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, LEAD FREE 87832-0607 vs 20021121-00006D1LF
878320606 Molex Check for Price Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, 87832-0607 vs 878320606
TSM-103-02-TM-DV-P-TR Samtec Inc Check for Price Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, 87832-0607 vs TSM-103-02-TM-DV-P-TR
98424-G52-06ULF Amphenol FCi Check for Price Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Cream Insulator, Plug 87832-0607 vs 98424-G52-06ULF
87832-0625 Molex Check for Price Board Connector 87832-0607 vs 87832-0625
87832-5262 Molex Check for Price Board Connector 87832-0607 vs 87832-5262
20021221-00006D8LF Amphenol FCi Check for Price Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, LEAD FREE 87832-0607 vs 20021221-00006D8LF
75867-331 Amphenol FCi Check for Price Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Guide Slot, Blue Insulator, Receptacle 87832-0607 vs 75867-331
