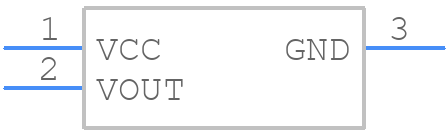

Part Symbol
-
Footprint
-

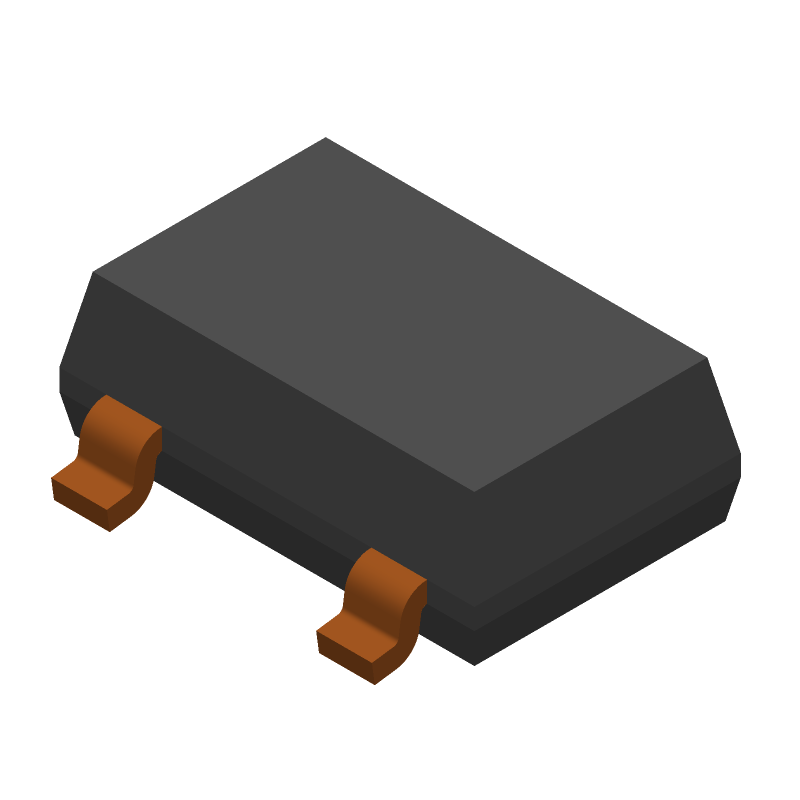

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for A1120ELHLT-T by Allegro MicroSystems LLC
Results Overview of A1120ELHLT-T by Allegro MicroSystems LLC
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (5 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
A1120ELHLT-T Information
A1120ELHLT-T by Allegro MicroSystems LLC is a Magnetic Field Sensor.
Magnetic Field Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for A1120ELHLT-T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
67R6743
|
Newark | Hall Effect Sensor, Unipolar, 25 Ma, Sot-23, 3, 3 V, 24 V Rohs Compliant: Yes |Allegro Microsystems A1120ELHLT-T RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 27092 |
|
$0.7880 / $1.1700 | Buy Now |
|
DISTI #
620-1275-1-ND
|
DigiKey | MAGNETIC SWITCH UNIPOLAR SOT23W Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
15845 In Stock |
|
$0.5568 / $1.0200 | Buy Now |
|
DISTI #
250-A1120ELHLT-T
|
Mouser Electronics | Board Mount Hall Effect / Magnetic Sensors LOW VOLTAGE GENERAL PURPOSE UNIPOLAR SWI RoHS: Compliant | 16647 |
|
$0.5980 / $1.0200 | Buy Now |
|
|
Future Electronics | A1120 Series 24 V Open Drain Output Precision Hall Effect Switch - SOT-23W-3 RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks Container: Cut Tape/Mini-Reel | 2000Cut Tape/Mini-Reel |
|
$0.8850 / $1.2000 | Buy Now |
|
|
Future Electronics | A1120 Series 24 V Open Drain Output Precision Hall Effect Switch - SOT-23W-3 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 16 Weeks Container: Reel | 0Reel |
|
$0.5000 / $0.5100 | Buy Now |
|
|
Quest Components | HALL EFFECT SENSOR, 0.5MT MIN, 5MT MAX, 30-60MA, BICMOS, PLASTIC/EPOXY, RECTANGULAR, 3 PIN, SURFACE MOUNT | 2980 |
|
$0.9458 / $2.5220 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 659 |
|
RFQ | |
|
|
Chip Stock | ALLEGROMICROSYSTEMSA1120ELHLT-THallEffectSensor,Unipolar,25mA,SOT-23,3Pins,3V,24V | 77350 |
|
RFQ | |
|
|
LCSC | SOT-23 Switches (Solid State) RoHS | 29 |
|
$0.7992 / $0.8491 | Buy Now |
|
|
Win Source Electronics | MAGNETIC SWITCH UNIPOLAR SOT23W | 64850 |
|
$0.6872 / $1.0307 | Buy Now |
Part Details for A1120ELHLT-T
A1120ELHLT-T CAD Models
A1120ELHLT-T Part Data Attributes
|
|
A1120ELHLT-T
Allegro MicroSystems LLC
Buy Now
Datasheet
|
Compare Parts:
A1120ELHLT-T
Allegro MicroSystems LLC
Hall Effect Sensor, 0.5mT Min, 5mT Max, 30-60mA, Rectangular, Surface Mount, SOT-23, 3 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOT-23 | |
| Package Description | Sot-23, 3 Pin | |
| Pin Count | 3 | |
| Reach Compliance Code | Compliant | |
| Body Breadth | 1.91 Mm | |
| Body Height | 1 Mm | |
| Body Length or Diameter | 2.98 Mm | |
| Housing | Plastic | |
| Hysteresis | 1 Mt | |
| Input Mode | Unipolar | |
| JESD-609 Code | e3 | |
| Magnetic Field Range-Max | 5 Mt | |
| Magnetic Field Range-Min | 0.5 Mt | |
| Mounting Feature | Surface Mount | |
| Number of Terminals | 3 | |
| Operating Current-Max | 4 Ma | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output | Open-Drain | |
| Output Circuit Type | Transistor | |
| Output Current-Max | 60 Ma | |
| Output Range | 30-60ma | |
| Output Type | Current Output | |
| Package Body Material | Plastic/Epoxy | |
| Package Equivalence Code | TO-236 | |
| Package Shape/Style | Rectangular | |
| Screening Level | Aec-Q100 | |
| Sensors/Transducers Type | Magnetic Field Sensor,Hall Effect | |
| Supply Voltage-Max | 24 V | |
| Supply Voltage-Min | 3 V | |
| Surface Mount | Yes | |
| Technology | Bicmos | |
| Terminal Finish | Matte Tin | |
| Termination Type | Solder |
Alternate Parts for A1120ELHLT-T
This table gives cross-reference parts and alternative options found for A1120ELHLT-T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of A1120ELHLT-T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| HAL506SF-K | TDK Corporation | Check for Price | Hall Effect Sensor, 2mT Min, 7.2mT Max, 0-20mA, Rectangular, Surface Mount, PLASTIC, SOT-89B-1, 4 PIN | A1120ELHLT-T vs HAL506SF-K |
| A3295KLHLX-T | Allegro MicroSystems LLC | Check for Price | Hall Effect Sensor, 0.5mT Min, 7.5mT Max, 30-60mA, Rectangular, Surface Mount, SOT-23W, 3 PIN | A1120ELHLT-T vs A3295KLHLX-T |
| A1120ELHLX-T | Allegro MicroSystems LLC | Check for Price | Hall Effect Sensor, 0.5mT Min, 5mT Max, 30-60mA, Rectangular, Surface Mount, SOT-23, 3 PIN | A1120ELHLT-T vs A1120ELHLX-T |
| A3295KLHLT-T | Allegro MicroSystems LLC | Check for Price | Hall Effect Sensor, 0.5mT Min, 7.5mT Max, 30-60mA, Rectangular, Surface Mount, SOT-23W, 3 PIN | A1120ELHLT-T vs A3295KLHLT-T |
| HAL506SF-A | TDK Micronas GmbH | Check for Price | Hall Effect Sensor, 2mT Min, 7.2mT Max, 0-20mA, CMOS, Plastic/epoxy, Rectangular, 3 Pin, Surface Mount, PLASTIC, SOT-89B-1, 4 PIN | A1120ELHLT-T vs HAL506SF-A |
