A1501WV-S-5P by: CJT Changjiang Connectors Co Ltd

Wire-to-Board Connector; 1.50mm (0.059 in) Pitch Header,Surface Mount,Vertical,5 Positions; Temperature Range:: -40~+105º; RoHS: Yes; REACH: Yes

Part Details for A1501WV-S-5P by CJT Changjiang Connectors Co Ltd

Results Overview of A1501WV-S-5P by CJT Changjiang Connectors Co Ltd

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

A1501WV-S-5P Information

A1501WV-S-5P by CJT Changjiang Connectors Co Ltd is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for A1501WV-S-5P

Part # Distributor Description Stock Price Buy
LCSC 5P ZH 1x5P Tin -40+105 1.5mm 100V 5 2A 1 Surface MountVertical SMDP1.5mm Headers Male Pins RoHS 945
  • 5 $0.2034
  • 50 $0.1621
  • 150 $0.1444
  • 1,000 $0.1223
  • 2,000 $0.1125
  • 5,000 $0.1066
$0.1066 / $0.2034 Buy Now
Unikey Electronic Pte Ltd   500
  • 5 $0.1676
  • 50 $0.1394
  • 150 $0.1191
  • 500 $0.1015
$0.1015 / $0.1676 Buy Now

Part Details for A1501WV-S-5P

A1501WV-S-5P CAD Models

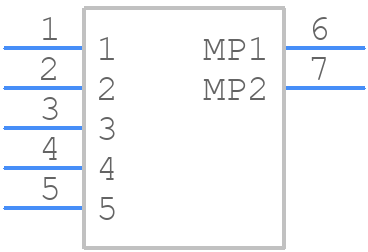

  • Part Symbol

    schematic symbol

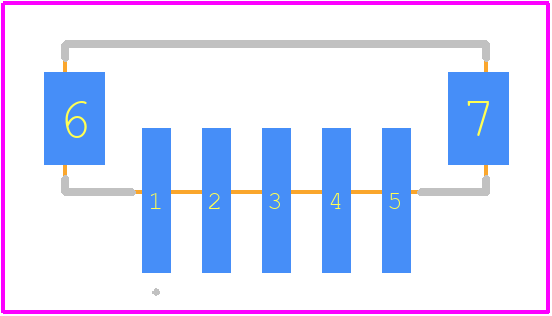

  • Footprint

    pcb footprint

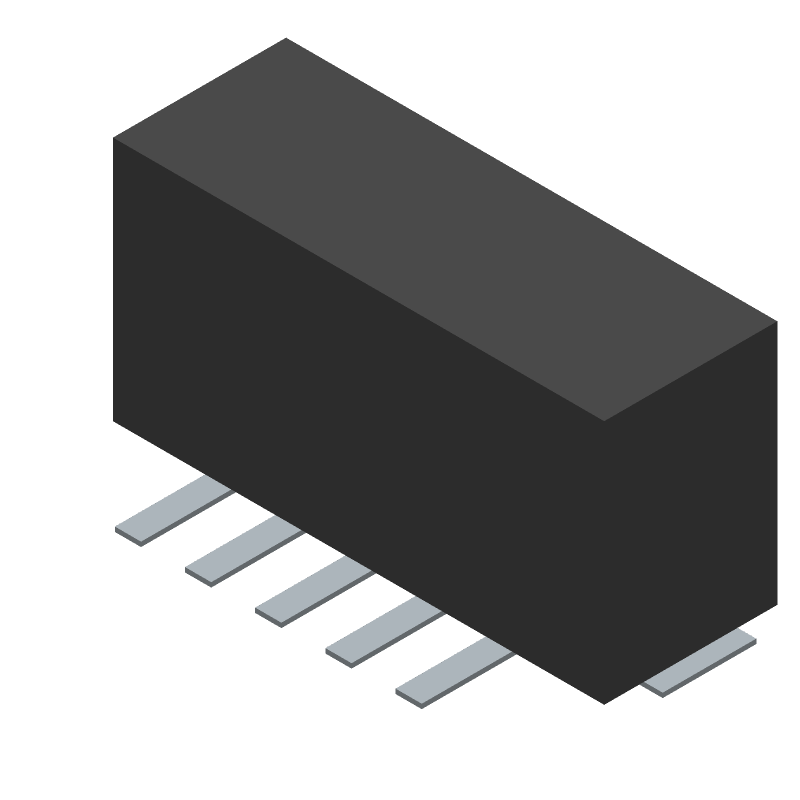

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

A1501WV-S-5P Part Data Attributes

Parametric Data
A1501WV-S-5P CJT Changjiang Connectors Co Ltd
Buy Now Datasheet
Compare Parts:
A1501WV-S-5P CJT Changjiang Connectors Co Ltd Wire-to-Board Connector; 1.50mm (0.059 in) Pitch Header,Surface Mount,Vertical,5 Positions; Temperature Range:: -40~+105º; RoHS: Yes; REACH: Yes
Rohs Code Yes
Part Life Cycle Code Active
Reach Compliance Code Compliant
