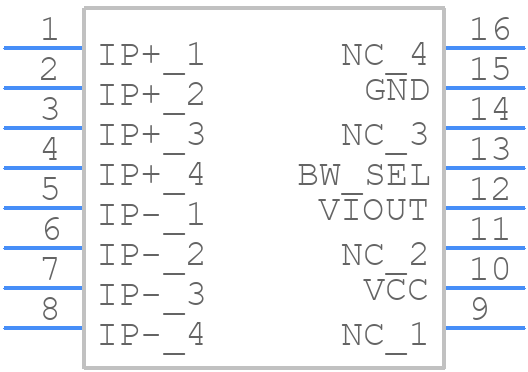

Part Symbol
-
Footprint
-

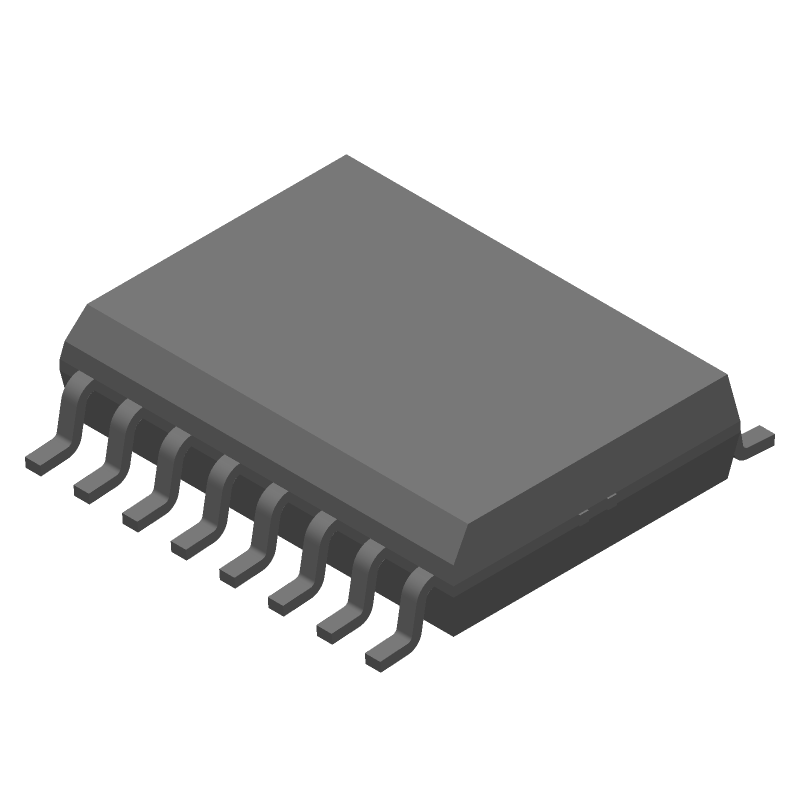

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ACS723KMATR-40AB-T by Allegro MicroSystems LLC
Results Overview of ACS723KMATR-40AB-T by Allegro MicroSystems LLC
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ACS723KMATR-40AB-T Information
ACS723KMATR-40AB-T by Allegro MicroSystems LLC is an Other Sensor/Transducer.
Other Sensors/Transducers are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for ACS723KMATR-40AB-T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
620-1743-1-ND
|
DigiKey | CURRENT SENSOR HE/OL 40A 16-SOIC Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
5062 In Stock |
|
$2.9875 / $5.1800 | Buy Now |
|
DISTI #
250-723KMATR40ABT
|
Mouser Electronics | Board Mount Current Sensors HIGH ACCURACY GALVANICALLY ISOLATED CURRENT SENSOR RoHS: Compliant | 5407 |
|
$2.9800 / $5.1800 | Buy Now |
|
|
Future Electronics | ACS723 Series 5.5 V 40 A 80 kHz SMT Hall Effect Current Sensor - SOIC-16 RoHS: Not Compliant pbFree: Yes Min Qty: 6000 Package Multiple: 1000 Lead time: 12 Weeks Container: Reel | 0Reel |
|
$3.1900 | Buy Now |
|
DISTI #
85965516
|
Verical | Open Loop Current Sensor AC/DC Current 5V 16-Pin SOIC W T/R RoHS: Compliant Min Qty: 96 Package Multiple: 1 Date Code: 2301 | Americas - 768 |
|
$3.1375 / $3.9250 | Buy Now |
|
|
Rochester Electronics | Current Sensor, Analog, BICMOS, 16 Pin, Plastic RoHS: Compliant Status: Active Min Qty: 1 | 768 |
|
$2.5100 / $3.1400 | Buy Now |
|
DISTI #
85965516
|
Verical | Open Loop Current Sensor AC/DC Current 5V 16-Pin SOIC W T/R RoHS: Compliant Min Qty: 96 Package Multiple: 1 Date Code: 2301 | Americas - 768 |
|
$3.1375 / $3.9250 | Buy Now |
|
DISTI #
85965516
|
Verical | Open Loop Current Sensor AC/DC Current 5V 16-Pin SOIC W T/R RoHS: Compliant Min Qty: 96 Package Multiple: 1 Date Code: 2301 | Americas - 768 |
|
$3.1375 / $3.9250 | Buy Now |
|
|
Win Source Electronics | SENSOR CURRENT HALL 40A AC/DC | 7910 |
|
$4.0588 / $6.0882 | Buy Now |
Part Details for ACS723KMATR-40AB-T
ACS723KMATR-40AB-T CAD Models
ACS723KMATR-40AB-T Part Data Attributes
|
|
ACS723KMATR-40AB-T
Allegro MicroSystems LLC
Buy Now
Datasheet
|
Compare Parts:
ACS723KMATR-40AB-T
Allegro MicroSystems LLC
Analog Circuit,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Soic-16 | |
| Reach Compliance Code | Compliant | |
| Accuracy-Max (%) | 2% | |
| Body Breadth | 7.5 Mm | |
| Body Height | 2.35 Mm | |
| Body Length or Diameter | 10.3 Mm | |
| Mounting Feature | Surface Mount | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output | Analog | |
| Output Range | 0.5-4.5v | |
| Output Type | Analog Voltage | |
| Package Body Material | Plastic | |
| Package Equivalence Code | SOP16,.4 | |
| Package Shape/Style | Rectangular | |
| Sensors/Transducers Type | Current Sensor | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.5 V | |
| Surface Mount | Yes | |
| Technology | Bicmos |
ACS723KMATR-40AB-T Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the ACS723KMATR-40AB-T is -40°C to 150°C.
-
The sensitivity of the ACS723KMATR-40AB-T can be calculated using the formula: Sensitivity (mV/G) = (Vout / Vin) x (Rload / Rshunt), where Vout is the output voltage, Vin is the input voltage, Rload is the load resistance, and Rshunt is the shunt resistance.
-
The recommended PCB layout for the ACS723KMATR-40AB-T involves placing the device near the current-carrying conductor, using a solid ground plane, and minimizing the distance between the device and the current-carrying conductor.
-
To handle EMI with the ACS723KMATR-40AB-T, use a shielded cable, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead to filter out high-frequency noise.
-
The recommended power supply voltage for the ACS723KMATR-40AB-T is 5V, but it can operate from 4.5V to 5.5V.
