Part Details for ADG201AKNZ by Analog Devices Inc
Results Overview of ADG201AKNZ by Analog Devices Inc
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (5 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Education and Research
Internet of Things (IoT)
Audio and Video Systems
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Entertainment and Gaming
Communication and Networking
Automotive
ADG201AKNZ Information
ADG201AKNZ by Analog Devices Inc is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for ADG201AKNZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
49AK8337
|
Newark | Analog Sw, 4 Channel, Spst-No, Pdip-16, Ic Function:Analog Switch, Power Supply Type:Dual Supply, Supply Voltage Range:± 15V, Ic Case/Package:Pdip, No. Of Pins:16Pins, No. Of Channels:4Channels, On Resistance Typ:60Ohm Rohs Compliant: Yes |Analog Devices ADG201AKNZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 102 |
|
$3.9100 / $8.9700 | Buy Now |
|
DISTI #
505-ADG201AKNZ-ND
|
DigiKey | IC SWITCH SPST-NCX4 90OHM 16DIP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
821 In Stock |
|
$4.2019 / $7.1400 | Buy Now |
|
DISTI #
584-ADG201AKNZ
|
Mouser Electronics | Analog Switch ICs CMOS QUAD SPST SWITCH IC RoHS: Compliant | 512 |
|
$3.8000 / $8.7100 | Buy Now |
|
DISTI #
V36:1790_06218700
|
Arrow Electronics | Analog Switch Quad SPST 16-Pin PDIP N Tube COO: Philippines RoHS: Compliant Min Qty: 150 Package Multiple: 25 Lead time: 10 Weeks Date Code: 2224 | Americas - 5 |
|
$3.7160 / $4.2540 | Buy Now |
|
|
Analog Devices Inc | CMOS QUAD SPST SWITCH IC Package Multiple: 25 | 175 |
|
$3.0400 / $8.7100 | Buy Now |
|
DISTI #
90777710
|
Verical | Analog Switch Quad SPST 16-Pin PDIP N Tube RoHS: Compliant Min Qty: 5 Package Multiple: 5 Date Code: 2224 | Americas - 5 |
|
$3.7160 / $4.2540 | Buy Now |
|
|
Bristol Electronics | 26 |
|
RFQ | ||
|
|
Quest Components | IC,ANALOG SWITCH,QUAD,SPST,CMOS,DIP,16PIN,PLASTIC,LEAD FREE | 12 |
|
$16.0000 / $18.0000 | Buy Now |
|
DISTI #
V36:1790_06218700
|
Arrow Electronics | Analog Switch Quad SPST 16-Pin PDIP N Tube COO: Philippines RoHS: Compliant Min Qty: 150 Package Multiple: 25 Lead time: 10 Weeks Date Code: 2224 | Americas - 5 |
|
$3.7160 / $4.2540 | Buy Now |
|
DISTI #
90777710
|
Verical | Analog Switch Quad SPST 16-Pin PDIP N Tube COO: Philippines RoHS: Compliant Min Qty: 5 Package Multiple: 5 Date Code: 2224 | Americas - 5 |
|
$3.7160 / $4.2540 | Buy Now |
US Tariff Estimator: ADG201AKNZ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ADG201AKNZ
ADG201AKNZ CAD Models
-

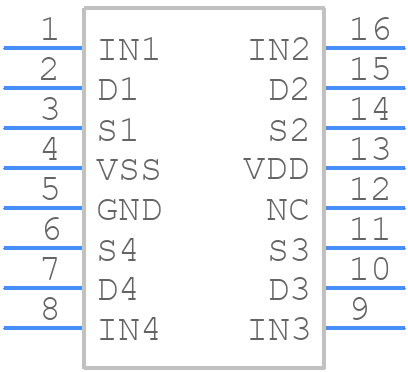

Part Symbol
-

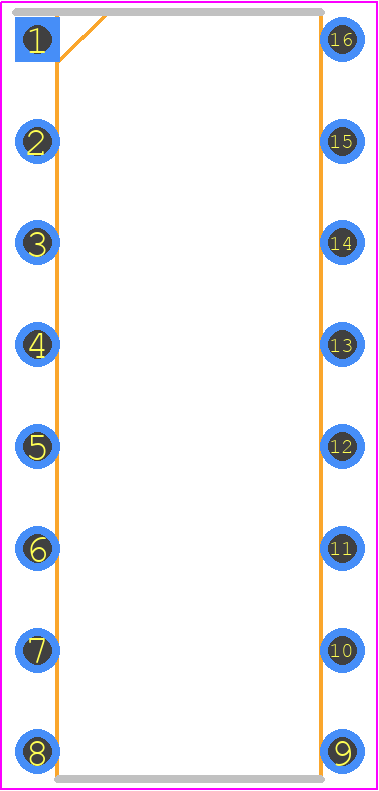

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ADG201AKNZ Part Data Attributes
|
|
ADG201AKNZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADG201AKNZ
Analog Devices Inc
SPST, 1 Func, 1 Channel, CMOS, PDIP16
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | DIP | |
| Package Description | Dip, Dip16,.3 | |
| Pin Count | 16 | |
| Manufacturer Package Code | N-16 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Analog IC - Other Type | Spst | |
| JESD-30 Code | R-PDIP-T16 | |
| JESD-609 Code | e3 | |
| Length | 19.055 Mm | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Normal Position | Nc | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Off-state Isolation-Nom | 80 Db | |
| On-state Resistance Match-Nom | 5 Ω | |
| On-state Resistance-Max (Ron) | 90 Ω | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output | Separate Output | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | DIP | |
| Package Equivalence Code | DIP16,.3 | |
| Package Shape | Rectangular | |
| Package Style | In-Line | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 4.32 Mm | |
| Signal Current-Max | 0.03 A | |
| Supply Current-Max (Isup) | 2 Ma | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | No | |
| Switch-off Time-Max | 250 Ns | |
| Switch-on Time-Max | 300 Ns | |
| Switching | Break-Before-Make | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Through-Hole | |
| Terminal Pitch | 2.54 Mm | |
| Terminal Position | Dual | |
| Width | 7.62 Mm |
Alternate Parts for ADG201AKNZ
This table gives cross-reference parts and alternative options found for ADG201AKNZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADG201AKNZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADG201ATQ/883B | Analog Devices Inc | Check for Price | SPST, 1 Func, 1 Channel, CMOS, CDIP16 | ADG201AKNZ vs ADG201ATQ/883B |
| ADG201AKN | Analog Devices Inc | Check for Price | SPST, 1 Func, 1 Channel, CMOS, PDIP16 | ADG201AKNZ vs ADG201AKN |
| ADG201AKN | Rochester Electronics LLC | Check for Price | SPST, 1 Func, 1 Channel, CMOS, PDIP16 | ADG201AKNZ vs ADG201AKN |
| ADG201ATQ | Analog Devices Inc | Check for Price | SPST, 1 Func, 1 Channel, CMOS, CDIP16 | ADG201AKNZ vs ADG201ATQ |
| ADG201ATQ/883B | Rochester Electronics LLC | Check for Price | 1-CHANNEL, SGL POLE SGL THROW SWITCH, CDIP16, CERDIP-16 | ADG201AKNZ vs ADG201ATQ/883B |
ADG201AKNZ Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply VCC before applying the analog signal. This ensures that the internal circuitry is properly biased before the analog signal is applied.
-
The ADG201AKNZ requires a 50Ω termination resistor to ensure proper signal integrity. This resistor should be placed as close to the device as possible.
-
The ADG201AKNZ can operate up to 500 MHz, but the actual operating frequency may be limited by the specific application and layout.
-
To minimize power consumption, ensure that the device is operated at the lowest possible supply voltage (VCC) and that the analog signal is properly terminated. Additionally, consider using a lower power mode or shutting down the device when not in use.
-
The recommended layout and routing for the ADG201AKNZ involves keeping the analog signal traces as short as possible, using a solid ground plane, and avoiding vias and right-angle bends in the signal traces.
