Part Details for ADP3333ARMZ-2.5-R7 by Analog Devices Inc
Results Overview of ADP3333ARMZ-2.5-R7 by Analog Devices Inc
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (2 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ADP3333ARMZ-2.5-R7 Information
ADP3333ARMZ-2.5-R7 by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ADP3333ARMZ-2.5-R7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
49AK8740
|
Newark | Ldo, Fixed, 2.5V, 0.3A, Msop-8, 85Deg C, Output Type:Fixed, Input Voltage Min:2.6V, Input Voltage Max:12V, No. Of Outputs:-, Output Voltage - Nom:2.5V, Output Voltage Min:-, Output Voltage Max:-, Polarity:-, Max Output Current:300Ma Rohs Compliant: Yes |Analog Devices ADP3333ARMZ-2.5-R7 RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 6 |
|
$1.3700 / $3.0300 | Buy Now |
|
DISTI #
ADP3333ARMZ-2.5-R7CT-ND
|
DigiKey | IC REG LINEAR 2.5V 300MA 8-MSOP Min Qty: 1 Lead time: 10 Weeks Container: Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
122 In Stock |
|
$1.3250 / $4.0500 | Buy Now |
|
DISTI #
584-ADP3333ARMZ2.5R7
|
Mouser Electronics | Linear Voltage Regulators 300mA fixed anyCAP LDO RoHS: Compliant | 1391 |
|
$1.3200 / $3.0300 | Buy Now |
|
DISTI #
V72:2272_06222008
|
Arrow Electronics | LDO Regulator Pos 2.5V 0.3A 8-Pin MSOP T/R COO: Taiwan RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 1813 Container: Cut Strips | Americas - 3 |
|
$1.3590 | Buy Now |
|
|
Analog Devices Inc | 300mA fixed anyCAP LDO Min Qty: 1 Package Multiple: 1000 | 5025 |
|
$1.3250 / $4.0500 | Buy Now |
|
DISTI #
26618498
|
Verical | LDO Regulator Pos 2.5V 0.3A 8-Pin MSOP T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 | Americas - 5000 |
|
$1.3111 | Buy Now |
|
|
Bristol Electronics | 427 |
|
RFQ | ||
|
|
Rochester Electronics | Fixed Positive LDO Regulator, 2.5V, 0.23V Dropout, BIPolar, PDSO8 RoHS: Compliant Status: Active Min Qty: 1 | 3277 |
|
$1.1100 / $1.3900 | Buy Now |
|
DISTI #
V72:2272_06222008
|
Arrow Electronics | LDO Regulator Pos 2.5V 0.3A 8-Pin MSOP T/R COO: Taiwan RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 1813 Container: Cut Strips | Americas - 3 |
|
$1.3590 | Buy Now |
|
DISTI #
26618498
|
Verical | LDO Regulator Pos 2.5V 0.3A 8-Pin MSOP T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 | Americas - 5000 |
|
$1.3111 | Buy Now |
US Tariff Estimator: ADP3333ARMZ-2.5-R7 by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ADP3333ARMZ-2.5-R7
ADP3333ARMZ-2.5-R7 CAD Models
-

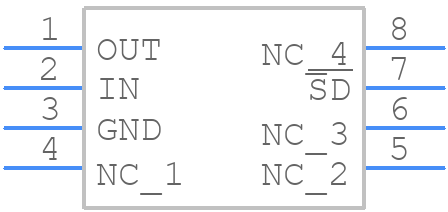

Part Symbol
-
Footprint
-

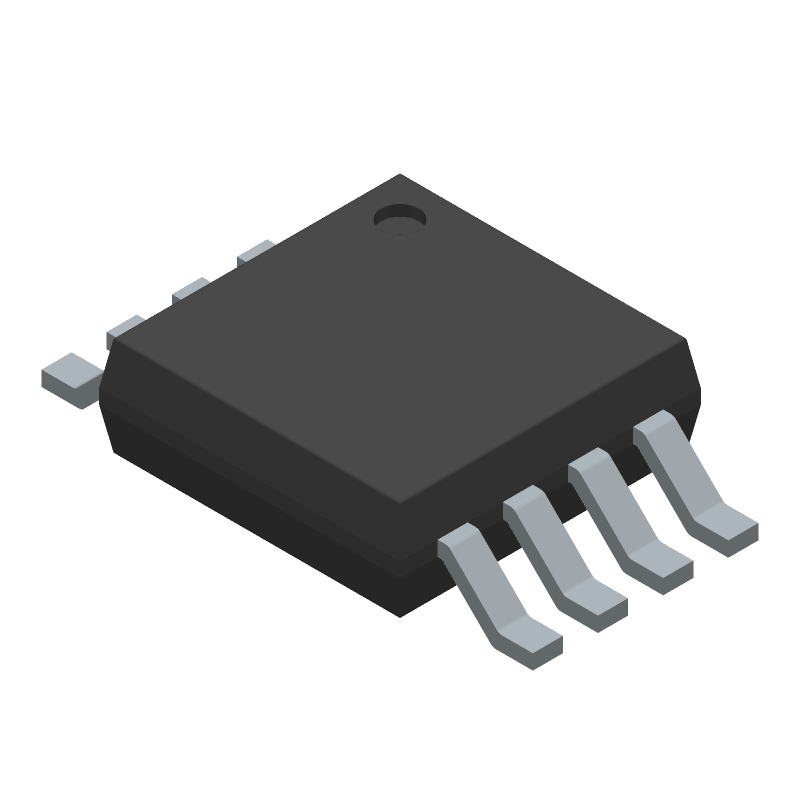

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ADP3333ARMZ-2.5-R7 Part Data Attributes
|
|
ADP3333ARMZ-2.5-R7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADP3333ARMZ-2.5-R7
Analog Devices Inc
Fixed Positive LDO Regulator, 2.5V, 0.23V Dropout, BIPolar, PDSO8
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Part Package Code | TSSOP | |
| Package Description | Rohs Compliant, Ultra Small, Mo-187a, Msop-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | RM-8 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Adjustability | Fixed | |
| Dropout Voltage1-Max | 0.23 V | |
| Dropout Voltage1-Nom | 0.14 V | |
| Input Voltage Absolute-Max | 16 V | |
| Input Voltage-Max | 12 V | |
| Input Voltage-Min | 2.6 V | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 3 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current1-Max | 0.3 A | |
| Output Voltage1-Max | 2.545 V | |
| Output Voltage1-Min | 2.455 V | |
| Output Voltage1-Nom | 2.5 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.19 | |
| Package Shape | Square | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Packing Method | Tr | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | Fixed Positive Single Output Ldo Regulator | |
| Seated Height-Max | 1.1 Mm | |
| Surface Mount | Yes | |
| Technology | Bipolar | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Voltage Tolerance-Max | 1.8% | |
| Width | 3 Mm |
Alternate Parts for ADP3333ARMZ-2.5-R7
This table gives cross-reference parts and alternative options found for ADP3333ARMZ-2.5-R7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADP3333ARMZ-2.5-R7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADP3333ARM-2.5-RL | Analog Devices Inc | Check for Price | Fixed Positive LDO Regulator, 2.5V, 0.23V Dropout, BIPolar, PDSO8 | ADP3333ARMZ-2.5-R7 vs ADP3333ARM-2.5-RL |
| ADP3333ARM-2.5 | Analog Devices Inc | Check for Price | Fixed Positive LDO Regulator, 2.5V, 0.23V Dropout, BIPolar, PDSO8 | ADP3333ARMZ-2.5-R7 vs ADP3333ARM-2.5 |
ADP3333ARMZ-2.5-R7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the ADP3333 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
-
To ensure stability, ensure that the output capacitor is within the recommended range, the input voltage is within the specified range, and the device is operated within the recommended temperature range. Also, avoid using long input traces and minimize the distance between the input capacitor and the device.
-
The ADP3333 can deliver up to 3A of output current, but this is dependent on the input voltage, output voltage, and ambient temperature. Refer to the datasheet for more information on output current capabilities.
-
The ADP3333 is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. Ensure that the device is operated within the recommended temperature range for optimal performance and reliability.
-
Use a TVS (transient voltage suppressor) diode or a voltage clamp circuit to protect the ADP3333 from input voltage transients and surges. This will help prevent damage to the device and ensure reliable operation.
