Part Details for ADS5292IPFP by Texas Instruments
Results Overview of ADS5292IPFP by Texas Instruments
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (4 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Industrial Automation
Financial Technology (Fintech)
Electronic Manufacturing
ADS5292IPFP Information
ADS5292IPFP by Texas Instruments is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for ADS5292IPFP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-ADS5292IPFP-ND
|
DigiKey | IC ADC 12BIT 80-HTQFP Min Qty: 2 Lead time: 18 Weeks Container: Bulk MARKETPLACE PRODUCT |
1321 In Stock |
|
$141.0500 | Buy Now |
|
DISTI #
296-29986-5-ND
|
DigiKey | IC ADC 12BIT 80-HTQFP Min Qty: 2 Lead time: 18 Weeks Container: Tube | Temporarily Out of Stock |
|
$144.9756 | Buy Now |
|
DISTI #
595-ADS5292IPFP
|
Mouser Electronics | Analog to Digital Converters - ADC Octal Ch 12B 80MSPS High-SNR/Low-Pwr ADC A 595-ADS5292IPFPR RoHS: Compliant | 87 |
|
$121.3000 / $155.8500 | Buy Now |
|
DISTI #
86275706
|
Verical | 8-Channel Octal ADC Pipelined 80Msps 12-bit Serial 80-Pin HTQFP EP Tray RoHS: Compliant Min Qty: 25 Package Multiple: 1 Date Code: 1301 | Americas - 470 |
|
$112.8375 / $141.0500 | Buy Now |
|
DISTI #
86275012
|
Verical | 8-Channel Octal ADC Pipelined 80Msps 12-bit Serial 80-Pin HTQFP EP Tray RoHS: Compliant Min Qty: 25 Package Multiple: 1 Date Code: 1401 | Americas - 470 |
|
$112.8375 / $141.0500 | Buy Now |
|
DISTI #
86275603
|
Verical | 8-Channel Octal ADC Pipelined 80Msps 12-bit Serial 80-Pin HTQFP EP Tray RoHS: Compliant Min Qty: 25 Package Multiple: 1 Date Code: 1101 | Americas - 242 |
|
$112.8375 / $141.0500 | Buy Now |
|
|
Rochester Electronics | ADC, Proprietary Method, 12-Bit, 1 Func, 8 Channel, Parallel, Word Access, CMOS, PQFP80 RoHS: Compliant Status: Active Min Qty: 1 | 1321 |
|
$90.2700 / $112.8400 | Buy Now |
|
|
Win Source Electronics | IC ADC 12BIT PIPELINED 80HTQFP / 12 Bit Analog to Digital Converter 8 Input 8 Pipelined 80-HTQFP (12x12) | 175 |
|
$111.7612 / $128.9553 | Buy Now |
US Tariff Estimator: ADS5292IPFP by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ADS5292IPFP
ADS5292IPFP CAD Models
-

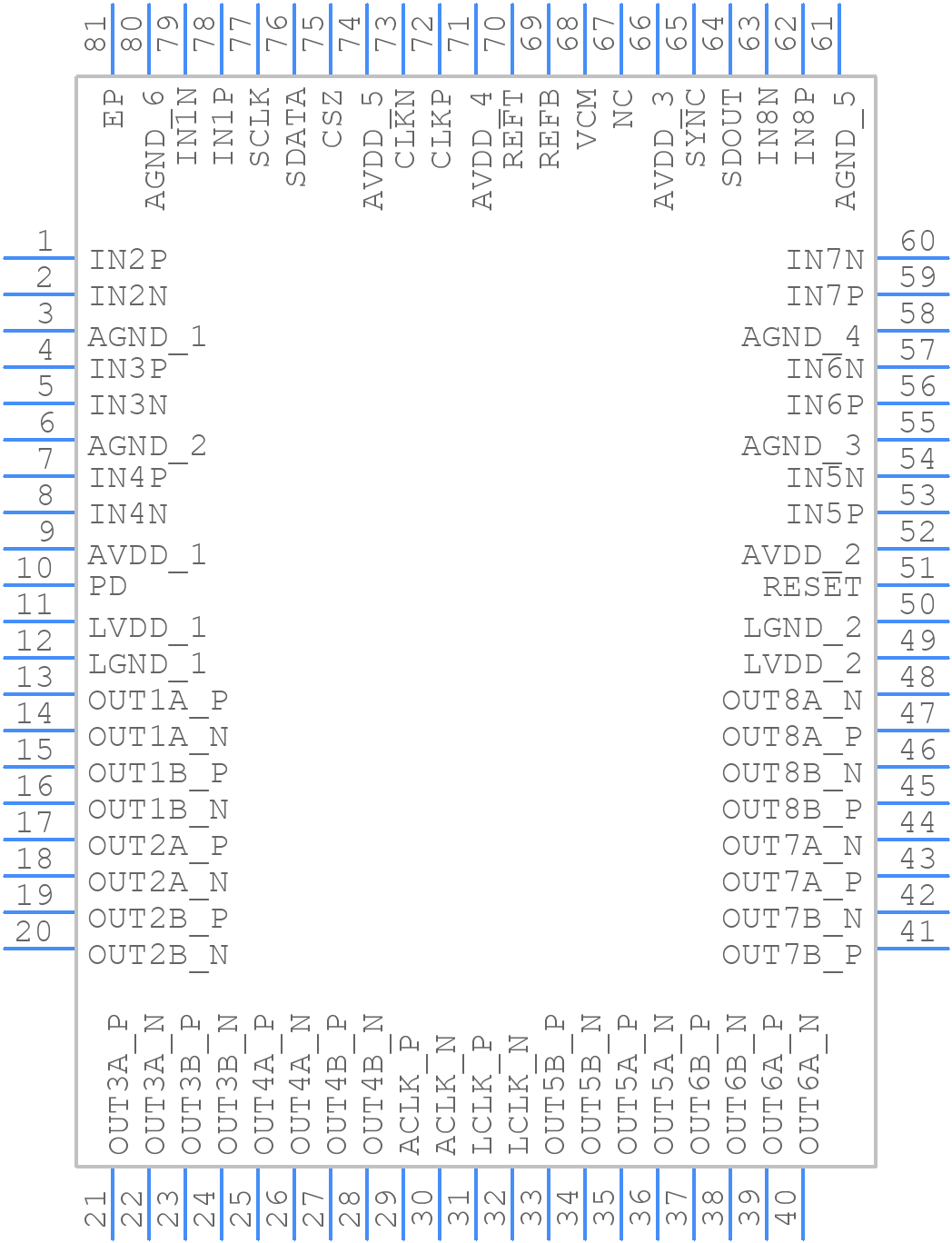

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ADS5292IPFP Part Data Attributes
|
|
ADS5292IPFP
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
ADS5292IPFP
Texas Instruments
ADC, Proprietary Method, 12-Bit, 1 Func, 8 Channel, Parallel, Word Access, CMOS, PQFP80
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | QFP | |
| Package Description | Htfqfp-80 | |
| Pin Count | 80 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.90 | |
| Additional Feature | Peak-To-Peak Input Voltage Range(V) : 2 | |
| Analog Input Voltage-Max | 2 V | |
| Analog Input Voltage-Min | -2 V | |
| Converter Type | Adc, Proprietary Method | |
| JESD-30 Code | S-PQFP-G80 | |
| JESD-609 Code | e4 | |
| Length | 12 Mm | |
| Linearity Error-Max (EL) | 0.0244% | |
| Moisture Sensitivity Level | 3 | |
| Number of Analog In Channels | 8 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 80 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | OFFSET BINARY, 2S COMPLEMENT BINARY | |
| Output Format | Parallel, Word | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HTFQFP | |
| Package Equivalence Code | TQFP80,.55SQ | |
| Package Shape | Square | |
| Package Style | Flatpack, Heat Sink/Slug, Thin Profile, Fine Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 80 Mhz | |
| Sample and Hold / Track and Hold | Sample | |
| Seated Height-Max | 1.2 Mm | |
| Supply Current-Max | 206 Ma | |
| Supply Voltage-Nom | 1.8 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Quad | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 12 Mm |
Alternate Parts for ADS5292IPFP
This table gives cross-reference parts and alternative options found for ADS5292IPFP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADS5292IPFP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADS5294IPFPR | Texas Instruments | $21.8700 | ADC, Proprietary Method, 14-Bit, 1 Func, 8 Channel, Serial Access, CMOS, PQFP80 | ADS5292IPFP vs ADS5294IPFPR |
| ADS5292IPFPR | Texas Instruments | $61.2694 | ADC, Proprietary Method, 12-Bit, 1 Func, 8 Channel, Parallel, Word Access, CMOS, PQFP80 | ADS5292IPFP vs ADS5292IPFPR |
| ADS5294IPFPT | Texas Instruments | $74.7495 | ADC, Proprietary Method, 14-Bit, 1 Func, 8 Channel, Serial Access, CMOS, PQFP80 | ADS5292IPFP vs ADS5294IPFPT |
| ADS5294IPFP | Texas Instruments | $75.2377 | ADC, Proprietary Method, 14-Bit, 1 Func, 8 Channel, Serial Access, CMOS, PQFP80 | ADS5292IPFP vs ADS5294IPFP |
ADS5292IPFP Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep analog and digital signals separate, and use a common mode filter to reduce noise.
-
Use a low-jitter clock source (<100 ps) and ensure the clock signal is properly terminated. A clock frequency of 20-40 MHz is recommended for optimal performance.
-
The recommended input signal range is 0.5 V to 2.5 V, with a maximum input voltage of 3.3 V. Ensure the input signal is within this range to avoid saturation and ensure accurate conversions.
-
The ADS5292IPFP outputs 14-bit data in two's complement format. Ensure your system can handle this format, and consider using a FIFO or buffer to handle the high-speed data output.
-
The ADS5292IPFP has a typical power consumption of 350 mW. To reduce power consumption, consider using the ADC's power-down mode, reducing the clock frequency, or using a lower supply voltage.
