ADS8317IBDRBR Information
ADS8317IBDRBR by Texas Instruments is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| ADS8317IBDRBR | Texas Instruments | 16-Bit, Pseudo-Bipolar, Fully Diff Input, 250kSPS Serial Out, 2.7V-to-5.5V Micropower Sampling ADC 8-SON -40 to 85 |
Price & Stock for ADS8317IBDRBR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
ADS8317IBDRBR-ND
|
DigiKey | IC ADC 16BIT 8-SON Min Qty: 3000 Container: Tape & Reel |
0 Tape & Reel |
|
$13.2009 | Buy Now |
|
DISTI #
86275853
|
Verical | 1-Channel Single ADC SAR 250ksps 16-bit Serial 8-Pin VSON EP T/R RoHS: Compliant Min Qty: 27 Package Multiple: 1 | Americas - 17700 |
|
$11.2750 / $14.1000 | Buy Now |
|
DISTI #
86275771
|
Verical | 1-Channel Single ADC SAR 250ksps 16-bit Serial 8-Pin VSON EP T/R RoHS: Compliant Min Qty: 27 Package Multiple: 1 Date Code: 1301 | Americas - 6000 |
|
$11.2750 / $14.1000 | Buy Now |
|
DISTI #
86275422
|
Verical | 1-Channel Single ADC SAR 250ksps 16-bit Serial 8-Pin VSON EP T/R RoHS: Compliant Min Qty: 27 Package Multiple: 1 Date Code: 1201 | Americas - 1500 |
|
$11.2750 / $14.1000 | Buy Now |
|
DISTI #
595-ADS8317IBDRBR
|
Mouser Electronics | Analog to Digital Converters - ADC 16B Pseudo Bipolar A 595-ADS8317IBDRBT A A 595-ADS8317IBDRBT RoHS: Compliant | 0 |
|
$13.2100 | Order Now |
|
|
Rochester Electronics | IC ADC 1 CONV 16Bits SAR 3-Wire Serial, SPI 8-SON T/R RoHS: Compliant Status: Active Min Qty: 1 | 25200 |
|
$9.0200 / $11.2800 | Buy Now |
US Tariff Estimator: ADS8317IBDRBR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
ADS8317IBDRBR CAD Models
-
Part Symbol
-
Footprint
-

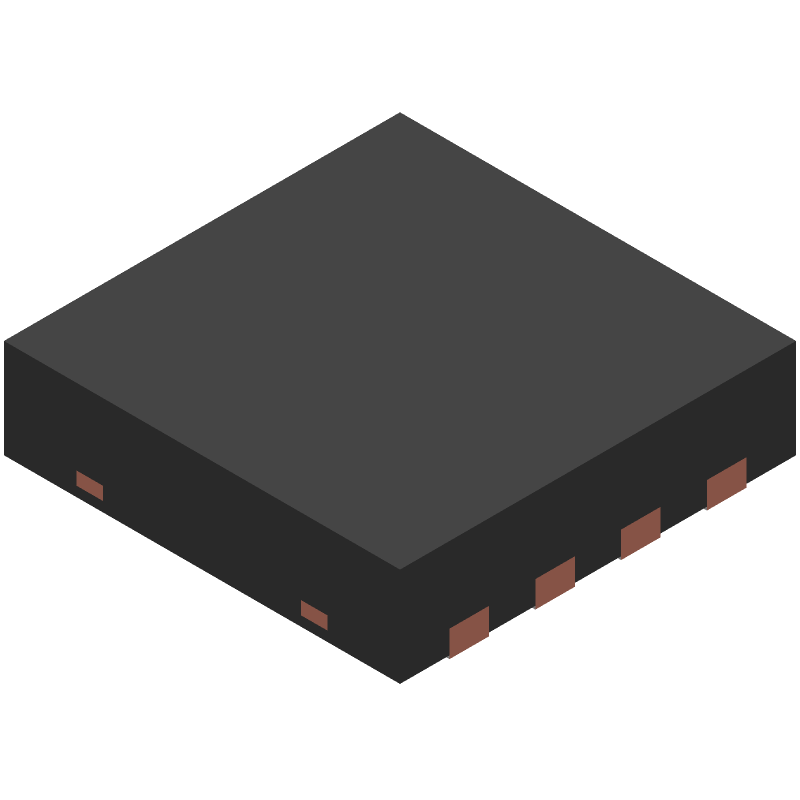

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ADS8317IBDRBR Part Data Attributes
|
|
ADS8317IBDRBR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
ADS8317IBDRBR
Texas Instruments
ADC, Successive Approximation, 16-Bit, 1 Func, 1 Channel, Serial Access, CMOS, PDSO8
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SON | |
| Package Description | Hvson-8 | |
| Pin Count | 8 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.30 | |
| Analog Input Voltage-Max | 2.5 V | |
| Analog Input Voltage-Min | 2.7 V | |
| Conversion Time-Max | 666.7 µS | |
| Converter Type | Adc, Successive Approximation | |
| JESD-30 Code | S-PDSO-N8 | |
| JESD-609 Code | e4 | |
| Length | 3 Mm | |
| Linearity Error-Max (EL) | 0.0023% | |
| Moisture Sensitivity Level | 2 | |
| Number of Analog In Channels | 1 | |
| Number of Bits | 16 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | 2S COMPLEMENT BINARY | |
| Output Format | Serial | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC8,.12,25 | |
| Package Shape | Square | |
| Package Style | Small Outline, Heat Sink/Slug, Very Thin Profile | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.25 Mhz | |
| Sample and Hold / Track and Hold | Sample | |
| Seated Height-Max | 1 Mm | |
| Supply Current-Max | 3 Ma | |
| Supply Voltage-Min | 2.7 V | |
| Supply Voltage-Nom | 2.7 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | No Lead | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 Mm |
