ADSP-BF531SBSTZ400 Information
ADSP-BF531SBSTZ400 by Analog Devices Inc is a Digital Signal Processor.
Digital Signal Processors are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for ADSP-BF531SBSTZ400
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
505-ADSP-BF531SBSTZ400-ND
|
DigiKey | IC DSP CTLR 16BIT 400MHZ 176LQFP Min Qty: 1 Lead time: 13 Weeks Container: Tray | Temporarily Out of Stock |
|
$16.0234 / $23.8700 | Buy Now |
|
DISTI #
584-ASPBF531SBSTZ400
|
Mouser Electronics | Digital Signal Processors & Controllers - DSP, DSC Dual MAC16-bit400MHz ,52KB SRAM RoHS: Compliant | 0 |
|
$16.4000 / $23.8700 | Order Now |
|
|
Analog Devices Inc | Dual MAC16-bit400MHz ,52KB SRA Package Multiple: 40 | 0 |
|
$19.8730 / $23.8700 | Buy Now |
|
|
Vyrian | Active | 7991 |
|
RFQ | |
|
|
Win Source Electronics | IC DSP CTLR 16BIT 400MHZ 176LQFP | 3484 |
|
$9.7624 / $14.6436 | Buy Now |
US Tariff Estimator: ADSP-BF531SBSTZ400 by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ADSP-BF531SBSTZ400
ADSP-BF531SBSTZ400 CAD Models
-

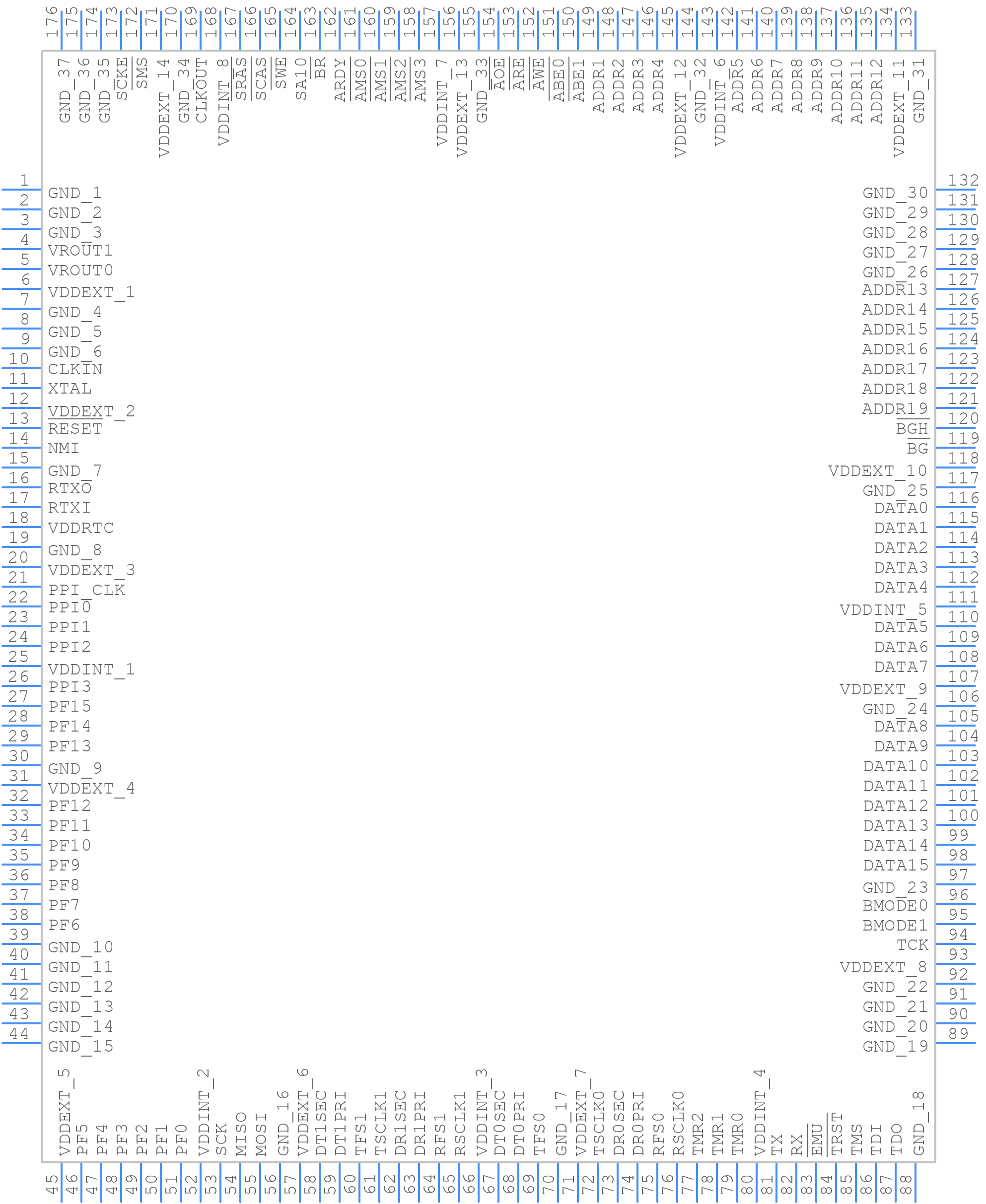

Part Symbol
-

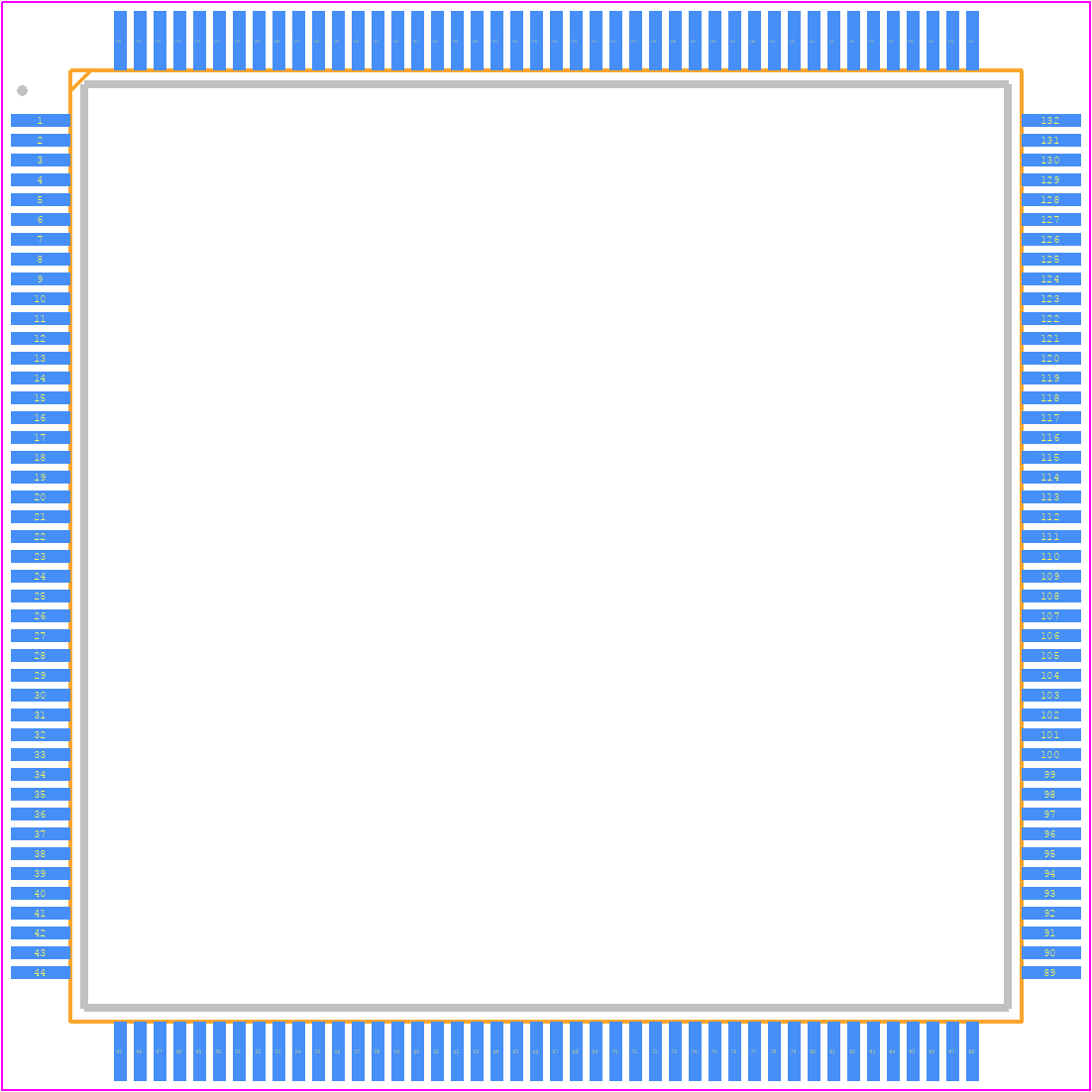

Footprint
-
