ADUCM410BCBZ-RL7 Information
ADUCM410BCBZ-RL7 by Analog Devices Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for ADUCM410BCBZ-RL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
49AK8949
|
Newark | Arm Mcu, 240Mips, 46I/O, Wlcsp-64, Product Range:Aduc Family Aducm4 Series Microcontrollers, Device Core:-, Data Bus Width:32 Bit, Operating Frequency Max:-, Program Memory Size:512Kb, No. Of Pins:64Pins, Ic Case/Package:Wlcsp Rohs Compliant: Yes |Analog Devices ADUCM410BCBZ-RL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$24.5500 / $34.8900 | Buy Now |
|
DISTI #
505-ADUCM410BCBZ-RL7CT-ND
|
DigiKey | IC MCU 32BIT 1MB FLASH 64WLCSP Min Qty: 1 Lead time: 19 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
493 In Stock |
|
$23.5375 / $34.8900 | Buy Now |
|
DISTI #
584-ADUCM410BCBZ-RL7
|
Mouser Electronics | ARM Microcontrollers - MCU Integrated optical controller w/ MCU, AD RoHS: Compliant | 1345 |
|
$23.4000 / $34.8900 | Buy Now |
|
|
Bristol Electronics | 1500 |
|
RFQ | ||
|
|
Ameya Holding Limited | 2603 |
|
RFQ | ||
|
DISTI #
ADUCM410BCBZRL7
|
Richardson RFPD | MICROCONTROLLER IC RoHS: Compliant Min Qty: 1500 | 0 |
|
$24.6200 | Buy Now |
US Tariff Estimator: ADUCM410BCBZ-RL7 by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ADUCM410BCBZ-RL7
ADUCM410BCBZ-RL7 CAD Models
-

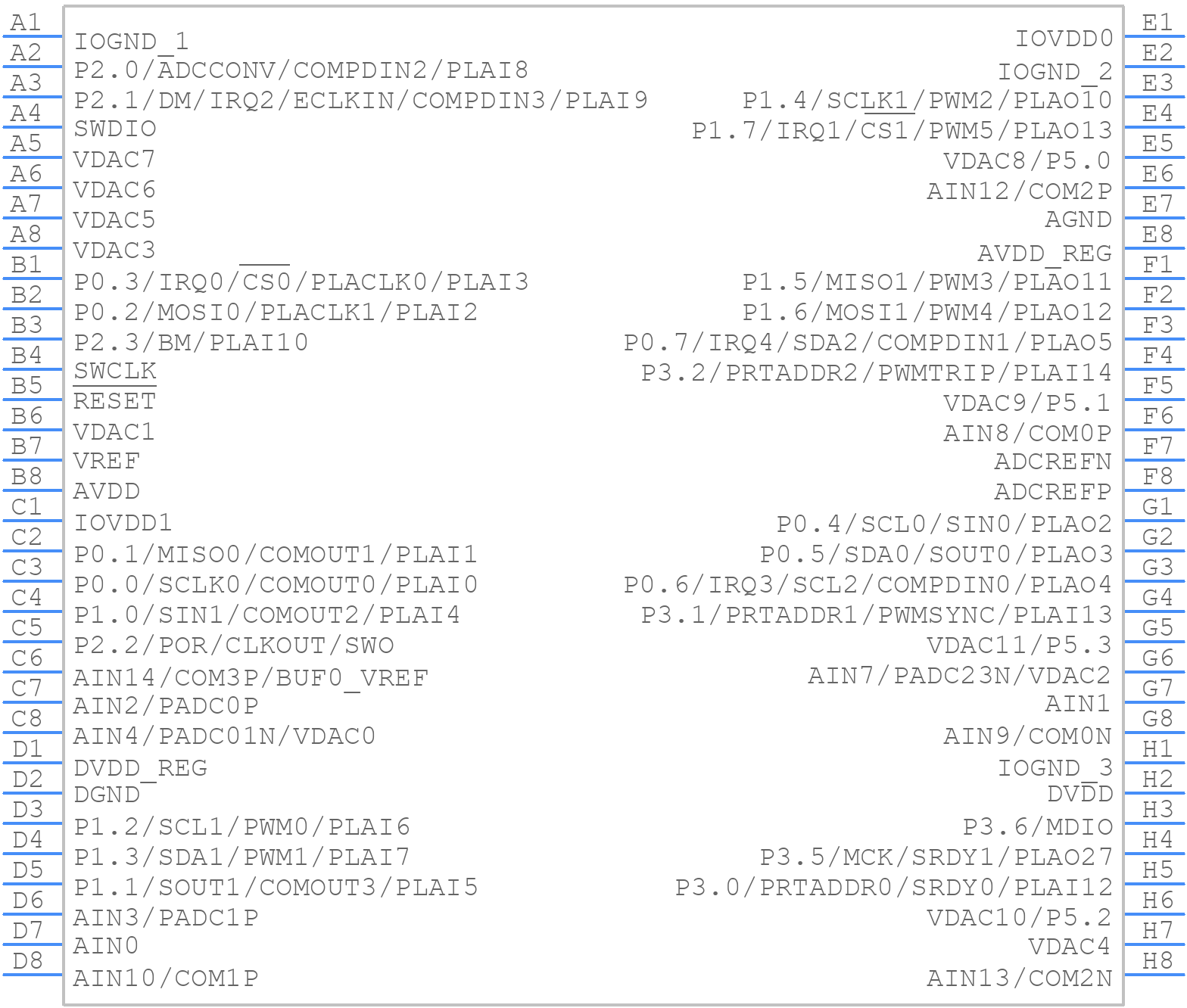

Part Symbol
-
