AMPMDFB-20.0000T by: Abracon Corporation

MEMS OSC XO 20.0000MHZ SMD

Part Details for AMPMDFB-20.0000T by Abracon Corporation

Results Overview of AMPMDFB-20.0000T by Abracon Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Education and Research Industrial Automation Audio and Video Systems Electronic Manufacturing

AMPMDFB-20.0000T Information

AMPMDFB-20.0000T by Abracon Corporation is an XO.
XO are under the broader part category of Oscillators.

Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
10018783-10000TLF Amphenol Communications Solutions PCI Express® GEN 3 Card Edge, Storage and Server Connector, Vertical, Through Hole, x1, 36 Positions, 1.00mm (0.039in) Pitch
10069690-10000TLF Amphenol Communications Solutions PCI Express® GEN 3 Card Edge, Storage and Server Connector, Straddle Mount, x1, 36 Positions, 1.00mm (0.039in) Pitch
10069690-00000TLF Amphenol Communications Solutions PCI Express® GEN 3 Card Edge, Storage and Server Connector, Straddle Mount, x1, 36 Positions, 1.00mm (0.039in) Pitch

Price & Stock for AMPMDFB-20.0000T

Part # Distributor Description Stock Price Buy
DISTI # 69AC2342
Newark Mems Osc, 20Mhz, Smd, 2.5Mm X 2Mm, Frequency Nom:20Mhz, Oscillator Case:Smd, 2.5Mm X 2Mm, Frequency Stability +/-:25Ppm, Supply Voltage Nom:2.5V, Product Range:Ampm Series, Oscillator Output Compatibility:-, Operating Temperature Rohs Compliant: Yes |Abracon AMPMDFB-20.0000T RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 722
  • 1 $3.1200
  • 10 $2.7400
  • 25 $2.6300
  • 50 $2.5100
  • 100 $2.4200
  • 250 $2.2900
$2.2900 / $3.1200 Buy Now
DISTI # 535-14547-2-ND
DigiKey MEMS OSC XO 20.0000MHZ SMD Lead time: 14 Weeks Container: Tape & Reel (TR) Limited Supply - Call
Buy Now
DISTI # AMPMDFB-20.0000T
Avnet Americas - Tape and Reel (Alt: AMPMDFB-20.0000T) COO: Thailand RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days Container: Tape & Reel 1000
  • 1,000 $1.7556
  • 5,000 $1.4730
  • 10,000 $1.4239
  • 20,000 $1.3748
  • 40,000 $1.3257
$1.3257 / $1.7556 Buy Now
DISTI # 67AC9575
Avnet Americas - Product that comes on tape, but is not reeled (Alt: 67AC9575) COO: Thailand RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Container: Ammo Pack 0
RFQ
DISTI # 815-AMPMDFB-20.0000T
Mouser Electronics Standard Clock Oscillators Oscillator 2520 4-SMD 20MHz +/-25ppm -40C - 85C CMOS 1.71V - 3.63V RoHS: Compliant 0
  • 1 $2.6500
  • 10 $2.2800
  • 50 $2.0600
  • 100 $1.9700
  • 250 $1.8200
  • 500 $1.7800
  • 1,000 $1.7000
  • 2,000 $1.5900
  • 5,000 $1.5400
$1.5400 / $2.6500 Order Now
Onlinecomponents.com MEMS Oscillator XO 20.0000MHz SMD COO: Thailand RoHS: Compliant 0
  • 250 $2.9600
  • 500 $1.8200
  • 750 $1.4400
  • 1,000 $1.4200
$1.4200 / $2.9600 Buy Now
DISTI # AMPMDFB-20.0000T
Avnet Abacus - Tape and Reel (Alt: AMPMDFB-20.0000T) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 14 Weeks, 0 Days Container: Tape & Reel Abacus - 0
Buy Now

Part Details for AMPMDFB-20.0000T

AMPMDFB-20.0000T CAD Models

  • Part Symbol

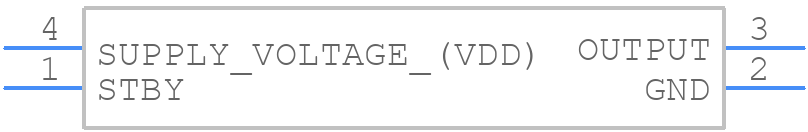

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

AMPMDFB-20.0000T Part Data Attributes

Parametric Data
AMPMDFB-20.0000T Abracon Corporation
Buy Now Datasheet
Compare Parts:
AMPMDFB-20.0000T Abracon Corporation MEMS OSC XO 20.0000MHZ SMD
Rohs Code Yes
Part Life Cycle Code Active
Package Description Vlga, 4 Pin
Reach Compliance Code Compliant
Additional Feature Standby; Enable/Disable Function
Fall Time-Max 3.5 Ns
Frequency Adjustment-Mechanical No
Frequency Stability 25%
JESD-609 Code e4
Mounting Feature Surface Mount
Number of Terminals 4
Operating Frequency-Nom 20 Mhz
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Oscillator Type Cmos
Output Load 5 Pf
Package Equivalence Code LCC4,.08X.1,65/49
Physical Dimension 2.5mm X 2.0mm X 0.84mm
Rise Time-Max 3.5 Ns
Supply Voltage-Max 3.63 V
Supply Voltage-Min 1.71 V
Surface Mount Yes
Symmetry-Max 55/45 %
Terminal Finish Nickel/Gold (Ni/Au)
