AMS1117-3.3 Information
AMS1117-3.3 by Advanced Monolithic Systems Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
US Tariff Estimator: AMS1117-3.3 by Advanced Monolithic Systems Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for AMS1117-3.3
AMS1117-3.3 CAD Models
-

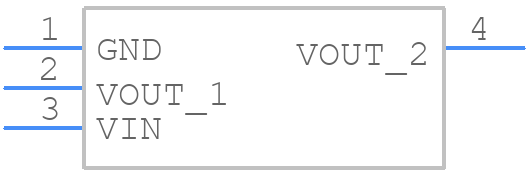

Part Symbol
-

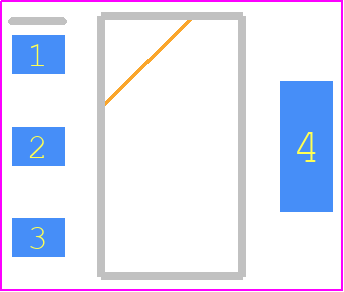

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
AMS1117-3.3 Part Data Attributes
|
|
AMS1117-3.3
Advanced Monolithic Systems Inc
Buy Now
Datasheet
|
Compare Parts:
AMS1117-3.3
Advanced Monolithic Systems Inc
Fixed Positive LDO Regulator, 3.3V, 1.3V Dropout, PDSO3
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Contact Manufacturer | |
| Package Description | Sot-223, 3 Pin | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Dropout Voltage1-Max | 1.3 V | |
| Dropout Voltage1-Nom | 1.1 V | |
| JESD-30 Code | R-PDSO-G3 | |
| Length | 6.505 Mm | |
| Load Regulation-Max | 0.025% | |
| Number of Functions | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 1 A | |
| Output Voltage1-Max | 3.399 V | |
| Output Voltage1-Min | 3.201 V | |
| Output Voltage1-Nom | 3.3 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOT-223 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Regulator Type | Fixed Positive Single Output Ldo Regulator | |
| Seated Height-Max | 1.8 Mm | |
| Surface Mount | Yes | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 2.29 Mm | |
| Terminal Position | Dual | |
| Voltage Tolerance-Max | 3% | |
| Width | 3.505 Mm |
AMS1117-3.3 Frequently Asked Questions (FAQ)
-
The maximum input voltage is 15V, but it's recommended to keep it below 12V for reliable operation.
-
The AMS1117-3.3 is rated for operation up to 125°C, but thermal derating is required above 85°C. Ensure proper heat sinking and thermal management to prevent overheating.
-
Use a minimum output capacitance of 10uF with an ESR of 0.5Ω to 5Ω to ensure stability. Additionally, keep the input and output capacitors close to the regulator to minimize parasitic inductance.
-
The minimum input voltage required for proper regulation is 4.5V, but it's recommended to keep it above 5V for optimal performance.
-
Yes, the AMS1117-3.3 is suitable for battery-powered devices. However, consider the quiescent current (IQ) of 5mA and the dropout voltage (around 1.3V) when designing your power management system.
