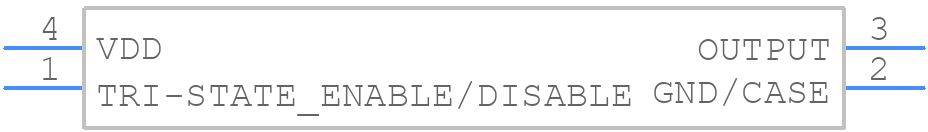

Part Symbol
-

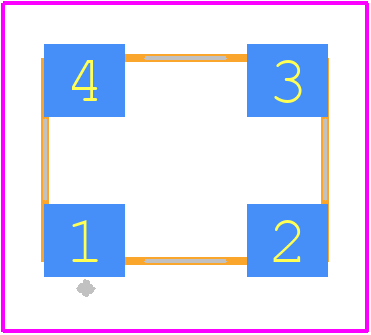

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ASV-50.000MHZ-EJ-T by Abracon Corporation
Results Overview of ASV-50.000MHZ-EJ-T by Abracon Corporation
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (1 replacement)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (6 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Aerospace and Defense
Agriculture Technology
Robotics and Drones
ASV-50.000MHZ-EJ-T Information
ASV-50.000MHZ-EJ-T by Abracon Corporation is an XO.
XO are under the broader part category of Oscillators.
Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.
Price & Stock for ASV-50.000MHZ-EJ-T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
89AH0848
|
Newark | Oscillator, 50Mhz, Hcmos, 7Mm X 5.08Mm Rohs Compliant: Yes |Abracon ASV-50.000MHZ-EJ-T RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 1 Container: Reel | 1000 |
|
$0.9770 / $1.0500 | Buy Now |
|
DISTI #
13J1973
|
Newark | Oscillator, 50Mhz, 7 X 5Mm, Hcmos, Frequency Nom:50Mhz, Frequency Stability +/-:20Ppm, Oscillator Case:Smd, 7Mm X 5Mm, Supply Voltage Nom:3.3V, Product Range:Asv Series, Operating Temperature Min:-20°C, Frequency:50Mhz Rohs Compliant: Yes |Abracon ASV-50.000MHZ-EJ-T RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 8 |
|
$1.4900 / $2.6400 | Buy Now |
|
DISTI #
13J1973
|
Avnet Americas | - Product that comes on tape, but is not reeled (Alt: 13J1973) COO: Korea (the Republic of) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack | 14 Partner Stock |
|
$1.0900 / $1.4900 | Buy Now |
|
DISTI #
ASV-50.000MHZ-EJ-T
|
Avnet Americas | - Tape and Reel (Alt: ASV-50.000MHZ-EJ-T) COO: Korea (the Republic of) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
$0.6055 / $0.8225 | Buy Now |
|
DISTI #
73885296
|
RS | CRYSTAL, 3.3VDC, CLOCK OSCILLATOR, 50.0000MHZ HCMOS SMD, ASV SERIES Min Qty: 1000 Package Multiple: 1 Lead time: 26 Weeks, 0 Days Container: Bulk | 0 |
|
$0.8900 / $1.0800 | RFQ |
|
|
Bristol Electronics | 965 |
|
RFQ | ||
|
DISTI #
ASV-50.000MHZ-EJ-T
|
IBS Electronics | OSCILLATOR XO 50MHZ 20PPM 15PF (STABILITY) HCMOS/TTL 60% 3.3V 4-PIN CSMD T/R Min Qty: 150 Package Multiple: 1 | 2035 |
|
$0.9500 / $1.1242 | Buy Now |
|
DISTI #
ASV-50.000MHZ-EJ-T
|
Avnet Abacus | - Tape and Reel (Alt: ASV-50.000MHZ-EJ-T) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days Container: Reel | Abacus - 7000 |
|
Buy Now | |
|
DISTI #
ASV-50.000MHZ-EJ-T
|
Avnet Asia | (Alt: ASV-50.000MHZ-EJ-T) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks, 0 Days | 5000 |
|
$0.7059 / $0.8571 | Buy Now |
|
DISTI #
ASV-50.000MHZ-EJ-T
|
Chip One Stop | Oscillator XO 50MHz 20ppm 15pF (Stability) HCMOS/TTL 60% 3.3V 4-Pin CSMD T/R RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 918 |
|
$0.7620 / $1.3100 | Buy Now |
Part Details for ASV-50.000MHZ-EJ-T
ASV-50.000MHZ-EJ-T CAD Models
ASV-50.000MHZ-EJ-T Part Data Attributes
|
|
ASV-50.000MHZ-EJ-T
Abracon Corporation
Buy Now
Datasheet
|
Compare Parts:
ASV-50.000MHZ-EJ-T
Abracon Corporation
XTAL OSC XO 50.0000MHZ HCMOS SMD
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Rohs Compliant, Smd, 4 Pin | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 10 Weeks | |
| Additional Feature | Tri-State; Enable/Disable Function; Tape And Reel | |
| Fall Time-Max | 4 Ns | |
| Frequency Adjustment-Mechanical | No | |
| Frequency Stability | 20% | |
| JESD-609 Code | e4 | |
| Mounting Feature | Surface Mount | |
| Number of Terminals | 4 | |
| Operating Frequency-Max | 150 Mhz | |
| Operating Frequency-Min | 1 Mhz | |
| Operating Frequency-Nom | 50 Mhz | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -20 °C | |
| Oscillator Type | Hcmos/Ttl | |
| Output Load | 10 Ttl, 15 Pf | |
| Package Body Material | Plastic/Epoxy | |
| Package Equivalence Code | DILCC4,.2,200 | |
| Physical Dimension | 7.0mm X 5.08mm X 1.8mm | |
| Qualification Status | Not Qualified | |
| Rise Time-Max | 4 Ns | |
| Supply Current-Max | 45 Ma | |
| Supply Voltage-Max | 3.63 V | |
| Supply Voltage-Min | 2.97 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | Yes | |
| Symmetry-Max | 40/60 % | |
| Terminal Finish | Gold (Au) - With Nickel (Ni) Barrier |
Alternate Parts for ASV-50.000MHZ-EJ-T
This table gives cross-reference parts and alternative options found for ASV-50.000MHZ-EJ-T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ASV-50.000MHZ-EJ-T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ASV-50.000MHZ-D-T | Abracon Corporation | Check for Price | HCMOS/TTL Output Clock Oscillator, 50MHz Nom, ROHS COMPLIANT, SMD, 4 PIN | ASV-50.000MHZ-EJ-T vs ASV-50.000MHZ-D-T |
