AT90USB647-MU by:
Microchip Technology Inc

16 MHz, TQFP, Ind Temp, Green, OTG

Part Details for AT90USB647-MU by Microchip Technology Inc

Results Overview of AT90USB647-MU by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Computing and Data Storage

AT90USB647-MU Information

AT90USB647-MU by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for AT90USB647-MU

Part # Distributor Description Stock Price Buy
DISTI # 68T5098
Newark 16 Mhz, Tqfp, Ind Temp, Green, Otg 64 Vqfn 9X9X1Mm Tray Rohs Compliant: Yes |Microchip AT90USB647-MU RoHS: Compliant Min Qty: 260 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $7.6500
$7.6500 Buy Now
DISTI # AT90USB647-MU-ND
DigiKey IC MCU 8BIT 64KB FLASH 64QFN Min Qty: 1 Lead time: 7 Weeks Container: Tray Temporarily Out of Stock
  • 1 $8.9500
  • 25 $8.2100
  • 100 $7.4200
$7.4200 / $8.9500 Buy Now
DISTI # AT90USB647-MU
Avnet Americas MCU 8-bit AT90 AVR RISC 64KB Flash 3.3V/5V 64-Pin QFN EP - Trays (Alt: AT90USB647-MU) COO: China RoHS: Compliant Min Qty: 260 Package Multiple: 260 Lead time: 7 Weeks, 0 Days Container: Tray 0
  • 260 $9.0143
  • 520 $8.5270
  • 1,040 $8.3026
  • 1,560 $8.0897
  • 2,080 $7.8875
$7.8875 / $9.0143 Buy Now
DISTI # 556-AT90USB647-MU
Mouser Electronics 8-bit Microcontrollers - MCU AVR USB 64K FLSH-OTG 16MHz Ind Temp RoHS: Compliant 151
  • 1 $8.9500
  • 25 $8.2100
  • 100 $7.4200
  • 260 $7.4100
  • 1,040 $7.4000
$7.4000 / $8.9500 Buy Now
DISTI # AT90USB647-MU
Microchip Technology Inc 16 MHz, TQFP, Ind Temp, Green, OTG, VQFN, Projected EOL: 2040-11-06 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Tray In Stock: 149 and Alternates Available
  • 1 $8.9500
  • 25 $8.2100
  • 100 $7.4200
  • 1,000 $6.8300
  • 5,000 $6.4900
$6.4900 / $8.9500 Buy Now
Onlinecomponents.com MCU - 8-bit AVR RISC - 64KB Flash - 3.3V/5V - 64-Pin QFN EP - Tray COO: Thailand RoHS: Compliant 0
  • 65 $14.7900
  • 130 $9.1000
  • 195 $7.2100
  • 260 $7.0600
$7.0600 / $14.7900 Buy Now
NAC 16 MHz, TQFP, Ind Temp, Green, OTG. Package: 64 VQFN 9x9x1mm TRAY - APP SPECIFIC STANDARD PROD AVR Product Line RoHS: Compliant Min Qty: 260 Package Multiple: 260 Container: Tray 0
  • 1 $9.2800
  • 100 $8.4100
  • 500 $7.8900
  • 1,000 $7.7000
$7.7000 / $9.2800 Buy Now
DISTI # AT90USB647-MU
Avnet Silica MCU 8bit AT90 AVR RISC 64KB Flash 33V5V 64Pin QFN EP (Alt: AT90USB647-MU) RoHS: Compliant Min Qty: 260 Package Multiple: 260 Lead time: 9 Weeks, 0 Days Silica - 0
Buy Now
Chip Stock ICMCU8BIT64KBFLASH64QFNAVRAVR®90USBMicrocontrollerIC8-Bit16MHz64KB(64Kx8)FLASH64-QFN(9x9) 3300
RFQ
DISTI # AT90USB647-MU
EBV Elektronik MCU 8bit AT90 AVR RISC 64KB Flash 33V5V 64Pin QFN EP (Alt: AT90USB647-MU) RoHS: Compliant Min Qty: 260 Package Multiple: 260 Lead time: 8 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics MCU - 8-bit AVR RISC - 64KB Flash - 3.3V/5V - 64-Pin QFN EP - Tray COO: Thailand RoHS: Compliant 0
  • 65 $14.7900
  • 130 $9.1000
  • 195 $7.2100
  • 260 $7.0600
$7.0600 / $14.7900 Buy Now

US Tariff Estimator: AT90USB647-MU by Microchip Technology Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

AT90USB647-MU
Microchip Technology Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for AT90USB647-MU

AT90USB647-MU CAD Models

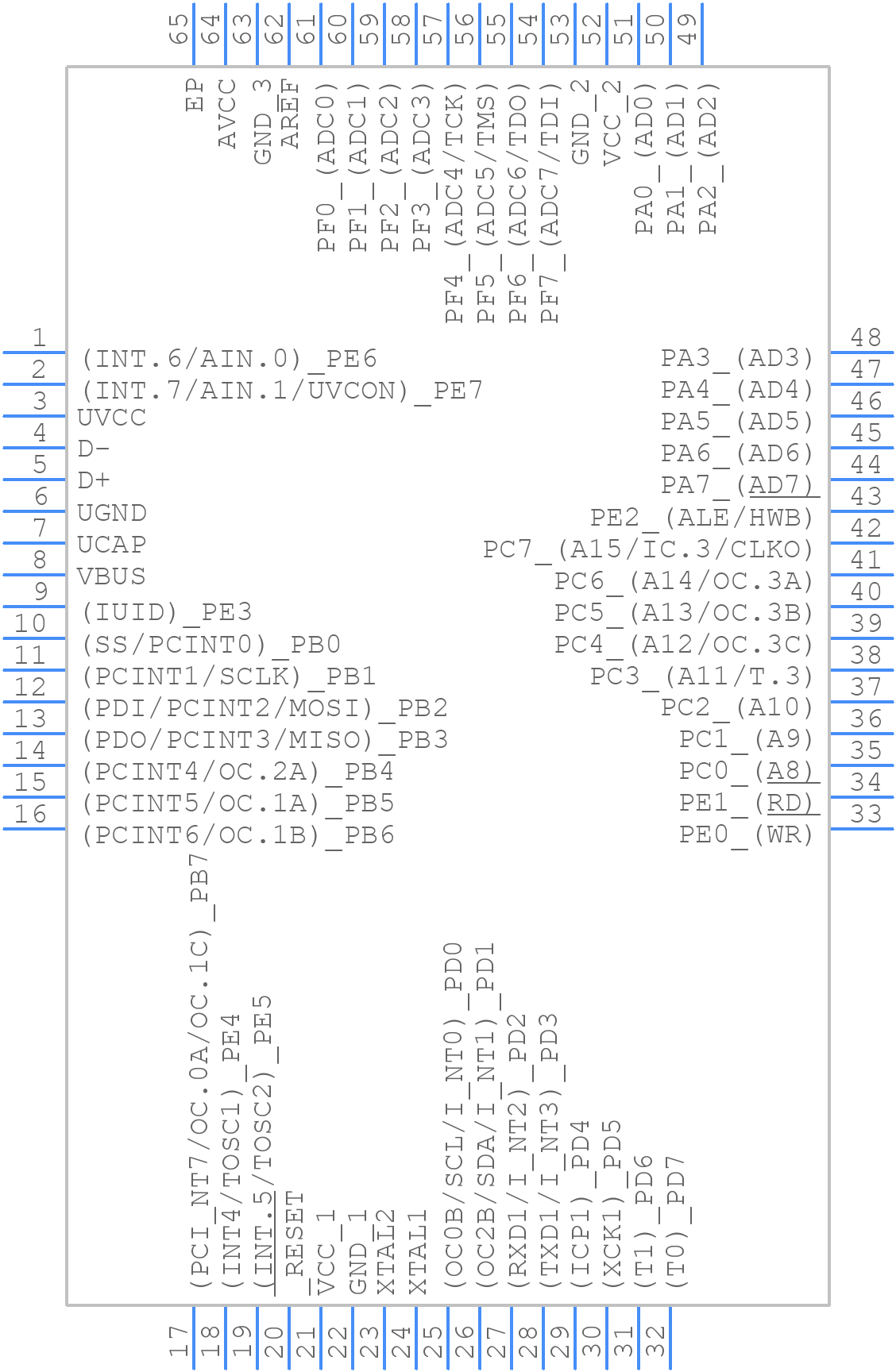

  • Part Symbol

    schematic symbol

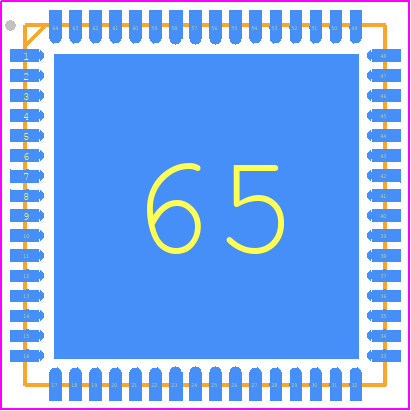

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

AT90USB647-MU Part Data Attributes

Parametric Data
AT90USB647-MU Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
AT90USB647-MU Microchip Technology Inc 16 MHz, TQFP, Ind Temp, Green, OTG
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Package Description Hvqccn, Lcc64,.35sq,20
Pin Count 64
Manufacturer Package Code VQFN-64
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 7 Weeks
Has ADC Yes
Additional Feature Operates At 2.7 V Minimum Supply At 8 Mhz
Address Bus Width 16
Bit Size 8
Boundary Scan Yes
CPU Family Avr Risc
Clock Frequency-Max 16 Mhz
DAC Channels No
DMA Channels No
External Data Bus Width 8
Format Fixed Point
Integrated Cache No
JESD-30 Code S-PQCC-N64
JESD-609 Code e3
Length 9 Mm
Low Power Mode Yes
Moisture Sensitivity Level 1
Number of External Interrupts 16
Number of I/O Lines 48
Number of Serial I/Os 1
Number of Terminals 64
Number of Timers 4
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code HVQCCN
Package Equivalence Code LCC64,.35SQ,20
Package Shape Square
Package Style Chip Carrier, Heat Sink/Slug, Very Thin Profile
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 4096
ROM (words) 65536
ROM Programmability Flash
Seated Height-Max 1 Mm
Speed 16 Mhz
Supply Current-Max 30 Ma
Supply Voltage-Max 5.5 V
Supply Voltage-Min 5 V
Supply Voltage-Nom 5 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Finish Matte Tin (Sn)
Terminal Form No Lead
Terminal Pitch 0.5 Mm
Terminal Position Quad
Time@Peak Reflow Temperature-Max (s) 30
Width 9 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc

Alternate Parts for AT90USB647-MU

This table gives cross-reference parts and alternative options found for AT90USB647-MU. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AT90USB647-MU, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
AT90USB647-AU Microchip Technology Inc $8.2299 16 MHz, TQFP, Ind Temp, Green,OTG AT90USB647-MU vs AT90USB647-AU
AT90USB647-MUR Microchip Technology Inc $9.4950 16 MHz, QFN/MLF, Ind Temp, Green AT90USB647-MU vs AT90USB647-MUR
AT90USB647-AUR Microchip Technology Inc Check for Price 16 MHz, TQFP, Ind Temp, Green AT90USB647-MU vs AT90USB647-AUR
equivalents icon

AT90USB647-MU Related Parts

AT90USB647-MU Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the AT90USB647-MU is 12 MHz.

  • The AT90USB647-MU has 64 KB of flash memory.

  • Yes, the AT90USB647-MU can be used for both USB device and host applications, as well as On-The-Go (OTG) applications.

  • The operating voltage range of the AT90USB647-MU is 2.7V to 5.5V.

  • Yes, the AT90USB647-MU has built-in USB transceivers, which eliminates the need for external USB transceivers.
