B05B-PASK-1(LF)(SN) by: JST Manufacturing

Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, Press Fit Terminal, ROHS COMPLIANT

Part Details for B05B-PASK-1(LF)(SN) by JST Manufacturing

Results Overview of B05B-PASK-1(LF)(SN) by JST Manufacturing

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

B05B-PASK-1(LF)(SN) Information

B05B-PASK-1(LF)(SN) by JST Manufacturing is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
GMCB05B11124H1EU Amphenol Communications Solutions Micro USB 2.0 Type B Receptacle Vertical SMT Shell Dip Length 1.7mm, Tape and Reel Packagin
GMCB05B23124H1EU Amphenol Communications Solutions Micro USB 2.0 Type B Receptacle Vertical SMT Shell Dip Length 1.7mm, Tape and Reel Packagin
GMCB05B231241H1EU Amphenol Communications Solutions USB, Micro B, Vertical, Surface mount, 30u\\ GOLD

Price & Stock for B05B-PASK-1(LF)(SN)

Part # Distributor Description Stock Price Buy
DISTI # 306-B05BPASK1LFSN
Mouser Electronics Headers & Wire Housings PA Series 5 Position 2 mm Pitch Crimp Wire to Board Straight Shrouded Header RoHS: Compliant 2941
  • 1 $0.2900
  • 10 $0.2410
  • 25 $0.2400
  • 100 $0.2060
  • 250 $0.1850
  • 1,000 $0.1760
  • 2,500 $0.1560
  • 10,000 $0.1490
$0.1490 / $0.2900 Buy Now
Future Electronics PA Series 5 Position 2 mm Pitch Crimp Wire to Board Straight Shrouded Header RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks Container: Bag 7568
Bag
  • 1 $0.1780
  • 150 $0.1740
  • 500 $0.1700
  • 1,500 $0.1670
  • 5,000 $0.1600
$0.1600 / $0.1780 Buy Now
DISTI # JSTB05B-PASK-1(LF)(SN)
Heilind Electronics CONNECTOR Americas - 22164 in Stock
  • 1 $0.2132
  • 900 $0.1857
  • 2,200 $0.1771
  • 4,400 $0.1718
  • 8,700 $0.1669
$0.1669 / $0.2132 Buy Now
DISTI # 91579074
Verical Conn Shrouded Header (4 Sides) HDR 5 POS 2mm Solder ST Top Entry Thru-Hole Box RoHS: Compliant Min Qty: 36 Package Multiple: 1 Date Code: 2514 Americas - 6732
  • 36 $0.2236
  • 100 $0.1799
  • 500 $0.1772
  • 1,000 $0.1717
$0.1717 / $0.2236 Buy Now
DISTI # 87355960
Verical Conn Shrouded Header (4 Sides) HDR 5 POS 2mm Solder ST Top Entry Thru-Hole Box RoHS: Compliant Min Qty: 264 Package Multiple: 1 Americas - 1675
  • 264 $0.2660
  • 500 $0.2408
$0.2408 / $0.2660 Buy Now
Quest Components 5 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT 119584
  • 1 $2.2250
  • 900 $0.7788
  • 1,927 $0.6675
$0.6675 / $2.2250 Buy Now
DISTI # B05B-PASK-1(LF)(SN)
IBS Electronics CONN SHROUDED HEADER (4 SIDES) HDR 5 POS 2MM SOLDER ST THRU-HOLE BOX Min Qty: 50 Package Multiple: 1 8311
  • 50 $0.2492
  • 150 $0.2436
  • 500 $0.2184
  • 1,500 $0.2142
  • 2,500 $0.2114
  • 5,000 $0.2086
  • 10,000 $0.2044
$0.2044 / $0.2492 Buy Now
Component Electronics, Inc IN STOCK SHIP TODAY 100
  • 1 $0.1500
  • 100 $0.1200
  • 1,000 $0.1000
$0.1000 / $0.1500 Buy Now
New Advantage Corporation PA Series 5 Position 2 mm Pitch Crimp Wire to Board Straight Shrouded Header RoHS: Compliant Min Qty: 1 Package Multiple: 500 6000
  • 1,000 $0.2967
  • 6,000 $0.2738
$0.2738 / $0.2967 Buy Now
Win Source Electronics CONN HEADER VERT 5POS 2MM / Connector Header Through Hole 5 position 0.079" (2.00mm) 17200
  • 450 $0.1289
  • 960 $0.1206
  • 1,490 $0.1164
  • 2,140 $0.1081
  • 2,780 $0.1040
  • 3,475 $0.0998
$0.0998 / $0.1289 Buy Now

US Tariff Estimator: B05B-PASK-1(LF)(SN) by JST Manufacturing

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

B05B-PASK-1(LF)(SN)
JST Manufacturing
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for B05B-PASK-1(LF)(SN)

B05B-PASK-1(LF)(SN) CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

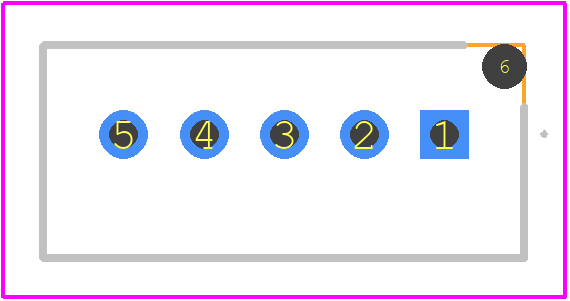

    pcb footprint
