Part Details for B32023B3104K000 by TDK Corporation
Results Overview of B32023B3104K000 by TDK Corporation
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (5 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
B32023B3104K000 Information
B32023B3104K000 by TDK Corporation is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for B32023B3104K000
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
B32023B3104K000
|
Avnet Americas | Safety Capacitor, 0.1 uF, 300 VAC, ? 10%, Y2, Metallized PP, Radial Box - 2 Pin, Through Hole - Bulk (Alt: B32023B3104K000) COO: India RoHS: Compliant Min Qty: 2160 Package Multiple: 2160 Lead time: 22 Weeks, 0 Days Container: Bulk | 0 |
|
$1.0924 / $1.1151 | Buy Now |
|
DISTI #
871-B32023B3104K
|
Mouser Electronics | Safety Capacitors .1uF 10% 300Vac MKP Y2, LS 22.5MM RoHS: Compliant | 1931 |
|
$0.9120 / $1.6700 | Buy Now |
|
DISTI #
B32023B3104K000
|
Avnet Abacus | Safety Capacitor 01 uF 300 VAC 10 Y2 Metallized PP Radial Box 2 Pin Through Hole (Alt: B32023B3104K000) RoHS: Compliant Min Qty: 2160 Package Multiple: 2160 Lead time: 21 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
US Tariff Estimator: B32023B3104K000 by TDK Corporation
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for B32023B3104K000
B32023B3104K000 CAD Models
-
Part Symbol
-

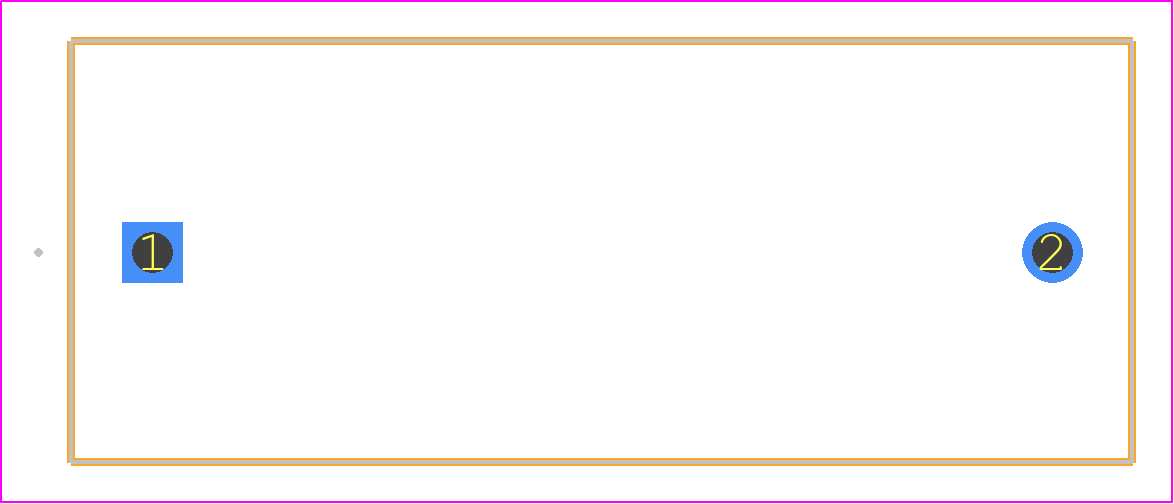

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
B32023B3104K000 Part Data Attributes
|
|
B32023B3104K000
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
B32023B3104K000
TDK Corporation
Film Capacitor, Polypropylene, 1500V, 10% +Tol, 10% -Tol, 0.1uF, Through Hole Mount, RADIAL LEADED, LEAD FREE
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Radial Leaded | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.25.00.70 | |
| Factory Lead Time | 6 Weeks | |
| Additional Feature | Class Y2 | |
| Capacitance | 0.1 µF | |
| Capacitor Type | Film Capacitor | |
| Dielectric Material | Polypropylene | |
| Height | 16.5 Mm | |
| JESD-609 Code | e3 | |
| Length | 26.5 Mm | |
| Mounting Feature | Through Hole Mount | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 110 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Shape | Rectangular Package | |
| Package Style | Radial | |
| Packing Method | Bulk | |
| Positive Tolerance | 10% | |
| Rated (AC) Voltage (URac) | 300 V | |
| Rated (DC) Voltage (URdc) | 1500 V | |
| Surface Mount | No | |
| Terminal Finish | Matte Tin | |
| Terminal Pitch | 22.5 Mm | |
| Terminal Shape | Wire | |
| Width | 10.5 Mm |
Alternate Parts for B32023B3104K000
This table gives cross-reference parts and alternative options found for B32023B3104K000. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of B32023B3104K000, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| B32023B3104K000 | TDK Electronics | $1.4594 | CAPACITOR, METALLIZED FILM, POLYPROPYLENE, 1500 V, 0.1 uF, THROUGH HOLE MOUNT, RADIAL LEADED, LEAD FREE | B32023B3104K000 vs B32023B3104K000 |
| B32023B3104K189 | TDK Corporation | Check for Price | Film Capacitor, Polypropylene, 1500V, 10% +Tol, 10% -Tol, 0.1uF, Through Hole Mount, RADIAL LEADED, LEAD FREE | B32023B3104K000 vs B32023B3104K189 |
| B32023B3104K289 | TDK Electronics | Check for Price | CAPACITOR, METALLIZED FILM, POLYPROPYLENE, 1500 V, 0.1 uF, THROUGH HOLE MOUNT, RADIAL LEADED, LEAD FREE | B32023B3104K000 vs B32023B3104K289 |
| B32023B3104K289 | TDK Corporation | Check for Price | Film Capacitor, Polypropylene, 1500V, 10% +Tol, 10% -Tol, 0.1uF, Through Hole Mount, RADIAL LEADED, LEAD FREE | B32023B3104K000 vs B32023B3104K289 |
| B32023B3104K003 | TDK Corporation | Check for Price | Film Capacitor, | B32023B3104K000 vs B32023B3104K003 |
B32023B3104K000 Frequently Asked Questions (FAQ)
-
The recommended land pattern for the B32023B3104K000 capacitor can be found in the TDK Corporation's capacitor land pattern guidelines document, which provides detailed information on pad layout, spacing, and dimensions for optimal soldering and reliability.
-
The ESR of the B32023B3104K000 capacitor is specified in the datasheet, and it plays a critical role in high-frequency circuits. A lower ESR value reduces energy losses and improves the capacitor's ability to filter high-frequency noise and ripple. Engineers should consider the ESR value when designing high-frequency circuits to ensure optimal performance.
-
The maximum operating temperature range for the B32023B3104K000 capacitor is specified in the datasheet as -55°C to +125°C. However, engineers should note that the capacitor's performance and lifespan may degrade at extreme temperatures. It's essential to consider the operating temperature range when designing systems that may be exposed to high or low temperatures.
-
The B32023B3104K000 capacitor is designed to meet the requirements of various industries, including automotive and industrial applications, which often involve high-vibration environments. However, engineers should consult TDK Corporation's vibration testing and reliability guidelines to ensure the capacitor meets the specific vibration requirements of their application.
-
The capacitance value of the B32023B3104K000 capacitor may change over time due to aging, but the rate of change is relatively slow. TDK Corporation provides aging rate specifications in the datasheet, which engineers can use to estimate the capacitor's performance over its lifespan. Engineers should consider the aging rate when designing systems that require long-term reliability.
