Part Details for B32529C0104K189 by TDK Corporation
Results Overview of B32529C0104K189 by TDK Corporation
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (5 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Healthcare
Energy and Power Systems
Medical Imaging
Renewable Energy
B32529C0104K189 Information
B32529C0104K189 by TDK Corporation is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for B32529C0104K189
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
B32529C0104K189
|
Avnet Americas | General Purpose Film Capacitor, 0.1 uF, 40 V, 63 V, ? 10%, Metallized PET Stacked, Radial Box - 2 Pin - Tape and Reel (Alt: B32529C0104K189) COO: Brazil RoHS: Compliant Min Qty: 2800 Package Multiple: 2800 Lead time: 19 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.0345 / $0.0512 | Buy Now |
|
DISTI #
B32529C104K189
|
TTI | Film Capacitors 0.1uF 63V 10% RoHS: Compliant pbFree: Pb-Free Min Qty: 11200 Package Multiple: 2800 Container: Reel | Americas - 0 |
|
$0.0500 / $0.0530 | Buy Now |
US Tariff Estimator: B32529C0104K189 by TDK Corporation
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for B32529C0104K189
B32529C0104K189 CAD Models
-
Part Symbol
-

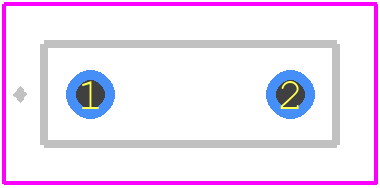

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
B32529C0104K189 Part Data Attributes
|
|
B32529C0104K189
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
B32529C0104K189
TDK Corporation
Film Capacitor, Polyester And Polyethylene Terephthalate, 63V, 10% +Tol, 10% -Tol, 0.1uF, Through Hole Mount, METALLIZED POLYESTER FILM CAPACITOR
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Radial Leaded | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.25.00.70 | |
| Factory Lead Time | 7 Weeks | |
| Capacitance | 0.1 µF | |
| Capacitor Type | Film Capacitor | |
| Dielectric Material | Polyethylene Terephthalate | |
| Height | 6.5 Mm | |
| JESD-609 Code | e3 | |
| Length | 7.3 Mm | |
| Mounting Feature | Through Hole Mount | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Style | Radial | |
| Packing Method | Tr, 14 Inch | |
| Positive Tolerance | 10% | |
| Rated (AC) Voltage (URac) | 40 V | |
| Rated (DC) Voltage (URdc) | 63 V | |
| Reference Standard | Aec-Q200 | |
| Surface Mount | No | |
| Terminal Finish | Matte Tin | |
| Terminal Pitch | 5 Mm | |
| Terminal Shape | Wire | |
| Width | 2.5 Mm |
Alternate Parts for B32529C0104K189
This table gives cross-reference parts and alternative options found for B32529C0104K189. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of B32529C0104K189, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| B32529C0104K189 | TDK Electronics | $0.0856 | CAPACITOR, METALLIZED FILM, POLYESTER, 63V, 0.1uF, THROUGH HOLE MOUNT, RADIAL LEADED, LEAD FREE | B32529C0104K189 vs B32529C0104K189 |
| B32529C0104K289 | TDK Electronics | $0.1019 | CAPACITOR, METALLIZED FILM, POLYESTER, 63V, 0.1uF, THROUGH HOLE MOUNT, RADIAL LEADED, LEAD FREE | B32529C0104K189 vs B32529C0104K289 |
| B32529C0104K000 | TDK Electronics | $0.1088 | CAPACITOR, METALLIZED FILM, POLYESTER, 63V, 0.1uF, THROUGH HOLE MOUNT, RADIAL LEADED, LEAD FREE | B32529C0104K189 vs B32529C0104K000 |
| B32529C0104K289 | TDK Corporation | Check for Price | Film Capacitor, Polyester And Polyethylene Terephthalate, 63V, 10% +Tol, 10% -Tol, 0.1uF, Through Hole Mount, METALLIZED POLYESTER FILM CAPACITOR | B32529C0104K189 vs B32529C0104K289 |
| B32529C0104K000 | TDK Corporation | Check for Price | Film Capacitor, Polyester And Polyethylene Terephthalate, 63V, 10% +Tol, 10% -Tol, 0.1uF, Through Hole Mount, METALLIZED POLYESTER FILM CAPACITOR | B32529C0104K189 vs B32529C0104K000 |
B32529C0104K189 Frequently Asked Questions (FAQ)
-
TDK recommends a soldering temperature profile with a peak temperature of 260°C for 10-30 seconds, and a maximum of 3 reflows. However, it's always best to consult the specific soldering guidelines provided by TDK or to consult with their technical support team for more detailed information.
-
The B32529C0104K189 is a Class 1 ceramic capacitor, which means it's designed for general-purpose use and may not be suitable for high-vibration environments. If you need a capacitor for a high-vibration application, consider using a Class 2 or Class 3 ceramic capacitor, or a capacitor specifically designed for high-reliability applications.
-
The ESR of the B32529C0104K189 is not explicitly stated in the datasheet. However, according to TDK's general guidelines, the ESR of a 100nF, 10V, X7R ceramic capacitor is typically around 50-100 mohms. For more accurate information, consult TDK's technical support team or request a detailed specification sheet.
-
The B32529C0104K189 has a rated operating temperature range of -55°C to 125°C. While it can operate at high temperatures, its capacitance value and ESR may change significantly above 85°C. If you need a capacitor for a high-temperature application, consider using a capacitor with a higher temperature rating, such as a ceramic capacitor with an X8R or X9R dielectric.
-
The B32529C0104K189 is a general-purpose ceramic capacitor, and its suitability for use in a DC-DC converter or switching power supply depends on the specific application and design requirements. In general, ceramic capacitors can be used in switching power supplies, but they may not be the best choice due to their limited ripple current capability and potential for voltage derating. Consider using a capacitor specifically designed for power supply applications, such as a film capacitor or an electrolytic capacitor.
