Part Details for B32652A0104K000 by TDK Corporation
Results Overview of B32652A0104K000 by TDK Corporation
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (4 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
B32652A0104K000 Information
B32652A0104K000 by TDK Corporation is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for B32652A0104K000
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
B32652A0104K000
|
Avnet Americas | Film Capacitor, 0.1 uF, 250 V, 1000 V, ? 10%, Metallized PP, Radial Box - 2 Pin - Bulk (Alt: B32652A0104K000) COO: India RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 22 Weeks, 0 Days Container: Bulk | 0 |
|
$0.2140 / $0.3302 | Buy Now |
|
DISTI #
871-B32652A104K
|
Mouser Electronics | Film Capacitors 0.1uF 1KV 10% RoHS: Compliant | 0 |
|
$0.2820 / $0.9600 | Order Now |
|
DISTI #
B32652A104K
|
TTI | Film Capacitors 0.1uF 1KV 10% RoHS: Compliant pbFree: Pb-Free Min Qty: 100 Package Multiple: 100 Container: Bulk |
Americas - 1000 In Stock |
|
$0.2780 / $0.3820 | Buy Now |
|
DISTI #
B32652A0104K000
|
Avnet Abacus | Film Capacitor 01 uF 250 V 1000 V 10 Metallized PP Radial Box 2 Pin (Alt: B32652A0104K000) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 21 Weeks, 0 Days | Abacus - 98500 |
|
Buy Now | |
|
DISTI #
B32652A0104K000
|
Avnet Asia | (Alt: B32652A0104K000) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 10 Weeks, 0 Days | 0 |
|
RFQ |
US Tariff Estimator: B32652A0104K000 by TDK Corporation
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for B32652A0104K000
B32652A0104K000 CAD Models
-
Part Symbol
-

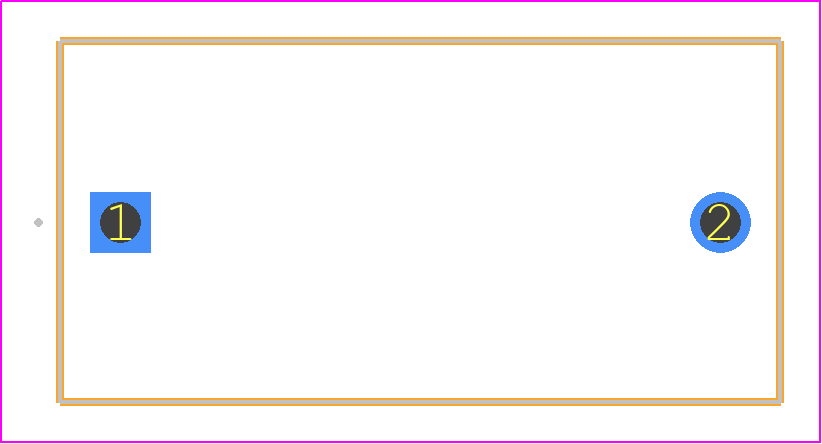

Footprint
-

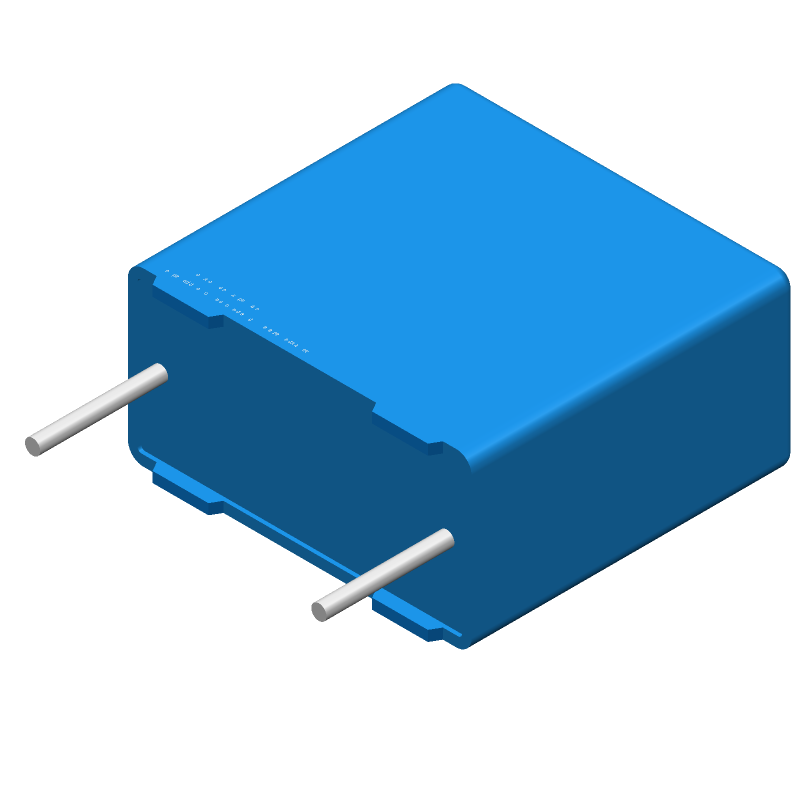

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
B32652A0104K000 Part Data Attributes
|
|
B32652A0104K000
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
B32652A0104K000
TDK Corporation
Film Capacitor, Polypropylene, 1000V, 10% +Tol, 10% -Tol, 0.1uF, Through Hole Mount, 7135, RADIAL LEADED, LEAD FREE
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Radial Leaded | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.25.00.70 | |
| Factory Lead Time | 20 Weeks | |
| Capacitance | 0.1 µF | |
| Capacitor Type | Film Capacitor | |
| Dielectric Material | Polypropylene | |
| Height | 17.5 Mm | |
| JESD-609 Code | e3 | |
| Length | 18 Mm | |
| Mounting Feature | Through Hole Mount | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 110 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | Rectangular Package | |
| Package Style | Radial | |
| Packing Method | Bulk | |
| Positive Tolerance | 10% | |
| Rated (AC) Voltage (URac) | 250 V | |
| Rated (DC) Voltage (URdc) | 1000 V | |
| Reference Standard | Aec-Q200 | |
| Surface Mount | No | |
| Terminal Finish | Tin (Sn) | |
| Terminal Pitch | 15 Mm | |
| Terminal Shape | Wire | |
| Width | 9 Mm |
Alternate Parts for B32652A0104K000
This table gives cross-reference parts and alternative options found for B32652A0104K000. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of B32652A0104K000, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| B32652A0104K000 | TDK Electronics | $0.2858 | CAPACITOR, METALLIZED FILM, POLYPROPYLENE, 1000V, 0.1uF, THROUGH HOLE MOUNT, RADIAL LEADED, LEAD FREE | B32652A0104K000 vs B32652A0104K000 |
| B32652A0104K289 | TDK Electronics | Check for Price | CAPACITOR, METALLIZED FILM, POLYPROPYLENE, 1000V, 0.1uF, THROUGH HOLE MOUNT, RADIAL LEADED, LEAD FREE | B32652A0104K000 vs B32652A0104K289 |
| B32652A0104K189 | TDK Electronics | Check for Price | CAPACITOR, METALLIZED FILM, POLYPROPYLENE, 1000V, 0.1uF, THROUGH HOLE MOUNT, RADIAL LEADED, LEAD FREE | B32652A0104K000 vs B32652A0104K189 |
| B32652A0104K189 | TDK Corporation | Check for Price | Film Capacitor, Polypropylene, 1000V, 10% +Tol, 10% -Tol, 0.1uF, Through Hole Mount, 7135, RADIAL LEADED, LEAD FREE | B32652A0104K000 vs B32652A0104K189 |
B32652A0104K000 Frequently Asked Questions (FAQ)
-
TDK recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds, and a minimum of 2°C (3.6°F) per second ramp-up and ramp-down rates.
-
Yes, the B32652A0104K000 capacitor is designed to withstand high vibrations and is suitable for use in applications with vibration levels up to 10G (sinusoidal vibration, 10-2000Hz).
-
The maximum allowable DC bias voltage for the B32652A0104K000 capacitor is 1.1 times the rated voltage, which is 10V in this case. However, it's recommended to consult with TDK or a qualified engineer to determine the suitable DC bias voltage for a specific application.
-
The B32652A0104K000 capacitor is designed to operate in a humid environment, but it's recommended to follow the IEC 60068-2-30 standard for humidity testing. TDK also recommends applying a conformal coating to the capacitor to enhance its moisture resistance.
-
The expected lifespan of the B32652A0104K000 capacitor is 1000 hours at 105°C (221°F) and rated voltage, with a failure rate of less than 1% per 1000 hours. However, the actual lifespan may vary depending on the application, operating conditions, and other factors.
