BAV21WSHE3-TP Information
BAV21WSHE3-TP by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BAV21WSHE3-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
353-BAV21WSHE3-TPCT-ND
|
DigiKey | DIODE STANDARD 200V 200MA SOD323 Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
1990 In Stock |
|
$0.0225 / $0.2100 | Buy Now |
|
DISTI #
833-BAV21WSHE3-TP
|
Mouser Electronics | Small Signal Switching Diodes 410mW SMALL SIGNAL DIODE RoHS: Compliant | 461 |
|
$0.0220 / $0.2100 | Buy Now |
|
DISTI #
BAV21WSHE3-TP
|
TME | Diode: switching, SMD, 250V, 200mA, 50ns, SOD323, Ufmax: 1.25V Min Qty: 25 | 750 |
|
$0.0322 / $0.0483 | Buy Now |
US Tariff Estimator: BAV21WSHE3-TP by Micro Commercial Components
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for BAV21WSHE3-TP
BAV21WSHE3-TP CAD Models
-
Part Symbol
-
Footprint
-

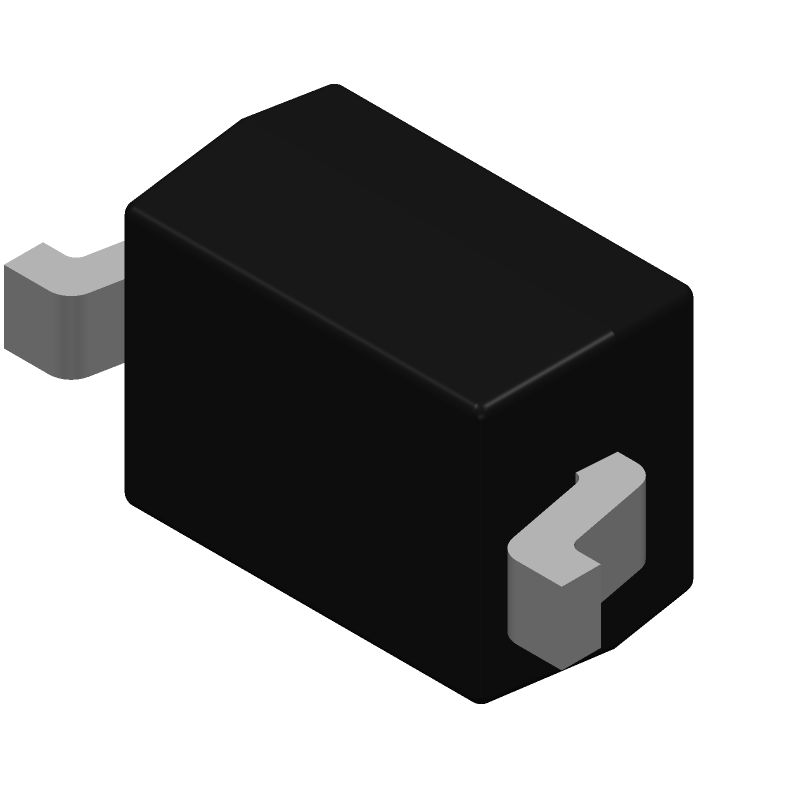

3D Model
