Diodes / Rectifier Diodes / BAW56-TP
Datasheets
BAW56-TP by:
Micro Commercial Components

Rectifier Diode, 2 Element, 0.25A, 75V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-3

Part Details for BAW56-TP by Micro Commercial Components

Results Overview of BAW56-TP by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

BAW56-TP Information

BAW56-TP by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
TBAW56 Toshiba Electronic Devices & Storage Corporation Switching Diode, 80 V, 0.215 A, SOT23

Price & Stock for BAW56-TP

Part # Distributor Description Stock Price Buy
DISTI # 21AM9385
Newark Small Signal Diode, 100V, 0.25A, Sot-23 Rohs Compliant: Yes |Micro Commercial Components BAW56-TP RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Cut Tape 14995
  • 1 $0.1510
  • 10 $0.0960
  • 25 $0.0850
  • 50 $0.0740
  • 100 $0.0630
  • 250 $0.0560
  • 500 $0.0480
  • 1,000 $0.0430
$0.0430 / $0.1510 Buy Now
DISTI # BAW56TPMSCT-ND
DigiKey DIODE ARRAY GP 75V 250MA SOT23 Min Qty: 1 Lead time: 16 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 3245
In Stock
  • 1 $0.1400
  • 10 $0.0850
  • 100 $0.0520
  • 500 $0.0376
  • 1,000 $0.0329
  • 3,000 $0.0263
  • 6,000 $0.0225
  • 9,000 $0.0203
  • 15,000 $0.0191
  • 21,000 $0.0191
  • 30,000 $0.0179
  • 75,000 $0.0163
$0.0163 / $0.1400 Buy Now
DISTI # 833-BAW56-TP
Mouser Electronics Small Signal Switching Diodes 100V RoHS: Compliant 1404
  • 1 $0.1400
  • 10 $0.0850
  • 100 $0.0520
  • 500 $0.0370
  • 1,000 $0.0320
  • 3,000 $0.0260
  • 9,000 $0.0190
  • 24,000 $0.0170
$0.0170 / $0.1400 Buy Now
Future Electronics BAW56 Series Dual 75 V Surface Mount Switching Diode - SOT-23 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 16 Weeks Container: Reel 0
Reel
  • 3,000 $0.0087
  • 12,000 $0.0084
  • 30,000 $0.0082
  • 75,000 $0.0080
  • 120,000 $0.0077
$0.0077 / $0.0087 Buy Now
DISTI # 91639889
Verical Diode Switching 100V 0.01A 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2527 Americas - 240000
  • 3,000 $0.0187
  • 6,000 $0.0180
  • 9,000 $0.0132
  • 15,000 $0.0090
  • 21,000 $0.0066
  • 30,000 $0.0061
$0.0061 / $0.0187 Buy Now
Bristol Electronics   Min Qty: 52 9000
  • 52 $0.0975
  • 155 $0.0488
  • 1,026 $0.0292
  • 5,138 $0.0195
$0.0195 / $0.0975 Buy Now
Bristol Electronics   1863
RFQ
Quest Components RECTIFIER DIODE, 1 PHASE, 2 ELEMENT, 0.25A, 100V V(RRM), SILICON 7200
  • 1 $0.0705
  • 427 $0.0235
  • 2,129 $0.0141
$0.0141 / $0.0705 Buy Now
Quest Components RECTIFIER DIODE, 1 PHASE, 2 ELEMENT, 0.25A, 100V V(RRM), SILICON 7200
  • 1 $0.1300
  • 155 $0.0390
  • 1,283 $0.0260
$0.0260 / $0.1300 Buy Now
Quest Components RECTIFIER DIODE, 1 PHASE, 2 ELEMENT, 0.25A, 100V V(RRM), SILICON 2400
  • 1 $0.2100
  • 96 $0.0630
  • 795 $0.0420
$0.0420 / $0.2100 Buy Now
Quest Components RECTIFIER DIODE, 1 PHASE, 2 ELEMENT, 0.25A, 100V V(RRM), SILICON 1490
  • 1 $0.1350
  • 223 $0.0450
  • 1,112 $0.0270
$0.0270 / $0.1350 Buy Now
DISTI # BAW56-TP
TME Diode: switching, SMD, 75V, 250mA, 4ns, SOT23, Ufmax: 0.855V, Ifsm: 1A Min Qty: 5 17297
  • 5 $0.0600
  • 10 $0.0380
  • 25 $0.0312
  • 100 $0.0238
  • 500 $0.0180
$0.0180 / $0.0600 Buy Now
Chip Stock Diode,SchottkyBarrier,Switching,Vr75V,If250mA,PkgSOT-23,ConfigDual,Vf855mV 600500
RFQ
LCSC 1A 4ns 75V 1 Pair Common Anode 855mV10mA 250mA SOT-23 Single Diodes RoHS 950
  • 50 $0.0399
  • 500 $0.0362
  • 3,000 $0.0343
  • 6,000 $0.0334
  • 24,000 $0.0322
$0.0322 / $0.0399 Buy Now

US Tariff Estimator: BAW56-TP by Micro Commercial Components

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

BAW56-TP
Micro Commercial Components
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for BAW56-TP

BAW56-TP CAD Models

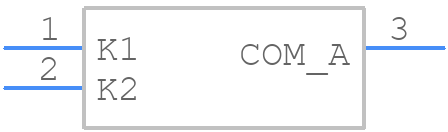

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

BAW56-TP Part Data Attributes

Parametric Data
BAW56-TP Micro Commercial Components
Buy Now Datasheet
Compare Parts:
BAW56-TP Micro Commercial Components Rectifier Diode, 2 Element, 0.25A, 75V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-3
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Package Description Package-3
Pin Count 3
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8541.10.00.70
Additional Feature Low Leakage Current
Application General Purpose
Configuration Common Anode, 2 Elements
Diode Element Material Silicon
Diode Type Rectifier Diode
Forward Voltage-Max (VF) 0.855 V
JESD-30 Code R-PDSO-G3
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Pk Forward Current-Max 1 A
Number of Elements 2
Number of Phases 1
Number of Terminals 3
Output Current-Max 0.25 A
Package Body Material Plastic/Epoxy
Package Shape Rectangular
Package Style Small Outline
Peak Reflow Temperature (Cel) 260
Power Dissipation-Max 0.35 W
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 100 V
Reverse Current-Max 0.5 µA
Reverse Recovery Time-Max 0.004 µS
Surface Mount Yes
Terminal Finish Matte Tin
Terminal Form Gull Wing
Terminal Position Dual
Time@Peak Reflow Temperature-Max (s) 10

Alternate Parts for BAW56-TP

This table gives cross-reference parts and alternative options found for BAW56-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BAW56-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
BAW56LT1G onsemi $0.0250 70 V Dual Common Anode Switching Diode, SOT-23 (TO-236) 3 LEAD, 3000-REEL BAW56-TP vs BAW56LT1G
BAW56Q-7-F Diodes Incorporated $0.0310 Rectifier Diode, 2 Element, 0.3A, 75V V(RRM), Silicon, GREEN, PLASTIC PACKAGE-3 BAW56-TP vs BAW56Q-7-F
BAW56TT1 onsemi Check for Price 0.2A, 70V, 2 ELEMENT, SILICON, SIGNAL DIODE, CASE 463-01, SC-75, 3 PIN BAW56-TP vs BAW56TT1
BAW56TC Diodes Incorporated Check for Price Rectifier Diode, 2 Element, 0.1A, 70V V(RRM), Silicon, BAW56-TP vs BAW56TC
BAW56 Formosa Microsemi Co Ltd Check for Price Rectifier Diode, 2 Element, 0.2A, 70V V(RRM), Silicon, PLASTIC PACKAGE-3 BAW56-TP vs BAW56
BAW56 Fairchild Semiconductor Corporation Check for Price Rectifier Diode, 2 Element, 0.2A, 85V V(RRM), Silicon, SOT-23, 3 PIN BAW56-TP vs BAW56
BAW56TA Diodes Incorporated Check for Price Rectifier Diode, 2 Element, 0.1A, 70V V(RRM), Silicon, BAW56-TP vs BAW56TA
BAW56 Lite-On Semiconductor Corporation Check for Price Rectifier Diode, 2 Element, 0.1A, 75V V(RRM), Silicon, GREEN, PLASTIC PACKAGE-3 BAW56-TP vs BAW56
BAW56TRL YAGEO Corporation Check for Price Rectifier Diode, 2 Element, 0.25A, Silicon, BAW56-TP vs BAW56TRL
Part Number Manufacturer Composite Price Description Compare
BAW56T116 ROHM Semiconductor Check for Price Rectifier Diode, 2 Element, 0.1A, 80V V(RRM), Silicon, SSD3, 3 PIN BAW56-TP vs BAW56T116
BAW56 National Semiconductor Corporation Check for Price DIODE 0.2 A, 70 V, 2 ELEMENT, SILICON, SIGNAL DIODE, TO-236AB, Signal Diode BAW56-TP vs BAW56
BAW56S Siemens Check for Price Rectifier Diode, 4 Element, Silicon, BAW56-TP vs BAW56S
BAW56 Diodes Incorporated Check for Price Rectifier Diode, 2 Element, 0.15A, 75V V(RRM), Silicon, SOT-323, 3 PIN BAW56-TP vs BAW56
BAW56-H Formosa Microsemi Co Ltd Check for Price Rectifier Diode, 2 Element, 0.2A, 70V V(RRM), Silicon, HALOGEN FREE, PLASTIC PACKAGE-3 BAW56-TP vs BAW56-H
BAW56Q-13-F Diodes Incorporated Check for Price Rectifier Diode, 2 Element, 0.3A, 75V V(RRM), Silicon, GREEN, PLASTIC PACKAGE-3 BAW56-TP vs BAW56Q-13-F
BAW56 Infineon Technologies AG Check for Price Rectifier Diode, 2 Element, 0.2A, 80V V(RRM), Silicon, ROHS COMPLIANT PACKAGE-3 BAW56-TP vs BAW56
BAW56T Micro Commercial Components Check for Price Rectifier Diode, 2 Element, 0.075A, 85V V(RRM), Silicon, ULTRA SMALL, PLASTIC PACKAGE-3 BAW56-TP vs BAW56T
BAW56 Microsemi Corporation (now Microchip) Check for Price Rectifier Diode, 2 Element, 0.2A, 85V V(RRM), Silicon, BAW56-TP vs BAW56
BAW56 Vishay Semiconductors Check for Price Rectifier Diode, 2 Element, 0.25A, 85V V(RRM), Silicon, TO-236AB, PLASTIC, SOT-23, 3 PIN BAW56-TP vs BAW56
equivalents icon

BAW56-TP Related Parts

BAW56-TP Frequently Asked Questions (FAQ)

  • The recommended storage temperature for BAW56-TP is -40°C to +125°C.

  • Yes, BAW56-TP is suitable for high-frequency applications up to 1 GHz due to its low capacitance and high switching speed.

  • The maximum allowable power dissipation for BAW56-TP is 250 mW.

  • Yes, BAW56-TP can be used in switching power supplies due to its high switching speed and low capacitance.

  • Yes, BAW56-TP is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
