BD82007FVJ-MGE2 Information
BD82007FVJ-MGE2 by ROHM Semiconductor is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for BD82007FVJ-MGE2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
58AC8519
|
Newark | Power Load Sw, Aec-Q100, 5.5V, Tssop-8, Power Load Switch Type:High Side, Input Voltage:5.5V, Current Limit:2.4A, On State Resistance:0.07Ohm, Distribution Switch Case Style:Tssop, No. Of Pins:8Pins, Thermal Protection:Yes, On/Rohs Compliant: Yes |Rohm BD82007FVJ-MGE2 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.5540 / $1.1100 | Buy Now |
|
DISTI #
BD82007FVJ-MGE2CT-ND
|
DigiKey | IC PWR SWITCH N-CHAN 1:1 8TSSOP Min Qty: 1 Lead time: 14 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
373 In Stock |
|
$0.5029 / $1.1100 | Buy Now |
|
DISTI #
755-BD82007FVJ-MGE2
|
Mouser Electronics | Power Switch ICs - Power Distribution 2.4A 2.7-5.5V 1ch Crnt Limit H. Side RoHS: Compliant | 3653 |
|
$0.5070 / $1.1100 | Buy Now |
|
DISTI #
87728832
|
Verical | Hi Side Single 5.5V 2.4A Automotive 8-Pin TSSOP-BJ T/R RoHS: Compliant Min Qty: 112 Package Multiple: 1 Date Code: 2018 | Americas - 500 |
|
$0.7090 / $1.0800 | Buy Now |
|
DISTI #
86988069
|
Verical | Hi Side Single 5.5V 2.4A Automotive 8-Pin TSSOP-BJ T/R RoHS: Compliant Min Qty: 20 Package Multiple: 1 Date Code: 1601 | Americas - 20 |
|
$3.9370 | Buy Now |
|
|
Ameya Holding Limited | Min Qty: 1 | 50-Authorized Distributor |
|
$0.4089 / $0.6952 | Buy Now |
US Tariff Estimator: BD82007FVJ-MGE2 by ROHM Semiconductor
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for BD82007FVJ-MGE2
BD82007FVJ-MGE2 CAD Models
-

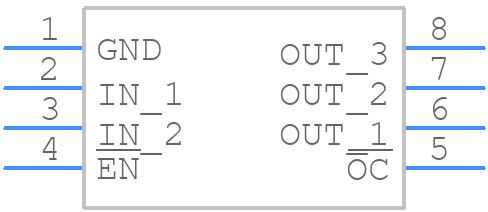

Part Symbol
-
