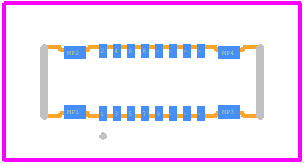

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BM28B0.6-16DS/2-0.35V(51) by Hirose Electric Co Ltd
Results Overview of BM28B0.6-16DS/2-0.35V(51) by Hirose Electric Co Ltd
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
BM28B0.6-16DS/2-0.35V(51) Information
BM28B0.6-16DS/2-0.35V(51) by Hirose Electric Co Ltd is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for BM28B0.6-16DS/2-0.35V(51)
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
65AK7142
|
Newark | 0.35Mm Pitch, 0.6Mm Height, Board-To-Board/Fpc-To-Board With Up To 5A |Hirose/hrs BM28B0.6-16DS/2-0.35V(51) RoHS: Not Compliant Min Qty: 20000 Package Multiple: 1 Date Code: 0 Container: Tape & Reel | 0 |
|
$0.6400 / $0.7600 | Buy Now |
|
DISTI #
26-BM28B0.6-16DS/2-0.35V(51)CT-ND
|
DigiKey | CONN RCPT 16POS SMD GOLD Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
969 In Stock |
|
$0.4267 / $0.8600 | Buy Now |
|
DISTI #
BM28B0.6-16DS/2-0.35V(51)
|
Avnet Americas | - Trays (Alt: BM28B0.6-16DS/2-0.35V(51)) COO: Japan RoHS: Compliant Min Qty: 20000 Package Multiple: 20000 Lead time: 12 Weeks, 0 Days Container: Tray | 0 |
|
$0.5429 | Buy Now |
|
DISTI #
798-28B0616DS2035V51
|
Mouser Electronics | Board to Board & Mezzanine Connectors 16P Receptacle Straight SMT RoHS: Compliant | 0 |
|
$0.4000 / $0.8600 | Order Now |
|
|
Onlinecomponents.com | 0.35mm Pitch, 0.6mm Height, Board to Board / FPC to Board with up to 5A COO: Japan RoHS: Compliant | 0 |
|
$0.4866 / $1.3680 | Buy Now |
|
DISTI #
000000000005627893
|
Sager | Board to Board & Mezzanine Connectors 16P Receptacle Straight SMT Min Qty: 20000 | 0 |
|
$0.4750 / $0.6333 | Buy Now |
|
DISTI #
CL0673-5067-0-51
|
Avnet Abacus | (Alt: CL0673-5067-0-51) RoHS: Compliant Min Qty: 20000 Package Multiple: 20000 Lead time: 14 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
LCSC | 0.35mm 2 -40+85 Surface MountVertical SMDP0.35mm Arrays Edge Type Mezzanine (Board to Board) RoHS | 29135 |
|
$0.1035 / $0.2156 | Buy Now |
|
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 20000 | 40000 |
|
$0.4353 | Buy Now |
Part Details for BM28B0.6-16DS/2-0.35V(51)

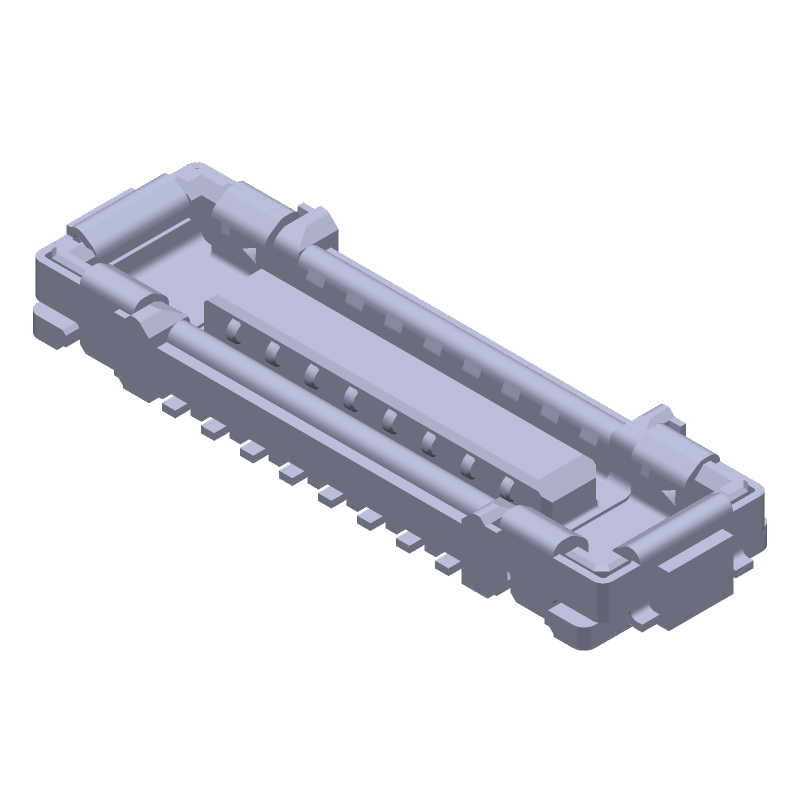

BM28B0.6-16DS/2-0.35V(51) CAD Models
