BQ27421YZFR-G1B Information
BQ27421YZFR-G1B by Texas Instruments is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for BQ27421YZFR-G1B
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-39937-1-ND
|
DigiKey | IC BATT FUEL GAUGE LICO2 9DSBGA Min Qty: 1 Lead time: 18 Weeks Container: Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
5535 In Stock |
|
$1.2701 / $2.5000 | Buy Now |
|
DISTI #
595-BQ27421YZFR-G1B
|
Mouser Electronics | Battery Management Fuel Gauge w/ Intg S ense Resistor A 595-BQ27421YZFT-G1B RoHS: Compliant | 1447 |
|
$1.2700 / $2.5000 | Buy Now |
|
|
Bristol Electronics | 2 |
|
RFQ | ||
|
|
Quest Components | POWER SUPPLY MANAGEMENT CIRCUIT, FIXED, 1 CHANNEL, PBGA9 | 1 |
|
$4.5000 | Buy Now |
|
|
Ameya Holding Limited | 94.3V CIM ID | 40224 |
|
RFQ | |
|
|
LCSC | Lithium Battery I2C 1 2A DSBGA-9 Battery Management RoHS | 35 |
|
$1.2858 / $2.2539 | Buy Now |
US Tariff Estimator: BQ27421YZFR-G1B by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for BQ27421YZFR-G1B
BQ27421YZFR-G1B CAD Models
-

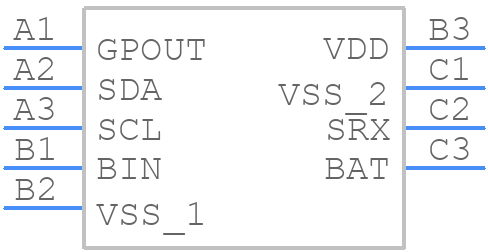

Part Symbol
-
Footprint
-

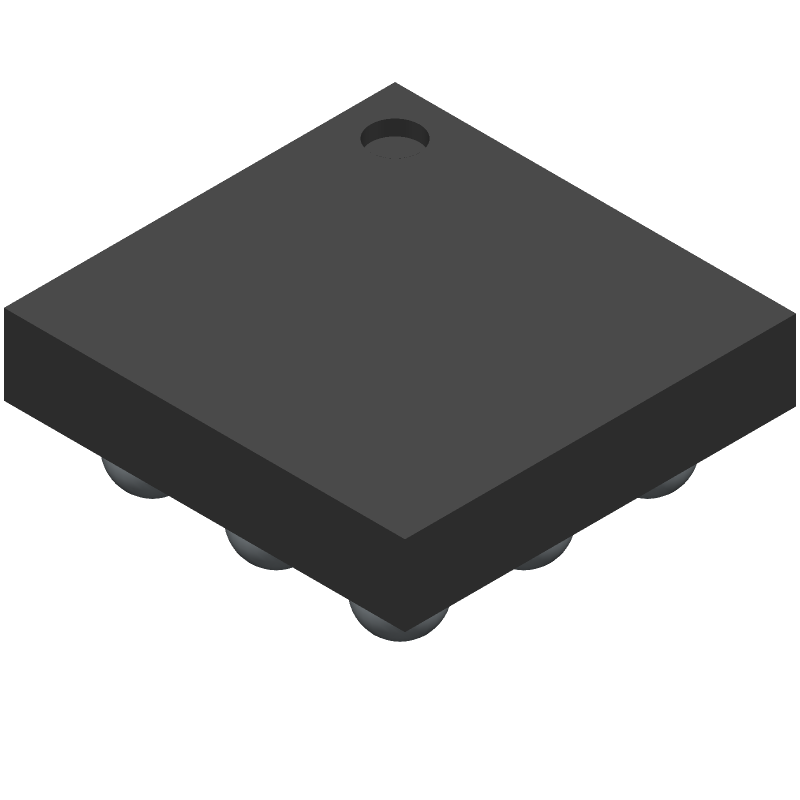

3D Model
