Part Details for BZX84C10 by Diodes Incorporated
Results Overview of BZX84C10 by Diodes Incorporated
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (10 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Electronic Manufacturing
Renewable Energy
Automotive
BZX84C10 Information
BZX84C10 by Diodes Incorporated is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BZX84C10
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
67T1047
|
Newark | Zener Single Diode, 10 V, 350 Mw, Sot-23, 6 %, 3, 150 C Rohs Compliant: Yes |Diodes Inc. BZX84C10 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1430 |
|
$0.0220 | Buy Now |
|
|
LCSC | Independent 9.4V10.6V 350mW 10V SOT-23 Single Zener Diodes RoHS | 15 |
|
$0.1269 / $0.2415 | Buy Now |
US Tariff Estimator: BZX84C10 by Diodes Incorporated
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for BZX84C10
BZX84C10 CAD Models
-

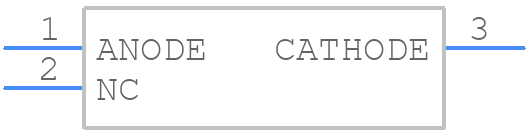

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
BZX84C10 Part Data Attributes
|
|
BZX84C10
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
BZX84C10
Diodes Incorporated
Zener Diode, 10V V(Z), 5%, 0.33W, Silicon, Unidirectional, SOT-23, 3 PIN
|
| Pbfree Code | No | |
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Part Package Code | SOT-23 | |
| Package Description | Sot-23, 3 Pin | |
| Pin Count | 3 | |
| Reach Compliance Code | Unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Configuration | Single | |
| Diode Element Material | Silicon | |
| Diode Type | Zener Diode | |
| Dynamic Impedance-Max | 20 Ω | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e0 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 235 | |
| Polarity | Unidirectional | |
| Power Dissipation-Max | 0.33 W | |
| Qualification Status | Not Qualified | |
| Reference Voltage-Nom | 10 V | |
| Surface Mount | Yes | |
| Technology | Zener | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Terminal Form | Gull Wing | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Voltage Tol-Max | 5% | |
| Working Test Current | 2 Ma |
Alternate Parts for BZX84C10
This table gives cross-reference parts and alternative options found for BZX84C10. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BZX84C10, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BZX84C10 | Diotec Semiconductor AG | $0.0261 | Zener Diode, 10V V(Z), 5%, 0.3W, Silicon, Unidirectional, TO-236, ROHS COMPLIANT, PLASTIC PACKAGE-3 | BZX84C10 vs BZX84C10 |
| BZX84C10-TP | Micro Commercial Components | $0.0422 | Zener Diode, 10V V(Z), 5%, 0.35W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC PACKAGE-3 | BZX84C10 vs BZX84C10-TP |
| BZX84C10Q-7-F | Diodes Incorporated | $0.0515 | Zener Diode, 10V V(Z), 6%, 0.35W, Silicon, Unidirectional, GREEN, PLASTIC PACKAGE-3 | BZX84C10 vs BZX84C10Q-7-F |
| BZX84C10_R2_00001 | PanJit Semiconductor | Check for Price | Zener Diode, 10V V(Z), 5%, 0.41W, Silicon, Unidirectional, GREEN, PLASTIC PACKAGE-3 | BZX84C10 vs BZX84C10_R2_00001 |
| BZX84-C10212 | NXP Semiconductors | Check for Price | 10V, 0.25W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE | BZX84C10 vs BZX84-C10212 |
| BZX84C10-GT1 | Sangdest Microelectronics (Nanjing) Co Ltd | Check for Price | Zener Diode, 10V V(Z), 5%, 0.35W, Silicon, Unidirectional, PLASTIC PACKAGE-3 | BZX84C10 vs BZX84C10-GT1 |
| BZX84C10-LF | Won-Top Electronics Co Ltd | Check for Price | Zener Diode, | BZX84C10 vs BZX84C10-LF |
| 933137460215 | Nexperia | Check for Price | Zener Diode, 10V V(Z), 5%, 0.25W, Silicon, Unidirectional, TO-236AB | BZX84C10 vs 933137460215 |
| BZX84C10-TP-HF | Micro Commercial Components | Check for Price | Zener Diode, | BZX84C10 vs BZX84C10-TP-HF |
| BZX84C10ET3 | onsemi | Check for Price | 10V, 0.225W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, TO-236AB, PLASTIC PACKAGE-3 | BZX84C10 vs BZX84C10ET3 |
BZX84C10 Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the BZX84C10 is -65°C to 150°C.
-
Yes, the BZX84C10 is suitable for high-reliability applications due to its low leakage current and high stability.
-
To ensure proper biasing, connect the anode to a voltage source and the cathode to a current-limiting resistor, and ensure the voltage across the device does not exceed the maximum rated voltage.
-
The maximum surge current rating for the BZX84C10 is 100A for 1ms, and 50A for 10ms.
-
Yes, the BZX84C10 is suitable for use in switching power supplies due to its fast switching times and low capacitance.
