C2012X7R1V155M125AB by:
TDK Corporation

Ceramic Capacitor, Multilayer, Ceramic, 35V, 20% +Tol, 20% -Tol, X7R, 15% TC, 1.5uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT

Part Details for C2012X7R1V155M125AB by TDK Corporation

Results Overview of C2012X7R1V155M125AB by TDK Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

C2012X7R1V155M125AB Information

C2012X7R1V155M125AB by TDK Corporation is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for C2012X7R1V155M125AB

Part # Distributor Description Stock Price Buy
DISTI # 445-14546-1-ND
DigiKey CAP CER 1.5UF 35V X7R 0805 Min Qty: 1 Lead time: 24 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) Limited Supply - Call
  • 1 $0.4800
  • 2,000 $0.1336
$0.1336 / $0.4800 Buy Now
DISTI # C2012X7R1V155M125AB
Avnet Americas - Tape and Reel (Alt: C2012X7R1V155M125AB) COO: Japan RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 24 Weeks, 0 Days Container: Tape & Reel 0
  • 2,000 $0.1072
  • 4,000 $0.1035
  • 8,000 $0.1000
  • 12,000 $0.0968
  • 16,000 $0.0938
$0.0938 / $0.1072 Buy Now
DISTI # 810-C2012X7R1V155M2A
Mouser Electronics Multilayer Ceramic Capacitors MLCC - SMD/SMT 0805 35V 1.5uF X7R 20% T: 1.25mm RoHS: Compliant 0
  • 1 $0.4800
  • 10 $0.4600
  • 100 $0.4330
  • 500 $0.4130
  • 1,000 $0.2680
  • 2,000 $0.1330
  • 4,000 $0.1240
  • 10,000 $0.1220
  • 24,000 $0.1200
$0.1200 / $0.4800 Order Now
DISTI # 32720646
Verical Cap Ceramic 1.5uF 35V X7R 20% Pad SMD 0805 125°C T/R RoHS: Compliant Min Qty: 313 Package Multiple: 1 Americas - 1990
  • 317 $0.3550
  • 500 $0.1730
  • 1,000 $0.1580
$0.1580 / $0.3550 Buy Now
DISTI # C2012X7R1V155M125AB
Avnet Abacus - Tape and Reel (Alt: C2012X7R1V155M125AB) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 41 Weeks, 0 Days Container: Tape & Reel Abacus - 0
Buy Now
DISTI # C2012X7R1V155M125AB
Chip One Stop Cap Ceramic 1.5uF 35V X7R 20% SMD 2.0 x 1.2 mm 125 C Plastic T/R RoHS: Compliant pbFree: Yes Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape 1990
  • 5 $0.3550
  • 50 $0.1730
  • 100 $0.1580
  • 200 $0.1570
  • 500 $0.1280
  • 1,000 $0.1200
  • 4,000 $0.1130
  • 8,000 $0.1060
  • 16,000 $0.0993
  • 32,000 $0.0968
$0.0968 / $0.3550 Buy Now

US Tariff Estimator: C2012X7R1V155M125AB by TDK Corporation

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

C2012X7R1V155M125AB
TDK Corporation
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for C2012X7R1V155M125AB

C2012X7R1V155M125AB CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

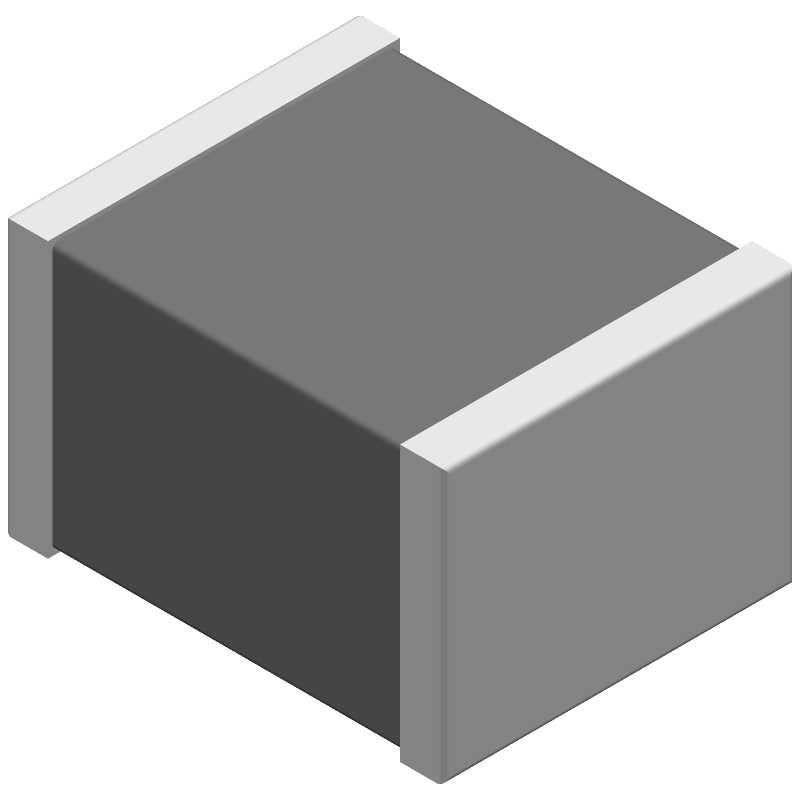

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

C2012X7R1V155M125AB Part Data Attributes

Parametric Data
C2012X7R1V155M125AB TDK Corporation
Buy Now Datasheet
Compare Parts:
C2012X7R1V155M125AB TDK Corporation Ceramic Capacitor, Multilayer, Ceramic, 35V, 20% +Tol, 20% -Tol, X7R, 15% TC, 1.5uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Not Recommended
Package Description Chip
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 24 Weeks
Capacitance 1.5 µF
Capacitor Type Ceramic Capacitor
Dielectric Material Ceramic
Height 1.25 Mm
JESD-609 Code e3
Length 2 Mm
Mounting Feature Surface Mount
Multilayer Yes
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape Rectangular Package
Package Style Smt
Packing Method Tr, 7 Inch
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 35 V
Size Code 0805
Surface Mount Yes
Temperature Characteristics Code X7R
Temperature Coefficient 15% Ppm/°C
Terminal Finish Matte Tin (Sn) - With Nickel (Ni) Barrier
Terminal Shape Wraparound
Width 1.25 Mm

Alternate Parts for C2012X7R1V155M125AB

This table gives cross-reference parts and alternative options found for C2012X7R1V155M125AB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of C2012X7R1V155M125AB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
C2012X7R1V155M(125AB) TDK Corporation Check for Price CAPACITOR, CERAMIC, MULTILAYER, 35 V, X7R, 1.5 uF, SURFACE MOUNT, 0805, CHIP, ROHS COMPLIANT C2012X7R1V155M125AB vs C2012X7R1V155M(125AB)
CGA4J1X7R1V155M125AC TDK Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 35V, 20% +Tol, 20% -Tol, X7R, 15% TC, 1.5uF, Surface Mount, 0805, CHIP, HALOGEN FREE, ROHS AND REACH COMPLIANT C2012X7R1V155M125AB vs CGA4J1X7R1V155M125AC
