CA02P Information
CA02P by XP Power is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for CA02P
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
78Y6046
|
Newark | Dc-Dc Converter, 1 O/P, 200V, 5000Ua, High Voltage Power Supply Type:Regulated, Polarity:Positive Output, Dc/Dc Converter Output Type:Fixed, Adjustable, Power Rating:1W, Output Current Max:5Ma, Power Supply Mounting:Through Hole Rohs Compliant: Yes RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$366.0500 / $375.7300 | Buy Now |
|
DISTI #
84Y5661
|
Newark | Dc-Dc Converter, 1 O/P, 200V, 5000Ua, |Xp Power CA02P RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$373.4600 / $378.3100 | Buy Now |
|
DISTI #
1470-3263-ND
|
DigiKey | DC DC CONVERTER 200V 1W Min Qty: 1 Container: Box |
0 Box |
|
$255.2602 / $322.5900 | Buy Now |
|
DISTI #
209-CA02P
|
Mouser Electronics | DC/DC Converters - Through Hole SINGLE O/P, DC-HV DC PCB MOUNT, 1W,+200V RoHS: Compliant | 3 |
|
$312.9100 / $322.5900 | Buy Now |
|
DISTI #
71928375
|
RS | DC-DC CONVERTER, THRU HOLE, DIP, 1W, 200V@5MA, 11.5-15.5V IN, CA SERIES Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks, 0 Days Container: Bulk | 0 |
|
$369.3400 / $401.4500 | RFQ |
|
DISTI #
CA02P
|
TME | Converter: DC/DC, 1W, Uin: 12VDC, Uout: 0÷200VDC, Iout: 5mA, THT, CA Min Qty: 1 | 0 |
|
$299.7600 / $379.9800 | RFQ |
CA02P CAD Models
-

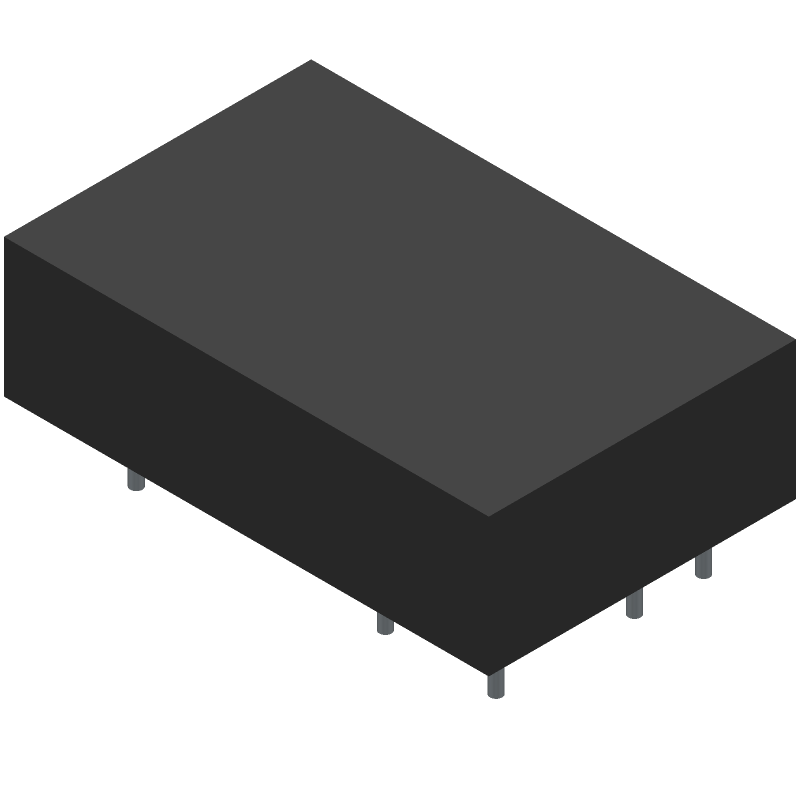

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
CA02P Part Data Attributes
|
|
CA02P
XP Power
Buy Now
Datasheet
|
Compare Parts:
CA02P
XP Power
DC-DC Regulated Power Supply Module, 1 Output, 1W, Hybrid
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Package-9 | |
| ECCN Code | EAR99 | |
| Analog IC - Other Type | Dc-Dc Regulated Power Supply Module | |
| Input Voltage-Max | 15.5 V | |
| Input Voltage-Min | 11.5 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-XXMA-P9 | |
| Length | 44.45 Mm | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 9 | |
| Operating Temperature-Max | 50 °C | |
| Operating Temperature-Min | -10 °C | |
| Output Voltage-Max | 200 V | |
| Output Voltage-Min | ||
| Package Body Material | Unspecified | |
| Package Code | XMA | |
| Package Shape | Rectangular | |
| Package Style | Microelectronic Assembly | |
| Peak Reflow Temperature (Cel) | Not Specified | |
| Seated Height-Max | 13.21 Mm | |
| Surface Mount | No | |
| Technology | Hybrid | |
| Temperature Grade | Commercial | |
| Terminal Form | Pin/Peg | |
| Terminal Position | Unspecified | |
| Time@Peak Reflow Temperature-Max (s) | Not Specified | |
| Total Power Output-Max | 1 W | |
| Trim/Adjustable Output | Yes | |
| Width | 28.19 Mm |
