CD4518BE Information
CD4518BE by Texas Instruments is a Counter.
Counters are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| CD4518BEE4 | Texas Instruments | CMOS Dual BCD Up-Counter 16-PDIP -55 to 125 | |
| CD4518BE | Texas Instruments | CMOS Dual BCD Up-Counter 16-PDIP -55 to 125 |
Price & Stock for CD4518BE
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
33AH3824
|
Newark | Ic, 4000 Cmos, 4518, Dip16, 18V, Logic Family/Base Number:Cd4518, Counter Type:Bcd, Up, Clock Frequency:8Mhz, Count Maximum:9, Logic Case Style:Dip, No. Of Pins:16Pins, Supply Voltage Min:3V, Supply Voltage Max:18V, Logic Ic Rohs Compliant: Yes |Texas Instruments CD4518BE RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
DISTI #
CD4518BE
|
TME | IC: digital, BCD,up counter, Ch: 2, CMOS, THT, DIP16, CD4000 Min Qty: 1 | 761 |
|
$0.4260 / $0.9300 | Buy Now |
|
|
Ameya Holding Limited | Dual Up Counters | 55 |
|
RFQ | |
|
|
Chip 1 Exchange | INSTOCK | 1300 |
|
RFQ | |
|
DISTI #
CD4518BE
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tube | 984 |
|
$0.4240 / $0.9480 | Buy Now |
|
|
Chip Stock | ICBCDCOUNTERDUAL4-BIT16DIP", CounterICBCDCounter2Element4BitPositive,Negative16-PDIP", | 11500 |
|
RFQ | |
|
|
Component Electronics, Inc | DIP 16P TUBE | 15 |
|
$0.3000 / $0.4600 | Buy Now |
|
|
LCSC | 2 8MHz DIP-16 Counters Dividers RoHS | 99 |
|
$0.4225 / $0.8744 | Buy Now |
|
|
New Advantage Corporation | IC-4518 CMOS 4-BIT BINRY DECOD./DEMULTIPL DIP16 TI RoHS: Compliant Min Qty: 1 Package Multiple: 100 | 788 |
|
$1.0600 / $1.1400 | Buy Now |
|
|
Win Source Electronics | IC BCD UP COUNTER DUAL 16-DIP | 10000 |
|
$0.3546 / $0.5318 | Buy Now |
US Tariff Estimator: CD4518BE by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for CD4518BE
CD4518BE CAD Models
-

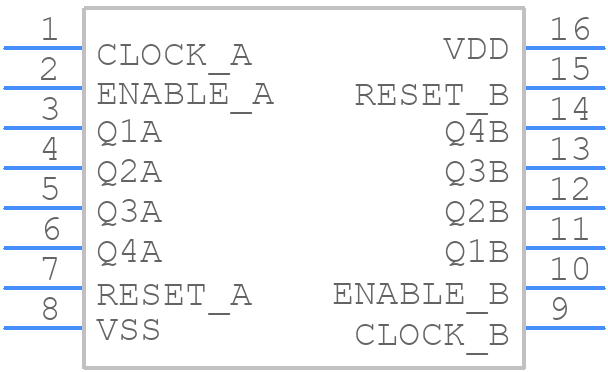

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
CD4518BE Part Data Attributes
|
|
CD4518BE
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD4518BE
Texas Instruments
CMOS Dual BCD Up-Counter 16-PDIP -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | DIP | |
| Package Description | Dip, Dip16,.3 | |
| Pin Count | 16 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Additional Feature | Gated Clock; Schmitt Trigger On Clock Input | |
| Count Direction | Up | |
| Family | 4000/14000/40000 | |
| JESD-30 Code | R-PDIP-T16 | |
| JESD-609 Code | e4 | |
| Length | 19.3 Mm | |
| Load Capacitance (CL) | 50 Pf | |
| Load/Preset Input | No | |
| Logic IC Type | Decade Counter | |
| Max Frequency@Nom-Sup | 1500000 Hz | |
| Max I(ol) | 0.0015 A | |
| Mode of Operation | Synchronous | |
| Number of Bits | 4 | |
| Number of Functions | 2 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | DIP | |
| Package Equivalence Code | DIP16,.3 | |
| Package Shape | Rectangular | |
| Package Style | In-Line | |
| Packing Method | Tube | |
| Power Supply Current-Max (ICC) | 0.03 Ma | |
| Prop. Delay@Nom-Sup | 230 Ns | |
| Propagation Delay (tpd) | 560 Ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 5.08 Mm | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | No | |
| Technology | Cmos | |
| Temperature Grade | Military | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Through-Hole | |
| Terminal Pitch | 2.54 Mm | |
| Terminal Position | Dual | |
| Trigger Type | Positive Edge | |
| Width | 6.35 Mm | |
| fmax-Min | 4 Mhz |
