CGA5C2NP01H472J060AA Information
CGA5C2NP01H472J060AA by TDK Corporation is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for CGA5C2NP01H472J060AA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
445-12840-1-ND
|
DigiKey | CAP CER 4700PF 50V NP0 1206 Min Qty: 1 Lead time: 24 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1595 In Stock |
|
$0.0889 / $0.3600 | Buy Now |
|
DISTI #
CGA5C2NP01H472J060AA
|
Avnet Americas | - Tape and Reel (Alt: CGA5C2NP01H472J060AA) COO: Japan RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 24 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.0619 / $0.0708 | Buy Now |
|
DISTI #
810-CGA5C2NP01H472JA
|
Mouser Electronics | Multilayer Ceramic Capacitors MLCC - SMD/SMT SUGGESTED ALTERNATE 810-CGA4C2NP01H682JA RoHS: Compliant | 2025 |
|
$0.0810 / $0.3600 | Buy Now |
|
DISTI #
CGA5C2NP01H472J060AA
|
Avnet Abacus | (Alt: CGA5C2NP01H472J060AA) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 41 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
US Tariff Estimator: CGA5C2NP01H472J060AA by TDK Corporation
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for CGA5C2NP01H472J060AA
CGA5C2NP01H472J060AA CAD Models
-
Part Symbol
-
Footprint
-

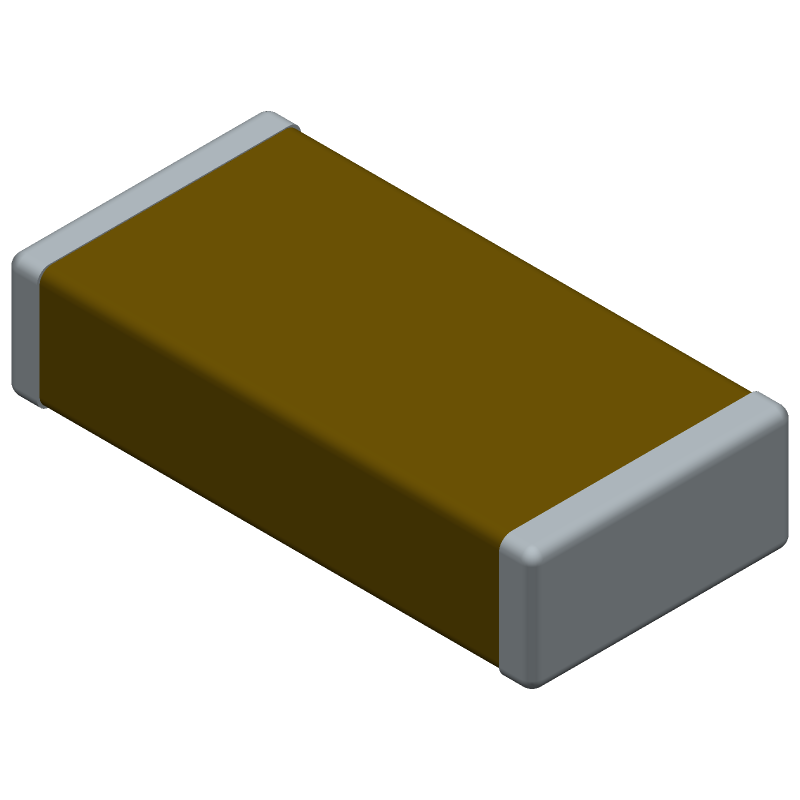

3D Model
