CLP-150-02-G-D by: Samtec Inc

Board Connector, 100 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT

Part Details for CLP-150-02-G-D by Samtec Inc

Results Overview of CLP-150-02-G-D by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

CLP-150-02-G-D Information

CLP-150-02-G-D by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
DAO3W3P543M40LF Amphenol Communications Solutions D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 3W3 Pin Right Angle Solder 40A, Europe Standard, 500 Cycles, Front: Threaded Insert UNC 4.40, Back: Metal Brackets.
DAL3V3P543G30LF Amphenol Communications Solutions D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 3V3 Pin Right Angle Solder 30A, Europe Standard, 500 Cycles, Front: Threaded Insert M3, Back: Harpoons for 1.6mm PCB Thickness.
DAV3V3P543H40LF Amphenol Communications Solutions D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 3V3 Pin Right Angle Solder 40A, Europe Standard, 500 Cycles, Front: Female Screw Lock UNC 4.40, Back: Harpoons for 2.4mm PCB Thickness.

Price & Stock for CLP-150-02-G-D

Part # Distributor Description Stock Price Buy
DISTI # 11P3940
Newark Socket, 1.27Mm, Vertical Through-Hole, 100 Position, Connector Systems:Board-To-Board, Pitch Spacing:1.27Mm, No. Of Rows:2Rows, No. Of Contacts:100Contacts, Connector Mounting:Surface Mount, Product Range:Clp Series Rohs Compliant: Yes |Samtec CLP-150-02-G-D RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $10.2900
  • 10 $9.9100
  • 25 $9.5700
  • 50 $8.6100
  • 100 $7.3700
$7.3700 / $10.2900 Buy Now
DISTI # SAM1154-50-ND
DigiKey CONN RCPT 100POS 0.05 GOLD SMD Min Qty: 1 Lead time: 4 Weeks Container: Tube 1131
In Stock
  • 1 $10.9200
  • 10 $10.5550
  • 25 $10.1872
  • 50 $9.1386
  • 100 $7.8172
  • 250 $6.5759
  • 500 $5.4993
$5.4993 / $10.9200 Buy Now
DISTI # CLP-150-02-G-D
Avnet Americas Conn Socket Strip SKT 100 POS 1.27mm Solder ST SMD Tube - Rail/Tube (Alt: CLP-150-02-G-D) COO: United States of America (the) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Tube 714 Factory Stock
  • 1 $10.7016
  • 100 $7.6218
  • 250 $6.4606
  • 500 $5.4334
  • 1,000 $4.2557
$4.2557 / $10.7016 Buy Now
DISTI # 200-CLP15002GD
Mouser Electronics Headers & Wire Housings Low Profile Dual-Wipe Socket RoHS: Compliant 10
  • 1 $10.9300
  • 27 $10.1900
  • 54 $9.1400
  • 108 $7.8200
  • 252 $6.5800
  • 504 $5.4700
  • 1,008 $4.2600
$4.2600 / $10.9300 Buy Now
Onlinecomponents.com .050" Tiger Claw™ Rugged Reliable Dual Wipe Socket Strip COO: United States RoHS: Compliant 614 Factory Stock
  • 5 $10.2300
  • 25 $9.5700
  • 50 $9.2900
  • 100 $7.9700
  • 250 $6.6400
  • 500 $5.5300
  • 1,000 $4.3200
$4.3200 / $10.2300 Buy Now
Bristol Electronics   5
RFQ
Powell Electronics Low Profile Header Strips with End Shrou Min Qty: 1 471
  • 1 $10.9200
  • 10 $10.5600
  • 25 $10.1900
  • 50 $9.1400
  • 100 $7.8200
$7.8200 / $10.9200 Buy Now
DISTI # 000000000000101979
Sager Headers & Wire Housings Low Profile Dual-Wipe Socket, .050 Pitch Min Qty: 1 614
  • 1 $10.9200
  • 10 $10.5600
  • 25 $10.1900
  • 50 $9.1400
  • 100 $7.8200
  • 250 $6.5800
$6.5800 / $10.9200 Buy Now
Master Electronics .050" Tiger Claw™ Rugged Reliable Dual Wipe Socket Strip COO: United States RoHS: Compliant 614 Factory Stock
  • 5 $10.2300
  • 25 $9.5700
  • 50 $9.2900
  • 100 $7.9700
  • 250 $6.6400
  • 500 $5.5300
  • 1,000 $4.3200
$4.3200 / $10.2300 Buy Now

US Tariff Estimator: CLP-150-02-G-D by Samtec Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

CLP-150-02-G-D
Samtec Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for CLP-150-02-G-D

CLP-150-02-G-D CAD Models

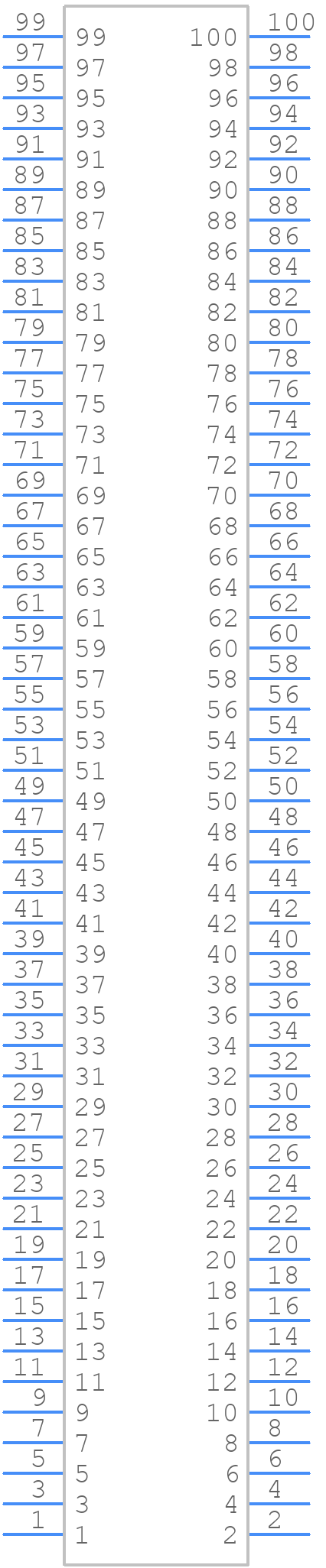

  • Part Symbol

    schematic symbol

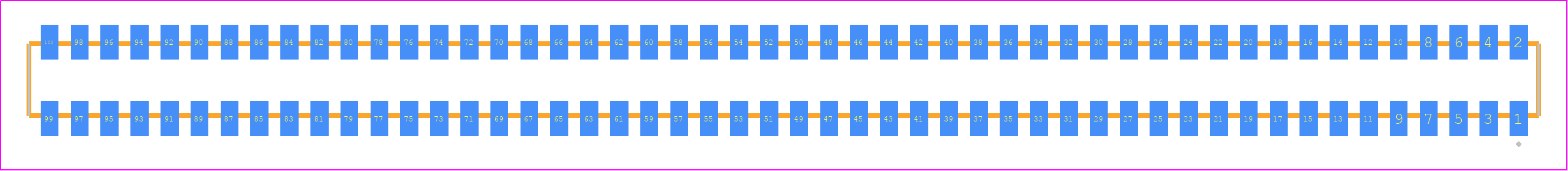

  • Footprint

    pcb footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CLP-150-02-G-D Part Data Attributes

Parametric Data
CLP-150-02-G-D Samtec Inc
Buy Now Datasheet
Compare Parts:
CLP-150-02-G-D Samtec Inc Board Connector, 100 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Body Breadth 0.12 Inch
Body Depth 0.09 Inch
Body Length 2.517 Inch
Body/Shell Style Socket
Connector Type Board Connector
Contact Finish Mating Gold (10) Over Nickel (50)
Contact Finish Termination Gold (Au) - With Nickel (Ni) Barrier
Contact Gender Female
Contact Material Not Specified
Contact Pattern Rectangular
Contact Style Sq Pin-Skt
DIN Conformance No
Durability 100 Cycles
Filter Feature No
IEC Conformance No
Insulator Color Black
Insulator Material Liquid Crystal Polymer
JESD-609 Code e4
MIL Conformance No
Mating Contact Pitch 0.05 Inch
Mating Contact Row Spacing 0.05 Inch
Mating Information Multiple Mating Parts Available
Mixed Contacts No
Mounting Option 1 Locking
Mounting Style Straight
Mounting Type Board
Number Of Connectors One
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option General Purpose
PCB Contact Pattern Rectangular
PCB Contact Row Spacing 3.23 Mm
Plating Thickness 10u Inch
Rated Current (Signal) 3.4 A
Reference Standard Ul
Terminal Pitch 1.27 Mm
Termination Type Surface Mount
Total Number of Contacts 100
UL Flammability Code 94V-0

Alternate Parts for CLP-150-02-G-D

This table gives cross-reference parts and alternative options found for CLP-150-02-G-D. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CLP-150-02-G-D, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
CLP-150-02-FM-D Samtec Inc $6.4970 Board Connector, 100 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, CLP-150-02-G-D vs CLP-150-02-FM-D
CLP-150-02-F-D-P Samtec Inc $6.7152 Board Connector, 100 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Socket, ROHS COMPLIANT CLP-150-02-G-D vs CLP-150-02-F-D-P
CLP-150-02-LM-D Samtec Inc $7.6323 Board Connector, 100 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, CLP-150-02-G-D vs CLP-150-02-LM-D
CLP-150-02-L-D-P Samtec Inc $8.0578 Board Connector, 100 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT CLP-150-02-G-D vs CLP-150-02-L-D-P
CLP-150-02-G-D-K Samtec Inc $8.4954 Board Connector, 100 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Socket, ROHS COMPLIANT CLP-150-02-G-D vs CLP-150-02-G-D-K
CLP-150-02-G-D-TR Samtec Inc Check for Price Board Connector, 100 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT CLP-150-02-G-D vs CLP-150-02-G-D-TR
CLP-150-02-S-D-P-TR Samtec Inc Check for Price Board Connector, CLP-150-02-G-D vs CLP-150-02-S-D-P-TR
CLP-150-02-LTL-D Samtec Inc Check for Price Board Connector, 100 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, CLP-150-02-G-D vs CLP-150-02-LTL-D
CLP-150-02-FM-D-P Samtec Inc Check for Price Board Connector, 100 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, CLP-150-02-G-D vs CLP-150-02-FM-D-P
CLP-150-02-FM-D-TR Samtec Inc Check for Price Board Connector, 100 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, CLP-150-02-G-D vs CLP-150-02-FM-D-TR
Part Number Manufacturer Composite Price Description Compare
87023-950LF Amphenol Communications Solutions Check for Price Board Connector, 100 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle, LEAD FREE CLP-150-02-G-D vs 87023-950LF
87023-650TR Amphenol Communications Solutions Check for Price Board Connector, 100 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle, CLP-150-02-G-D vs 87023-650TR
20021311-000A0T5LF Amphenol FCi Check for Price Board Connector, 100 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle CLP-150-02-G-D vs 20021311-000A0T5LF
20021311-000A0T6LF Amphenol FCi Check for Price Board Connector, 100 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle CLP-150-02-G-D vs 20021311-000A0T6LF
SAM100S-011-2 Thomas & Betts Check for Price Board Connector, 100 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Plug CLP-150-02-G-D vs SAM100S-011-2
87023-950 Amphenol FCi Check for Price Board Connector, 100 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Plug CLP-150-02-G-D vs 87023-950
20021311-000A0T7LF Amphenol Communications Solutions Check for Price Board Connector, 100 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, CLP-150-02-G-D vs 20021311-000A0T7LF
87023-650LF Amphenol FCi Check for Price Board Connector, 100 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle, LEAD FREE CLP-150-02-G-D vs 87023-650LF
84699-650CT Amphenol FCi Check for Price Board Connector, 100 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Plug CLP-150-02-G-D vs 84699-650CT
87022-650CT Amphenol FCi Check for Price Board Connector, 100 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Plug CLP-150-02-G-D vs 87022-650CT
