CR0402-FX-7320GLF by: Bourns Inc

Fixed Resistor, Ruthenium Oxide, 0.0625W, 732ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP, ROHS COMPLIANT

Part Details for CR0402-FX-7320GLF by Bourns Inc

Results Overview of CR0402-FX-7320GLF by Bourns Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Security and Surveillance Computing and Data Storage Financial Technology (Fintech) Healthcare Energy and Power Systems Renewable Energy Automotive

CR0402-FX-7320GLF Information

CR0402-FX-7320GLF by Bourns Inc is a Ruthenium Oxide Resistor.
Ruthenium Oxide Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for CR0402-FX-7320GLF

Part # Distributor Description Stock Price Buy
DISTI # 14P5850
Newark Res 0402 732R 1% 63Mw Tc100 /Tape & Reel - 7" Reel Rohs Compliant: Yes |Bourns CR0402-FX-7320GLF RoHS: Compliant Min Qty: 20000 Package Multiple: 1 Date Code: 0 Container: Tape & Reel 0
  • 10,000 $0.0030
$0.0030 Buy Now
DISTI # 118-CR0402-FX-7320GLFCT-ND
DigiKey RES SMD 732 OHM 1% 1/16W 0402 Min Qty: 1 Lead time: 21 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 105868
In Stock
  • 1 $0.1000
  • 10 $0.0200
  • 25 $0.0144
  • 50 $0.0114
  • 100 $0.0091
  • 250 $0.0070
  • 500 $0.0057
  • 1,000 $0.0041
  • 5,000 $0.0033
  • 10,000 $0.0022
  • 20,000 $0.0013
$0.0013 / $0.1000 Buy Now
DISTI # CR0402-FX-7320GLF
Avnet Americas - Tape and Reel (Alt: CR0402-FX-7320GLF) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 12 Weeks, 0 Days Container: Tape & Reel 20000
  • 10,000 $0.0013
  • 20,000 $0.0012
  • 40,000 $0.0006
  • 60,000 $0.0006
  • 80,000 $0.0006
$0.0006 / $0.0013 Buy Now
DISTI # 652-CR0402-FX7320GLF
Mouser Electronics Thick Film Resistors - SMD 732OHM 1/16WATT 1% RoHS: Compliant 60844
  • 1 $0.1000
  • 10 $0.0080
  • 100 $0.0070
  • 500 $0.0040
  • 2,500 $0.0020
  • 10,000 $0.0020
  • 20,000 $0.0010
$0.0010 / $0.1000 Buy Now
Onlinecomponents.com Thick Film Chip Resistor - 1/16 W - 732 ohm ±1% - ±100ppm/°C - SMD 0402 - RoHS Compliant - Tape&Reel COO: Taiwan RoHS: Compliant 0
  • 10,000 $0.0020
  • 50,000 $0.0010
  • 100,000 $0.0009
  • 150,000 $0.0009
  • 250,000 $0.0008
  • 500,000 $0.0008
  • 1,000,000 $0.0008
$0.0008 / $0.0020 Buy Now
DISTI # CR0402-FX-7320GLF
Avnet Abacus - Tape and Reel (Alt: CR0402-FX-7320GLF) RoHS: Compliant Min Qty: 20000 Package Multiple: 10000 Lead time: 13 Weeks, 0 Days Container: Tape & Reel Abacus - 0
Buy Now
Master Electronics Thick Film Chip Resistor - 1/16 W - 732 ohm ±1% - ±100ppm/°C - SMD 0402 - RoHS Compliant - Tape&Reel COO: Taiwan RoHS: Compliant 0
  • 10,000 $0.0020
  • 50,000 $0.0010
  • 100,000 $0.0009
  • 150,000 $0.0009
  • 250,000 $0.0008
  • 500,000 $0.0008
  • 1,000,000 $0.0008
$0.0008 / $0.0020 Buy Now

US Tariff Estimator: CR0402-FX-7320GLF by Bourns Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

CR0402-FX-7320GLF
Bourns Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for CR0402-FX-7320GLF

CR0402-FX-7320GLF CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

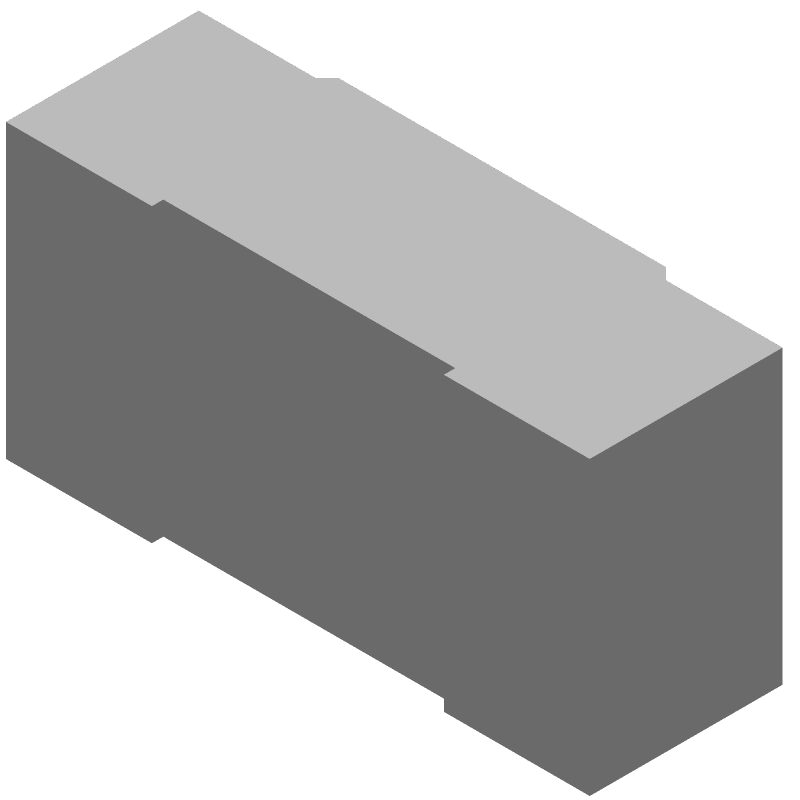

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CR0402-FX-7320GLF Part Data Attributes

Parametric Data
CR0402-FX-7320GLF Bourns Inc
Buy Now Datasheet
Compare Parts:
CR0402-FX-7320GLF Bourns Inc Fixed Resistor, Ruthenium Oxide, 0.0625W, 732ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Package Description Chip
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 12 Weeks
Construction Rectangular
JESD-609 Code e3
Mounting Feature Surface Mount
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.32 Mm
Package Length 1 Mm
Package Style Smt
Package Width 0.5 Mm
Packing Method Tr, Plastic, 7 Inch
Rated Power Dissipation (P) 0.0625 W
Rated Temperature 70 °C
Resistance 732 Ω
Resistor Type Fixed Resistor
Size Code 0402
Surface Mount Yes
Technology Metal Glaze/Thick Film
Temperature Coefficient 100 Ppm/°C
Terminal Finish Matte Tin Over Nickel
Terminal Shape Wraparound
Tolerance 1%
Working Voltage 50 V

Alternate Parts for CR0402-FX-7320GLF

This table gives cross-reference parts and alternative options found for CR0402-FX-7320GLF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CR0402-FX-7320GLF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
BCTS000402-732RFTH Chilisin Electronics Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 732ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP CR0402-FX-7320GLF vs BCTS000402-732RFTH
RTT027320FH3 Ralec Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 732ohm, 50V, 1% +/-Tol, -100,100ppm/Cel, 0402, CR0402-FX-7320GLF vs RTT027320FH3
CR10-7320-FN ASJ Holdings Limited Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 732ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP CR0402-FX-7320GLF vs CR10-7320-FN
CR207320F-13 MERITEK Electronics Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 732ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP, ROHS COMPLIANT CR0402-FX-7320GLF vs CR207320F-13
AC0402FR-10732RL YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 732ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP, HALOGEN FREE AND ROHS COMPLIANT CR0402-FX-7320GLF vs AC0402FR-10732RL
RMCF0402FT732R SEI Stackpole Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.063W, 732ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP CR0402-FX-7320GLF vs RMCF0402FT732R
AR10-7320-FY ASJ Holdings Limited Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 732ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP CR0402-FX-7320GLF vs AR10-7320-FY
KGAS0402R7320F-T10 Thin Film Technology Corp (TFT) Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 732ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP CR0402-FX-7320GLF vs KGAS0402R7320F-T10
RAT027320FH1 Ralec Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 732ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP CR0402-FX-7320GLF vs RAT027320FH1
AR10-7320-FK ASJ Holdings Limited Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 732ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP CR0402-FX-7320GLF vs AR10-7320-FK
equivalents icon

CR0402-FX-7320GLF Related Parts

CR0402-FX-7320GLF Frequently Asked Questions (FAQ)

  • The recommended land pattern for the CR0402-FX-7320GLF is a rectangular pad with a size of 0.5 mm x 0.3 mm, with a non-solder mask defined (NSMD) pad shape. This is to ensure proper soldering and to prevent solder bridging.

  • The CR0402-FX-7320GLF has a maximum operating temperature of 150°C, but it's recommended to derate the power rating at high temperatures. For applications above 125°C, it's recommended to consult with Bourns' application engineers to ensure the component meets the specific requirements.

  • The CR0402-FX-7320GLF has a moisture sensitivity level (MSL) of 1, which means it can withstand normal humidity levels. However, for applications in extremely high-humidity environments, it's recommended to take additional precautions such as conformal coating or hermetic sealing to prevent moisture ingress.

  • The CR0402-FX-7320GLF is designed to withstand normal vibration levels, but for applications with extreme vibration, it's recommended to consult with Bourns' application engineers to ensure the component meets the specific requirements. Additional mechanical support or fixturing may be necessary to prevent component damage.

  • Yes, the CR0402-FX-7320GLF is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the requirements for lead-free and halogen-free materials.
