CRGH0805F412R by: TE Connectivity

Fixed Resistor, Metal Glaze/thick Film, 0.33W, 412ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805

Part Details for CRGH0805F412R by TE Connectivity

Results Overview of CRGH0805F412R by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

CRGH0805F412R Information

CRGH0805F412R by TE Connectivity is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for CRGH0805F412R

Part # Distributor Description Stock Price Buy
DISTI # 94X6124
Newark Crgh0805 1% 412R 0.33W/ Rel |Te Connectivity Neohm CRGH0805F412R RoHS: Not Compliant Min Qty: 20000 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 5,000 $0.0130
$0.0130 Buy Now
DISTI # 5-1879509-7
Avnet Americas SMD Chip Resistor, 412 Ohm, ? 1%, 330 mW, 0805 [2012 Metric], Thick Film, High Power - Tape and Reel (Alt: 5-1879509-7) COO: United States of America (the) RoHS: Compliant Min Qty: 20000 Package Multiple: 20000 Lead time: 12 Weeks, 3 Days Container: Tape & Reel 0
  • 20,000 $0.0126
  • 200,000 $0.0117
  • 400,000 $0.0106
  • 1,000,000 $0.0093
  • 2,000,000 $0.0092
$0.0092 / $0.0126 Buy Now
DISTI # 279-CRGH0805F412R
Mouser Electronics Thick Film Resistors - SMD CRGH0805 1% 412R 0.33W RoHS: Compliant 0
  • 1 $0.1700
  • 10 $0.0990
  • 100 $0.0420
  • 250 $0.0340
  • 500 $0.0310
  • 1,000 $0.0290
  • 5,000 $0.0160
  • 10,000 $0.0140
$0.0140 / $0.1700 Order Now
Onlinecomponents.com Thick Film Resistor - SMD 0805 - 412 ohm (+/-) 1% - 1/3 W - 150V - TCR (+/-) 100ppm/°C - -55°C to +155°C - Tape&Reel COO: United States RoHS: Compliant 0
  • 5,000 $0.0157
  • 10,000 $0.0132
  • 25,000 $0.0124
  • 50,000 $0.0118
  • 100,000 $0.0115
  • 150,000 $0.0112
  • 250,000 $0.0108
  • 500,000 $0.0098
$0.0098 / $0.0157 Buy Now
DISTI # 5-1879509-7
Avnet Abacus SMD Chip Resistor 412 Ohm 1 330 mW 0805 2012 Metric Thick Film High Power (Alt: 5-1879509-7) RoHS: Compliant Min Qty: 20000 Package Multiple: 20000 Lead time: 15 Weeks, 0 Days Abacus - 0
RFQ
Master Electronics Thick Film Resistor - SMD 0805 - 412 ohm (+/-) 1% - 1/3 W - 150V - TCR (+/-) 100ppm/°C - -55°C to +155°C - Tape&Reel COO: United States RoHS: Compliant 0
  • 5,000 $0.0157
  • 10,000 $0.0132
  • 25,000 $0.0124
  • 50,000 $0.0118
  • 100,000 $0.0115
  • 150,000 $0.0112
  • 250,000 $0.0108
  • 500,000 $0.0098
$0.0098 / $0.0157 Buy Now

US Tariff Estimator: CRGH0805F412R by TE Connectivity

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

CRGH0805F412R
TE Connectivity
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for CRGH0805F412R

CRGH0805F412R CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

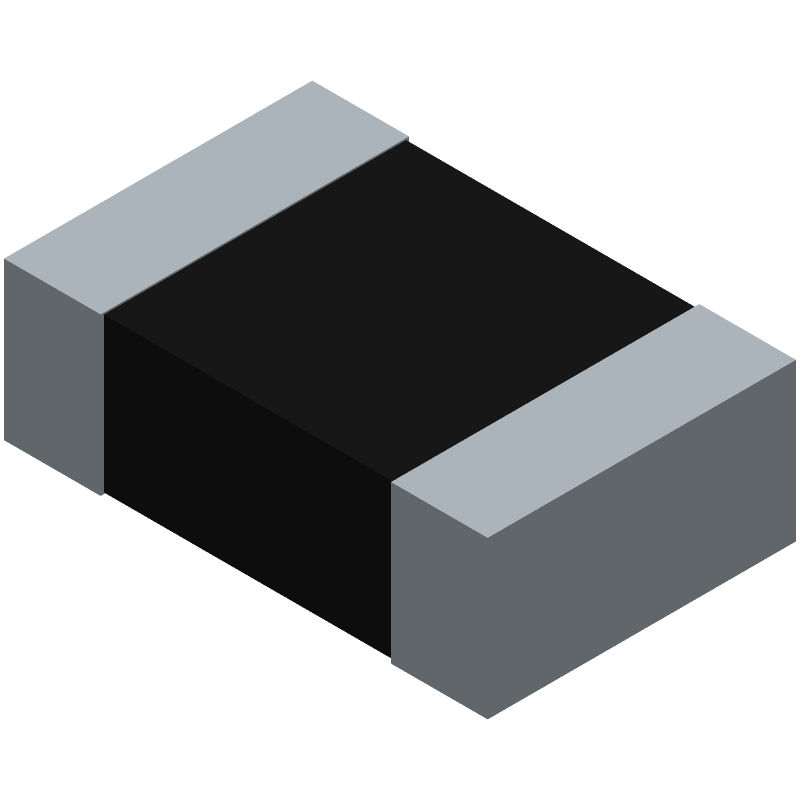

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CRGH0805F412R Part Data Attributes

Parametric Data
CRGH0805F412R TE Connectivity
Buy Now Datasheet
Compare Parts:
CRGH0805F412R TE Connectivity Fixed Resistor, Metal Glaze/thick Film, 0.33W, 412ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805
Rohs Code Yes
Part Life Cycle Code Active
Package Description Chip
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 14 Weeks, 1 Day
Construction Rectangular
Mounting Feature Surface Mount
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.55 Mm
Package Length 2 Mm
Package Shape Rectangular Package
Package Style Smt
Package Width 1.25 Mm
Packing Method Tr, Paper, 7 Inch
Physical Dimension 2mm X 1.25mm X .55mm
Rated Power Dissipation (P) 0.33 W
Rated Temperature 70 °C
Resistance 412 Ω
Resistor Type Fixed Resistor
Size Code 0805
Surface Mount Yes
Technology Metal Glaze/Thick Film
Temperature Coefficient 100 Ppm/°C
Terminal Shape Wraparound
Tolerance 1%
Working Voltage 150 V

Alternate Parts for CRGH0805F412R

This table gives cross-reference parts and alternative options found for CRGH0805F412R. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CRGH0805F412R, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
HQ05W3F4120T5E Royal Electronic Factory (Thailand) Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.33W, 412ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP CRGH0805F412R vs HQ05W3F4120T5E
RK73H2AATTE4120F KOA Speer Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 412ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP CRGH0805F412R vs RK73H2AATTE4120F
VRNSGG-4120-F Cyntec Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 412ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP CRGH0805F412R vs VRNSGG-4120-F
PWC0805AS-412RFT1 TT Electronics Welwyn Components Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 412ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805 CRGH0805F412R vs PWC0805AS-412RFT1
PWC0805AS-412RFT1 TT Electronics Resistors Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 412ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805 CRGH0805F412R vs PWC0805AS-412RFT1
PWC0805AS-412RFPB TT Electronics Welwyn Components Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 412ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805 CRGH0805F412R vs PWC0805AS-412RFPB
HP05W3F4120CCE Royal Electronic Factory (Thailand) Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.33W, 412ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP CRGH0805F412R vs HP05W3F4120CCE
RK73H2AATTP4120F KOA Speer Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 412ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP CRGH0805F412R vs RK73H2AATTP4120F
PWC0805412RFT1 TT Electronics Welwyn Components Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.25W, 412ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805 CRGH0805F412R vs PWC0805412RFT1
HP05W3F4120TDE Royal Electronic Factory (Thailand) Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.33W, 412ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP CRGH0805F412R vs HP05W3F4120TDE
