Resistors / Fixed Resistors / CRGH1206F412R
Datasheets
CRGH1206F412R by: TE Connectivity

Fixed Resistor, Metal Glaze/thick Film, 0.5W, 412ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206

Part Details for CRGH1206F412R by TE Connectivity

Results Overview of CRGH1206F412R by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

CRGH1206F412R Information

CRGH1206F412R by TE Connectivity is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for CRGH1206F412R

Part # Distributor Description Stock Price Buy
DISTI # 94X6774
Newark Crgh1206 1% 412R 0.5W/ Rel |Te Connectivity Neohm CRGH1206F412R RoHS: Not Compliant Min Qty: 20000 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 5,000 $0.0210
$0.0210 Buy Now
DISTI # 5-1879514-7
Avnet Americas Res Thick Film 1206 412 Ohm 1% 1/2W ?100ppm/?C Molded SMD SMD T/R - Tape and Reel (Alt: 5-1879514-7) COO: United States of America (the) RoHS: Compliant Min Qty: 20000 Package Multiple: 20000 Lead time: 12 Weeks, 3 Days Container: Tape & Reel 0
  • 20,000 $0.0207
  • 200,000 $0.0192
  • 400,000 $0.0174
  • 1,000,000 $0.0154
  • 2,000,000 $0.0151
$0.0151 / $0.0207 Buy Now
DISTI # 279-CRGH1206F412R
Mouser Electronics Thick Film Resistors - SMD CRGH1206 1% 412R 0.5W RoHS: Compliant 0
  • 1 $0.2100
  • 10 $0.0990
  • 100 $0.0560
  • 250 $0.0460
  • 500 $0.0420
  • 1,000 $0.0390
  • 5,000 $0.0230
  • 10,000 $0.0220
$0.0220 / $0.2100 Order Now
Onlinecomponents.com Thick Film Resistor - SMD 1206 - 412 ohm (+/-) 1% - 1/2 W - 200V - TCR (+/-) 100ppm/°C - -55°C to +155°C - Tape&Reel COO: United States RoHS: Compliant 0
  • 5,000 $0.0217
  • 10,000 $0.0204
  • 25,000 $0.0195
  • 50,000 $0.0192
  • 100,000 $0.0184
  • 150,000 $0.0184
  • 250,000 $0.0171
  • 500,000 $0.0161
$0.0161 / $0.0217 Buy Now
DISTI # 5-1879514-7
Avnet Abacus Res Thick Film 1206 412 Ohm 1 12W 100ppmC Molded SMD SMD TR (Alt: 5-1879514-7) RoHS: Compliant Min Qty: 20000 Package Multiple: 20000 Lead time: 15 Weeks, 0 Days Abacus - 0
RFQ
Master Electronics Thick Film Resistor - SMD 1206 - 412 ohm (+/-) 1% - 1/2 W - 200V - TCR (+/-) 100ppm/°C - -55°C to +155°C - Tape&Reel COO: United States RoHS: Compliant 0
  • 5,000 $0.0217
  • 10,000 $0.0204
  • 25,000 $0.0195
  • 50,000 $0.0192
  • 100,000 $0.0184
  • 150,000 $0.0184
  • 250,000 $0.0171
  • 500,000 $0.0161
$0.0161 / $0.0217 Buy Now

US Tariff Estimator: CRGH1206F412R by TE Connectivity

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

CRGH1206F412R
TE Connectivity
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for CRGH1206F412R

CRGH1206F412R CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

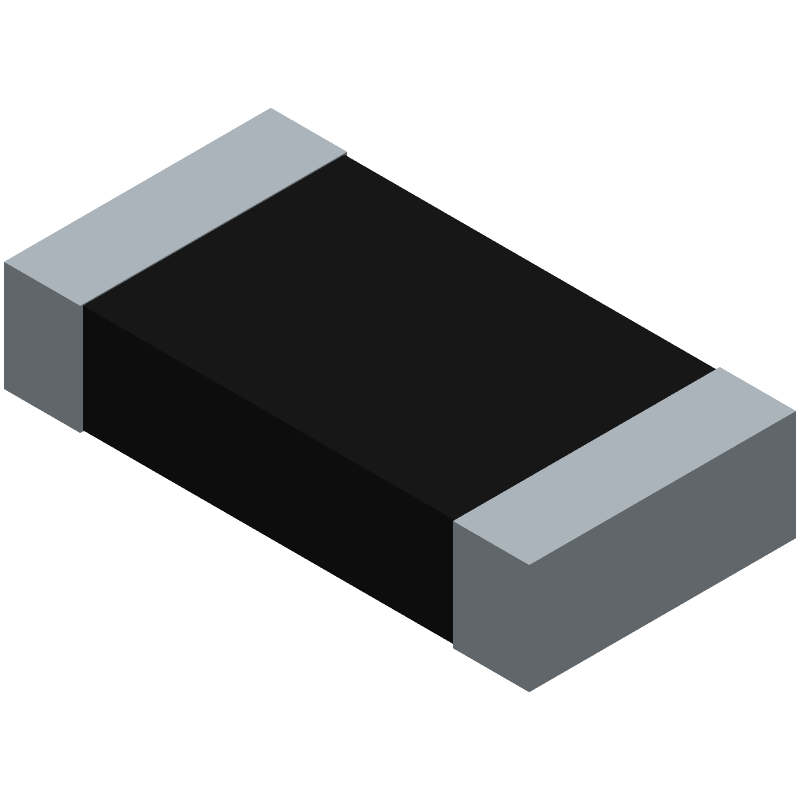

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CRGH1206F412R Part Data Attributes

Parametric Data
CRGH1206F412R TE Connectivity
Buy Now Datasheet
Compare Parts:
CRGH1206F412R TE Connectivity Fixed Resistor, Metal Glaze/thick Film, 0.5W, 412ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206
Rohs Code Yes
Part Life Cycle Code Active
Package Description Chip
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 14 Weeks, 1 Day
Construction Rectangular
Mounting Feature Surface Mount
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.55 Mm
Package Length 3.1 Mm
Package Shape Rectangular Package
Package Style Smt
Package Width 1.55 Mm
Packing Method Tr, Paper, 7 Inch
Physical Dimension 3.1mm X 1.55mm X .55mm
Rated Power Dissipation (P) 0.5 W
Rated Temperature 70 °C
Resistance 412 Ω
Resistor Type Fixed Resistor
Size Code 1206
Surface Mount Yes
Technology Metal Glaze/Thick Film
Temperature Coefficient 100 Ppm/°C
Terminal Shape Wraparound
Tolerance 1%
Working Voltage 200 V

Alternate Parts for CRGH1206F412R

This table gives cross-reference parts and alternative options found for CRGH1206F412R. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CRGH1206F412R, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
SF12P4120FQP Walsin Technology Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.5W, 412ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP CRGH1206F412R vs SF12P4120FQP
HPWR06FWEU4120A Hitano Enterprise Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.5W, 412ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206 CRGH1206F412R vs HPWR06FWEU4120A
HP06W2F4120CDE Royal Electronic Factory (Thailand) Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.5W, 412ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP CRGH1206F412R vs HP06W2F4120CDE
HP06W2F4120T4E Royal Electronic Factory (Thailand) Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.5W, 412ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206 CRGH1206F412R vs HP06W2F4120T4E
RMCH32K4120FB Kamaya Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.5W, 412ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP CRGH1206F412R vs RMCH32K4120FB
CR-06FHA--412RAC Viking Tech Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.5W, 412ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP CRGH1206F412R vs CR-06FHA--412RAC
CRS1206QFX-4120ELF Bourns Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.5W, 412ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP CRGH1206F412R vs CRS1206QFX-4120ELF
ST1206F412RP200.5W Ever Ohms Technology Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.5W, 412ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206 CRGH1206F412R vs ST1206F412RP200.5W
PWR06FWEU4120 Viking Tech Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.5W, 412ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP CRGH1206F412R vs PWR06FWEU4120
RPG06K4120FT Fenghua (HK) Electronics Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.5W, 412ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP CRGH1206F412R vs RPG06K4120FT
