CRT0402ADY-1002GLF by: Bourns Inc

Fixed Resistor, Thin Film, 0.0625W, 10000ohm, 50V, 0.5% +/-Tol, 25ppm/Cel, Surface Mount, 0402, CHIP

Part Details for CRT0402ADY-1002GLF by Bourns Inc

Results Overview of CRT0402ADY-1002GLF by Bourns Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

CRT0402ADY-1002GLF Information

CRT0402ADY-1002GLF by Bourns Inc is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for CRT0402ADY-1002GLF

Part # Distributor Description Stock Price Buy
DISTI # 27AM3384
Newark Res, 10K, 0.0625W, 50V, Thin Film, 0402 Rohs Compliant: Yes |Bourns CRT0402ADY-1002GLF RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape 9800
  • 10 $0.0920
  • 25 $0.0810
  • 50 $0.0690
  • 100 $0.0580
  • 250 $0.0560
  • 500 $0.0540
$0.0540 / $0.0920 Buy Now
DISTI # 118-CRT0402ADY-1002GLFCT-ND
DigiKey RES THIN FILM 0402 10K 0.5% Min Qty: 1 Lead time: 22 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 48176
In Stock
  • 1 $0.1000
  • 10 $0.0640
  • 25 $0.0584
  • 50 $0.0492
  • 100 $0.0477
  • 250 $0.0444
  • 500 $0.0242
  • 10,000 $0.0397
  • 20,000 $0.0209
  • 30,000 $0.0208
$0.0208 / $0.1000 Buy Now
DISTI # CRT0402ADY-1002GLF
Avnet Americas RESTHINFILM 0402 10KR 0.5% 63MW TC25 - Tape and Reel (Alt: CRT0402ADY-1002GLF) COO: Taiwan (Province of China) RoHS: Not Compliant Min Qty: 50000 Package Multiple: 10000 Lead time: 13 Weeks, 0 Days Container: Tape & Reel 0
  • 50,000 $0.0213
  • 100,000 $0.0201
  • 200,000 $0.0196
  • 400,000 $0.0191
  • 800,000 $0.0186
$0.0186 / $0.0213 Buy Now
DISTI # 652-CRT0402ADY-1002G
Mouser Electronics Thin Film Resistors - SMD ResThinFilm 0402 10kR 0.5% 63mW TC25 RoHS: Compliant 50426
  • 1 $0.1000
  • 10 $0.0500
  • 100 $0.0450
  • 500 $0.0400
  • 10,000 $0.0240
  • 20,000 $0.0200
$0.0200 / $0.1000 Buy Now
DISTI # V99:2348_29293462
Arrow Electronics Res Thin Film 0402 10K Ohm 0.5% 0.063W(1/16W) ±25ppm/°C Sulfur Resistant Pad SMD T/R Automotive AEC-Q200 COO: Taiwan RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2407 Americas - 9994
  • 1 $0.0860
  • 10 $0.0545
  • 25 $0.0492
  • 50 $0.0410
  • 100 $0.0394
  • 250 $0.0362
  • 500 $0.0196
  • 10,000 $0.0194
  • 20,000 $0.0180
$0.0180 / $0.0860 Buy Now
DISTI # 75629813
RS RESTHINFILM 0402 10KR 0.5% 63MW TC25 Min Qty: 50000 Package Multiple: 10000 Lead time: 12 Weeks, 0 Days Container: Tape & Reel 0
  • 50,000 $0.0370
$0.0370 RFQ
Onlinecomponents.com Resistor - ThinFilm - 0402 - 10kohm - 0.5% - 63mW - ±25ppm/°C COO: Taiwan RoHS: Compliant 0
  • 10,000 $0.0233
  • 30,000 $0.0222
  • 50,000 $0.0216
  • 100,000 $0.0204
  • 150,000 $0.0201
  • 250,000 $0.0196
  • 500,000 $0.0191
$0.0191 / $0.0233 Buy Now
DISTI # 84347516
Verical Res Thin Film 0402 10K Ohm 0.5% 0.063W(1/16W) ±25ppm/°C Sulfur Resistant Pad SMD T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 1593 Package Multiple: 1 Americas - 10000
  • 1,613 $0.0543
  • 2,000 $0.0393
  • 5,000 $0.0392
$0.0392 / $0.0543 Buy Now
DISTI # 83688284
Verical Res Thin Film 0402 10K Ohm 0.5% 0.063W(1/16W) ±25ppm/°C Sulfur Resistant Pad SMD T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 309 Package Multiple: 1 Date Code: 2407 Americas - 9994
  • 309 $0.0860
$0.0860 Buy Now
DISTI # CRT0402ADY-1002GLF
TTI Thin Film Resistors - SMD ResThinFilm 0402 10kR 0.5% 63mW TC25 RoHS: Compliant pbFree: Pb-Free Min Qty: 50000 Package Multiple: 10000 Container: Reel Americas - 0
  • 50,000 $0.0196
$0.0196 Buy Now
DISTI # V99:2348_29293462
Arrow Electronics Res Thin Film 0402 10K Ohm 0.5% 0.063W(1/16W) ±25ppm/°C Sulfur Resistant Pad SMD T/R Automotive AEC-Q200 COO: Taiwan RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2407 Americas - 9994
  • 1 $0.0860
  • 10 $0.0545
  • 25 $0.0492
  • 50 $0.0410
  • 100 $0.0394
  • 250 $0.0362
  • 500 $0.0196
  • 10,000 $0.0194
  • 20,000 $0.0180
$0.0180 / $0.0860 Buy Now
DISTI # 84347516
Verical Res Thin Film 0402 10K Ohm 0.5% 0.063W(1/16W) ±25ppm/°C Sulfur Resistant Pad SMD T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 1593 Package Multiple: 1 Americas - 10000
  • 1,613 $0.0543
  • 2,000 $0.0393
  • 5,000 $0.0392
$0.0392 / $0.0543 Buy Now
DISTI # 83688284
Verical Res Thin Film 0402 10K Ohm 0.5% 0.063W(1/16W) ±25ppm/°C Sulfur Resistant Pad SMD T/R Automotive AEC-Q200 COO: Taiwan RoHS: Compliant Min Qty: 309 Package Multiple: 1 Date Code: 2407 Americas - 9994
  • 309 $0.0860
$0.0860 Buy Now
DISTI # V99:2348_29293462
Arrow Electronics Res Thin Film 0402 10K Ohm 0.5% 0.063W(1/16W) ±25ppm/°C Sulfur Resistant Pad SMD T/R Automotive AEC-Q200 COO: Taiwan RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2407 Americas - 9994
  • 1 $0.0860
  • 10 $0.0545
  • 25 $0.0492
  • 50 $0.0410
  • 100 $0.0394
  • 250 $0.0362
  • 500 $0.0196
  • 10,000 $0.0194
  • 20,000 $0.0180
$0.0180 / $0.0860 Buy Now
DISTI # 84347516
Verical Res Thin Film 0402 10K Ohm 0.5% 0.063W(1/16W) ±25ppm/°C Sulfur Resistant Pad SMD T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 1593 Package Multiple: 1 Americas - 10000
  • 1,613 $0.0543
  • 2,000 $0.0393
  • 5,000 $0.0392
$0.0392 / $0.0543 Buy Now
DISTI # 83688284
Verical Res Thin Film 0402 10K Ohm 0.5% 0.063W(1/16W) ±25ppm/°C Sulfur Resistant Pad SMD T/R Automotive AEC-Q200 COO: Taiwan RoHS: Compliant Min Qty: 309 Package Multiple: 1 Date Code: 2407 Americas - 9994
  • 309 $0.0860
$0.0860 Buy Now
DISTI # CRT0402ADY-1002GLF
Chip One Stop Passives RoHS: Compliant Min Qty: 10 Lead time: 0 Weeks, 1 Days Container: Cut Tape 10000
  • 10 $0.0543
  • 100 $0.0393
  • 200 $0.0392
  • 500 $0.0195
  • 1,000 $0.0194
  • 2,000 $0.0166
  • 5,000 $0.0157
$0.0157 / $0.0543 Buy Now
LCSC 62.5mW 50V Thin Film Resistor 0.5% 0402 Chip Resistor - Surface Mount RoHS 200
  • 5 $0.0708
  • 50 $0.0693
  • 150 $0.0683
  • 500 $0.0673
$0.0673 / $0.0708 Buy Now
Master Electronics Resistor - ThinFilm - 0402 - 10kohm - 0.5% - 63mW - ±25ppm/°C COO: Taiwan RoHS: Compliant 0
  • 10,000 $0.0233
  • 30,000 $0.0222
  • 50,000 $0.0216
  • 100,000 $0.0204
  • 150,000 $0.0201
  • 250,000 $0.0196
  • 500,000 $0.0191
$0.0191 / $0.0233 Buy Now

US Tariff Estimator: CRT0402ADY-1002GLF by Bourns Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

CRT0402ADY-1002GLF
Bourns Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for CRT0402ADY-1002GLF

CRT0402ADY-1002GLF CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

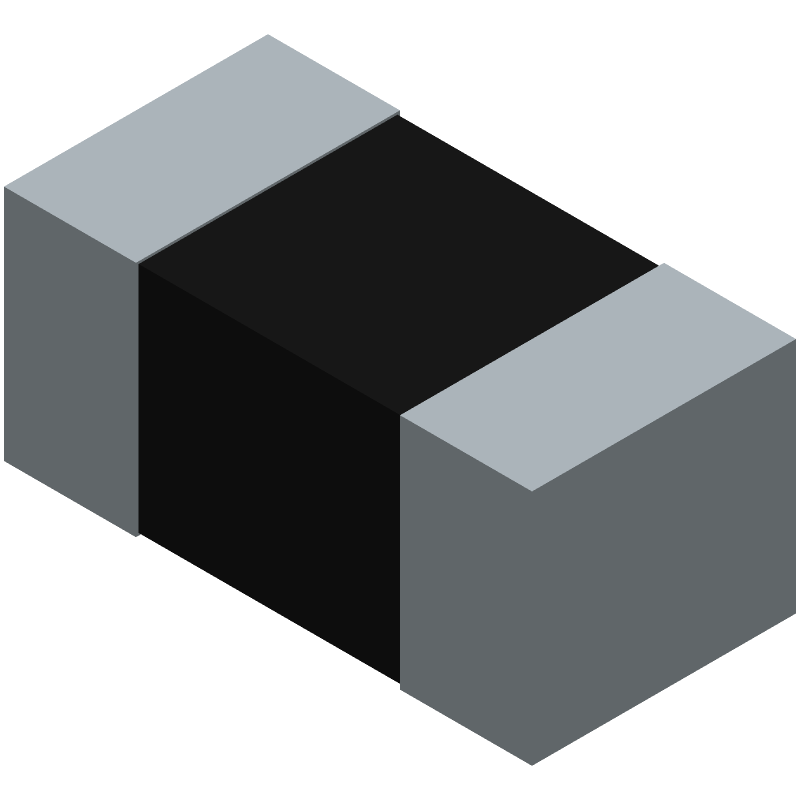

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CRT0402ADY-1002GLF Part Data Attributes

Parametric Data
CRT0402ADY-1002GLF Bourns Inc
Buy Now Datasheet
Compare Parts:
CRT0402ADY-1002GLF Bourns Inc Fixed Resistor, Thin Film, 0.0625W, 10000ohm, 50V, 0.5% +/-Tol, 25ppm/Cel, Surface Mount, 0402, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Package Description Chip
Reach Compliance Code Unknown
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 13 Weeks
Additional Feature Anti-Sulfur, Precision
Construction Rectangular
Mounting Feature Surface Mount
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.35 Mm
Package Length 1 Mm
Package Style Smt
Package Width 0.5 Mm
Packing Method Tr, Paper, 7 Inch
Rated Power Dissipation (P) 0.0625 W
Rated Temperature 70 °C
Reference Standard Aec-Q200
Resistance 10000 Ω
Resistor Type Fixed Resistor
Size Code 0402
Surface Mount Yes
Technology Thin Film
Temperature Coefficient 25 Ppm/°C
Terminal Shape Wraparound
Tolerance 0.5%
Working Voltage 50 V

Alternate Parts for CRT0402ADY-1002GLF

This table gives cross-reference parts and alternative options found for CRT0402ADY-1002GLF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CRT0402ADY-1002GLF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
WF04R1002DZLQ Walsin Technology Corporation Check for Price Fixed Resistor, Thin Film, 0.1W, 10000ohm, 50V, 0.5% +/-Tol, 25ppm/Cel, Surface Mount, 0402, CHIP CRT0402ADY-1002GLF vs WF04R1002DZLQ
CMF-N040210K0,5%25PPM/KNP10 Microtech GmbH Electronic Check for Price Fixed Resistor, Thin Film, 0.063W, 10000ohm, 50V, 0.5% +/-Tol, 25ppm/Cel, Surface Mount, 0402, CHIP CRT0402ADY-1002GLF vs CMF-N040210K0,5%25PPM/KNP10
WF04R1002DVLQ Walsin Technology Corporation Check for Price Fixed Resistor, Thin Film, 0.1W, 10000ohm, 50V, 0.5% +/-Tol, 25ppm/Cel, Surface Mount, 0402, CHIP CRT0402ADY-1002GLF vs WF04R1002DVLQ
RN73H1EGTP1002D25 KOA Speer Electronics Inc Check for Price Fixed Resistor, Metal Film, 0.063W, 10000ohm, 50V, 0.5% +/-Tol, 25ppm/Cel, Surface Mount, 0402, CHIP CRT0402ADY-1002GLF vs RN73H1EGTP1002D25
WF04U1002DALQ Walsin Technology Corporation Check for Price Fixed Resistor, Thin Film, 0.0625W, 10000ohm, 50V, 0.5% +/-Tol, 25ppm/Cel, Surface Mount, 0402, CHIP CRT0402ADY-1002GLF vs WF04U1002DALQ
SF04U1002DALQ Walsin Technology Corporation Check for Price Fixed Resistor, Thin Film, 0.0625W, 10000ohm, 50V, 0.5% +/-Tol, 25ppm/Cel, Surface Mount, 0402, CHIP CRT0402ADY-1002GLF vs SF04U1002DALQ
RBS04DTP1002 TA-I Technology Co Ltd Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 10000ohm, 50V, 0.5% +/-Tol, 25ppm/Cel, Surface Mount, 0402, CHIP CRT0402ADY-1002GLF vs RBS04DTP1002
WF04R1002DDLQ Walsin Technology Corporation Check for Price Fixed Resistor, Thin Film, 0.1W, 10000ohm, 50V, 0.5% +/-Tol, 25ppm/Cel, Surface Mount, 0402, CHIP CRT0402ADY-1002GLF vs WF04R1002DDLQ
CMP040210K0,5%25PPM/KNP10 Microtech GmbH Electronic Check for Price Fixed Resistor, Thin Film, 0.1W, 10000ohm, 50V, 0.5% +/-Tol, 25ppm/Cel, Surface Mount, 0402, CHIP CRT0402ADY-1002GLF vs CMP040210K0,5%25PPM/KNP10
ERA2AED1002X Panasonic Electronic Components Check for Price Fixed Resistor, Metal Film, 0.063W, 10000ohm, 50V, 0.5% +/-Tol, 25ppm/Cel, Surface Mount, 0402, CHIP, ROHS COMPLIANT CRT0402ADY-1002GLF vs ERA2AED1002X
