Part Details for CSD17381F4 by Texas Instruments
Results Overview of CSD17381F4 by Texas Instruments
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (2 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (2 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
CSD17381F4 Information
CSD17381F4 by Texas Instruments is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for CSD17381F4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-38913-1-ND
|
DigiKey | MOSFET N-CH 30V 3.1A 3PICOSTAR Min Qty: 1 Container: Cut Tape |
17385 Cut Tape |
|
$0.1244 / $0.4300 | Buy Now |
|
DISTI #
296-38913-2-ND
|
DigiKey | MOSFET N-CH 30V 3.1A 3PICOSTAR Min Qty: 3000 Container: Tape & Reel |
17385 Tape & Reel |
|
$0.0797 / $0.0930 | Buy Now |
|
DISTI #
296-38913-6-ND
|
DigiKey | MOSFET N-CH 30V 3.1A 3PICOSTAR Min Qty: 1 Container: Digi-Reel |
17385 Digi-Reel® |
|
$0.1244 / $0.4300 | Buy Now |
|
DISTI #
86310581
|
Verical | Trans MOSFET N-CH 30V 3.1A 3-Pin PicoStar T/R RoHS: Compliant Min Qty: 96 Package Multiple: 1 Date Code: 2436 | Americas - 174 |
|
$0.0650 / $0.1910 | Buy Now |
|
DISTI #
595-CSD17381F4
|
Mouser Electronics | MOSFETs N-CH NexFET Pwr MOSF ET A 595-CSD17381F4 A 595-CSD17381F4T RoHS: Compliant | 17383 |
|
$0.0680 / $0.4300 | Buy Now |
|
DISTI #
V72:2272_07248770
|
Arrow Electronics | Trans MOSFET N-CH 30V 3.1A 3-Pin PicoStar T/R COO: Philippines RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks Date Code: 2436 Container: Cut Strips | Americas - 174 |
|
$0.0650 / $0.3880 | Buy Now |
|
|
Quest Components | SMALL SIGNAL FIELD-EFFECT TRANSISTOR, 3.1A I(D), 30V, 1-ELEMENT, N-CHANNEL, SILICON, METAL-OXIDE SEMICONDUCTOR FET | 4655 |
|
$0.0840 / $0.4200 | Buy Now |
|
|
Quest Components | SMALL SIGNAL FIELD-EFFECT TRANSISTOR, 3.1A I(D), 30V, 1-ELEMENT, N-CHANNEL, SILICON, METAL-OXIDE SEMICONDUCTOR FET | 1584 |
|
$0.0756 / $0.1680 | Buy Now |
|
DISTI #
V72:2272_07248770
|
Arrow Electronics | Trans MOSFET N-CH 30V 3.1A 3-Pin PicoStar T/R COO: Philippines RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks Date Code: 2436 Container: Cut Strips | Americas - 174 |
|
$0.0650 / $0.3880 | Buy Now |
|
DISTI #
86310581
|
Verical | Trans MOSFET N-CH 30V 3.1A 3-Pin PicoStar T/R COO: Philippines RoHS: Compliant Min Qty: 96 Package Multiple: 1 Date Code: 2436 | Americas - 174 |
|
$0.0650 / $0.1910 | Buy Now |
US Tariff Estimator: CSD17381F4 by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
CSD17381F4 CAD Models
-
Part Symbol
-
Footprint
-

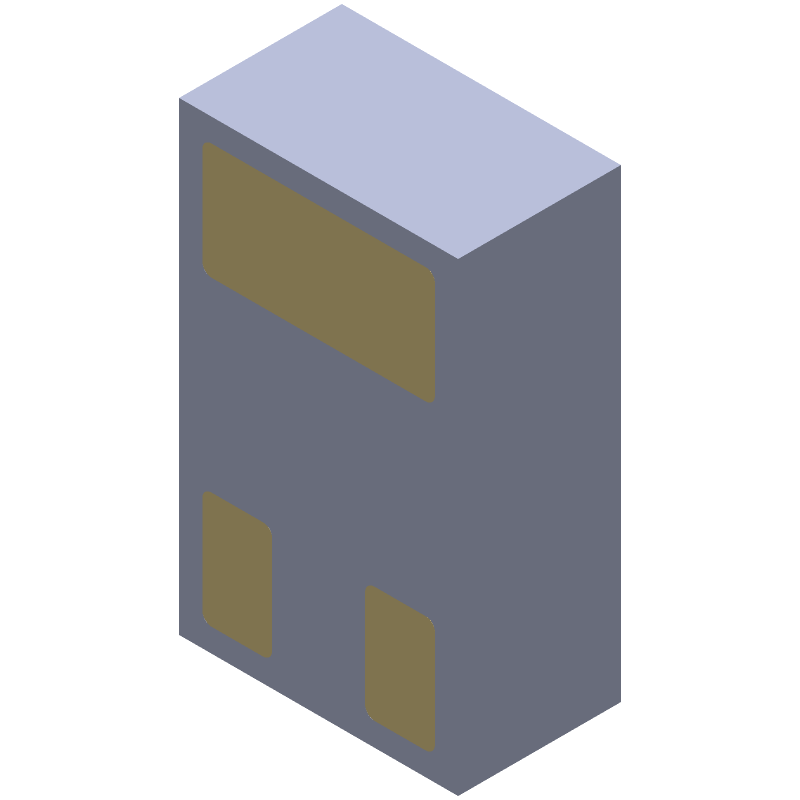

3D Model
