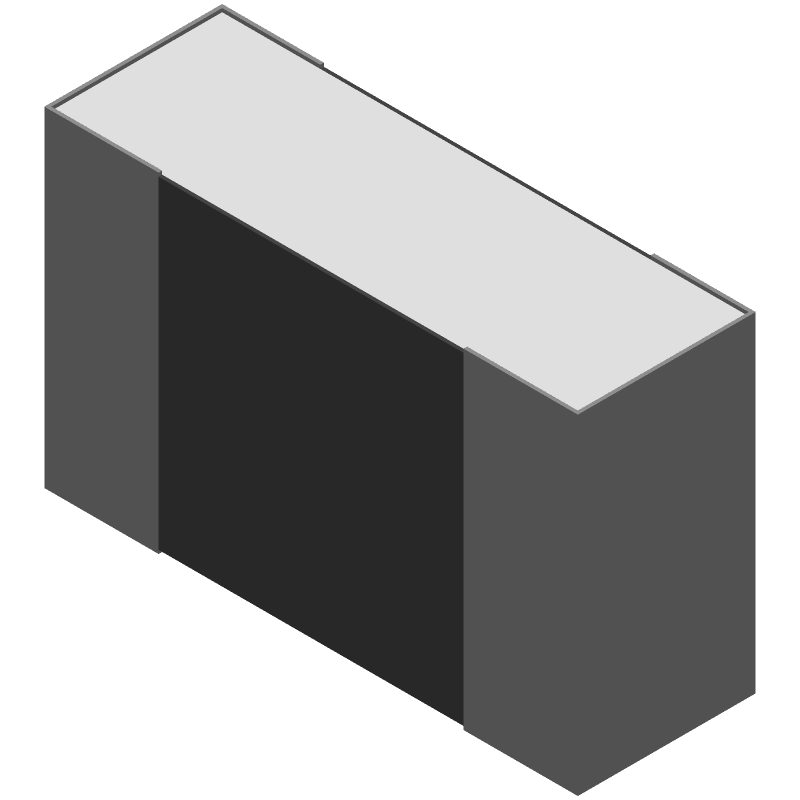

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CSRF0805FT27L0 by SEI Stackpole Electronics Inc
Results Overview of CSRF0805FT27L0 by SEI Stackpole Electronics Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CSRF0805FT27L0 Information
CSRF0805FT27L0 by SEI Stackpole Electronics Inc is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CSRF0805FT27L0
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
CSRF0805FT27L0-ND
|
DigiKey | RES 0.027 OHM 1% 1/2W 0805 Min Qty: 5000 Lead time: 17 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.1413 | Buy Now |
|
DISTI #
CSRF0805FT27L0
|
Avnet Americas | Res Current Sense 0805 0.027Ohm 1% 1/2W Molded T/R - Tape and Reel (Alt: CSRF0805FT27L0) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 17 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.1230 / $0.1286 | Buy Now |
|
DISTI #
708-CSRF0805FT27L0
|
Mouser Electronics | Current Sense Resistors - SMD RES CS, 0805, 0.027 ohm, 1%, 0.5W RoHS: Compliant | 0 |
|
$0.1400 | Order Now |
|
|
Onlinecomponents.com | COO: Taiwan RoHS: Compliant | 0 |
|
$0.1149 / $0.1364 | Buy Now |
|
|
NAC | RESISTOR CURRENT SENSING, 0805, 0.027 ohm, 1%, 0.5W - Metal Foil on Ceramic - Current Sensing RoHS: Compliant Package Multiple: 1 | 0 |
|
$0.1290 / $0.2250 | Buy Now |
Part Details for CSRF0805FT27L0
CSRF0805FT27L0 CAD Models
CSRF0805FT27L0 Part Data Attributes
|
|
CSRF0805FT27L0
SEI Stackpole Electronics Inc
Buy Now
Datasheet
|
Compare Parts:
CSRF0805FT27L0
SEI Stackpole Electronics Inc
Fixed Resistor
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Chip | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 17 Weeks | |
| JESD-609 Code | e3 | |
| Mounting Feature | Surface Mount | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 170 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | Rectangular Package | |
| Packing Method | Tr, Paper, 7 Inch | |
| Rated Power Dissipation (P) | 0.5 W | |
| Rated Temperature | 100 °C | |
| Reference Standard | Aec-Q200 | |
| Resistance | 0.027 Ω | |
| Resistor Type | Fixed Resistor | |
| Size Code | 0805 | |
| Surface Mount | Yes | |
| Temperature Coefficient | 50 Ppm/°C | |
| Terminal Finish | Matte Tin Over Nickel | |
| Terminal Shape | Wraparound | |
| Tolerance | 1% |
