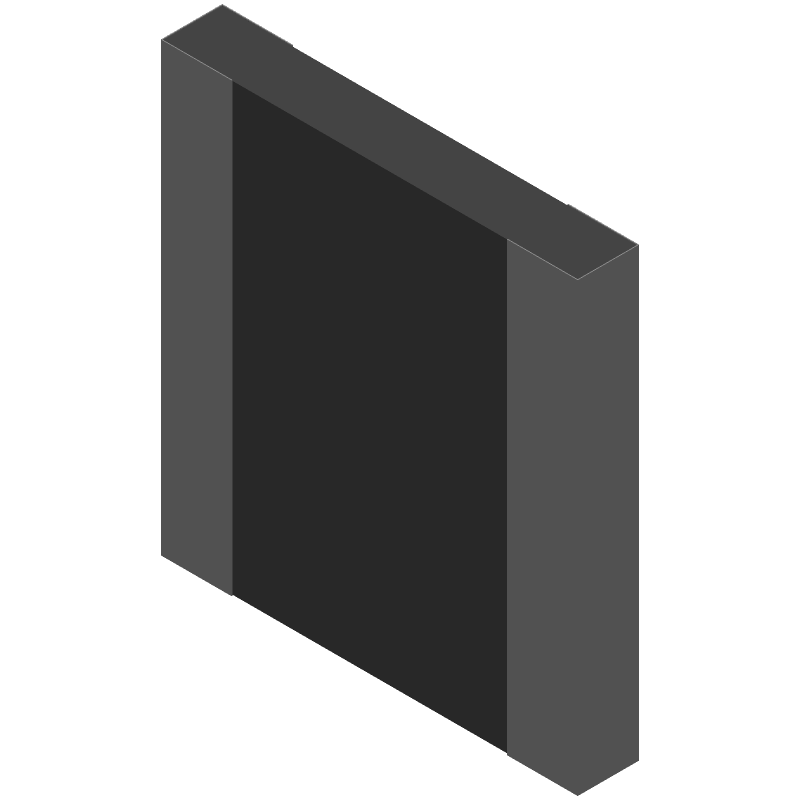

CSS2728FT12L0 by: SEI Stackpole Electronics Inc

Fixed Resistor

Part Details for CSS2728FT12L0 by SEI Stackpole Electronics Inc

Results Overview of CSS2728FT12L0 by SEI Stackpole Electronics Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Security and Surveillance Environmental Monitoring Internet of Things (IoT) Space Technology Smart Cities Aerospace and Defense Healthcare Agriculture Technology Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Medical Imaging Robotics and Drones

CSS2728FT12L0 Information

CSS2728FT12L0 by SEI Stackpole Electronics Inc is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for CSS2728FT12L0

Part # Distributor Description Stock Price Buy
DISTI # CSS2728FT12L0-ND
DigiKey RES 0.012 OHM 1% 3W 2827 WIDE Min Qty: 1000 Lead time: 17 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 1,000 $0.3916
$0.3916 Buy Now
DISTI # CSS2728FT12L0
Avnet Americas RES CURR SENS 0.012 OHMS 1% - Tape and Reel (Alt: CSS2728FT12L0) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 17 Weeks, 0 Days Container: Tape & Reel 0
  • 1,000 $0.3867
  • 2,000 $0.3378
  • 4,000 $0.3290
  • 6,000 $0.3240
  • 8,000 $0.3223
$0.3223 / $0.3867 Buy Now
DISTI # CSS2728FT12L0
Avnet Americas RES CURR SENS 0.012 OHMS 1% - Tape and Reel (Alt: CSS2728FT12L0) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 17 Weeks, 0 Days Container: Tape & Reel 0
  • 1,000 $0.3867
  • 2,000 $0.3378
  • 4,000 $0.3290
  • 6,000 $0.3240
  • 8,000 $0.3223
$0.3223 / $0.3867 Buy Now
DISTI # 708-CSS2728FT12L0
Mouser Electronics Current Sense Resistors - SMD RES SHUNT, 2728, 0.012 ohm, 1%, 3W RoHS: Compliant 0
  • 1,000 $0.3910
$0.3910 Order Now
Onlinecomponents.com Ultra-Precision Metal Alloy Current Sense Resistor - 0.012 ohm ±1% - 3W - 2728 - Tape&Reel COO: Taiwan RoHS: Compliant 0
  • 1,000 $0.3906
  • 3,000 $0.3571
  • 5,000 $0.3425
  • 8,000 $0.3373
  • 10,000 $0.3323
  • 15,000 $0.3273
  • 25,000 $0.3224
  • 50,000 $0.3175
$0.3175 / $0.3906 Buy Now
NAC RESISTOR SHUNT, 2728, 0.012 ohm, 1%, 3W - Ultra Stable Current Sense Metal Strip RoHS: Compliant Package Multiple: 1 0
  • 1,000 $0.6250
  • 5,000 $0.4170
  • 25,000 $0.3580
$0.3580 / $0.6250 Buy Now
Vyrian Resistors 3211
RFQ

US Tariff Estimator: CSS2728FT12L0 by SEI Stackpole Electronics Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

CSS2728FT12L0
SEI Stackpole Electronics Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for CSS2728FT12L0

CSS2728FT12L0 Part Data Attributes

Parametric Data
CSS2728FT12L0 SEI Stackpole Electronics Inc
Buy Now Datasheet
Compare Parts:
CSS2728FT12L0 SEI Stackpole Electronics Inc Fixed Resistor
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Package Description Chip
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 17 Weeks
Additional Feature Ultra Precision
JESD-609 Code e3
Mounting Feature Surface Mount
Number of Terminals 2
Operating Temperature-Max 225 °C
Operating Temperature-Min -55 °C
Package Shape Rectangular Package
Packing Method Tr, Plastic, 7 Inch
Rated Power Dissipation (P) 3 W
Rated Temperature 100 °C
Reference Standard Aec-Q200
Resistance 0.012 Ω
Resistor Type Fixed Resistor
Size Code 2728
Surface Mount Yes
Technology Metal Alloy
Temperature Coefficient 15 Ppm/°C
Terminal Finish Matte Tin Over Nickel
Terminal Shape Wraparound
Tolerance 1%
