DG411CY+T Information
DG411CY+T by Analog Devices Inc is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for DG411CY+T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-DG411CYT
|
Mouser Electronics | Analog Switch ICs IMPROVED, QUAD, SPST ANALOG SWITCHES RoHS: Compliant | 0 |
|
$3.8100 | Order Now |
|
|
Analog Devices Inc | Improved, Quad, SPST Analog Sw Min Qty: 2500 Package Multiple: 1 | 0 |
|
$2.9000 / $3.9050 | Buy Now |
|
|
Vyrian | Peripheral ICs | 7905 |
|
RFQ |
US Tariff Estimator: DG411CY+T by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for DG411CY+T
DG411CY+T CAD Models
-

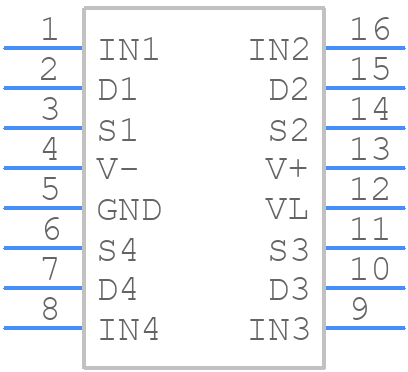

Part Symbol
-
