DG418LDJ+ by:

35Ω SPST/SPDT, +3V Logic-Compatible Analog Switches, 8-PDIP-300_MIL, 8 Pins, -40 to 85C

Part Details for DG418LDJ+ by Analog Devices Inc

Overview of DG418LDJ+ by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Consumer Electronics Audio and Video Systems Aerospace and Defense Entertainment and Gaming Communication and Networking

Price & Stock for DG418LDJ+

Part # Distributor Description Stock Price Buy
DISTI # 700-DG418LDJ
Mouser Electronics Analog Switch ICs 35Ohm SPST/SPDT, +3V Logic-Compatible An RoHS: Compliant 43
  • 1 $8.8900
  • 10 $8.2800
  • 50 $7.0300
  • 100 $6.6500
  • 250 $6.4800
  • 500 $5.9600
  • 1,000 $5.4800
$5.4800 / $8.8900 Buy Now
Analog Devices Inc 35Ohm SPST/SPDT, +3V Logic-Com Min Qty: 1 Package Multiple: 1 0
  • 1 $5.4900
  • 100 $6.6519
  • 1,000 $4.4700
$4.4700 / $6.6519 Buy Now

Part Details for DG418LDJ+

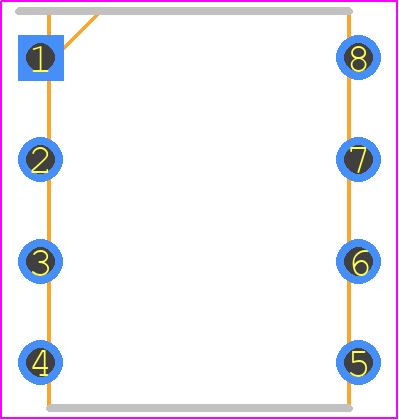

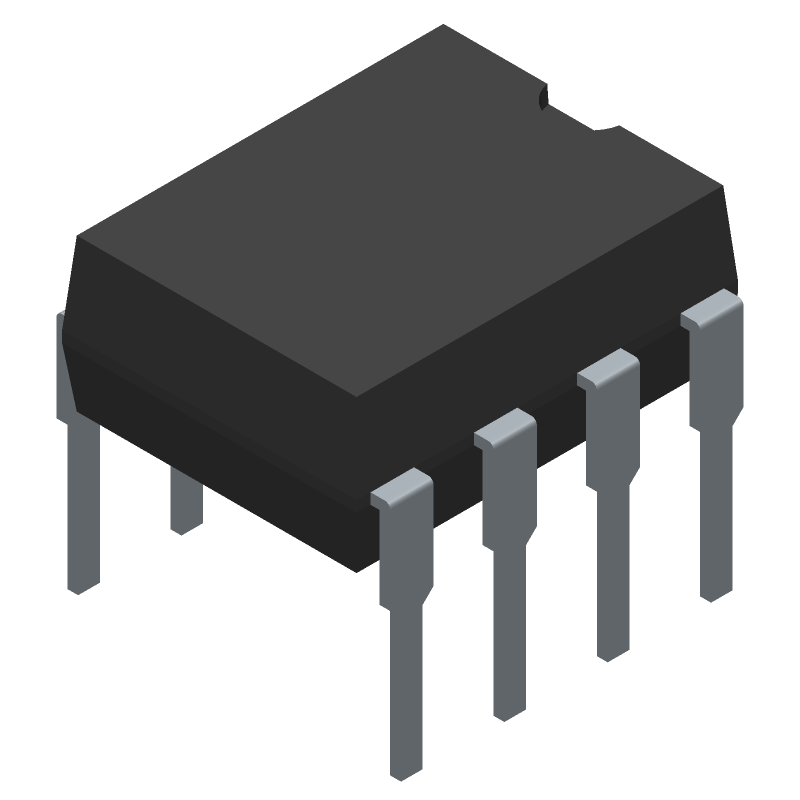

DG418LDJ+ CAD Models

DG418LDJ+ Part Data Attributes:

DG418LDJ+ Analog Devices Inc
Buy Now Datasheet
Compare Parts:
DG418LDJ+ Analog Devices Inc 35Ω SPST/SPDT, +3V Logic-Compatible Analog Switches, 8-PDIP-300_MIL, 8 Pins, -40 to 85C
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code 8-PDIP-300_MIL
Package Description 0.300 INCH, PLASTIC, DIP-8
Pin Count 8
Manufacturer Package Code 8-PDIP-300_MIL
Reach Compliance Code compliant
Date Of Intro 2001-11-07
Samacsys Manufacturer Analog Devices
Analog IC - Other Type SPST
JESD-30 Code R-PDIP-T8
JESD-609 Code e3
Length 9.375 mm
Moisture Sensitivity Level 1
Neg Supply Voltage-Max (Vsup) -20 V
Neg Supply Voltage-Min (Vsup) -4.5 V
Neg Supply Voltage-Nom (Vsup) -15 V
Number of Channels 1
Number of Functions 1
Number of Terminals 8
Off-state Isolation-Nom 90 dB
On-state Resistance Match-Nom 0.1 Ω
On-state Resistance-Max (Ron) 35 Ω
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 4.572 mm
Supply Voltage-Max (Vsup) 20 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Nom (Vsup) 15 V
Surface Mount NO
Switch-off Time-Max 185 ns
Switch-on Time-Max 175 ns
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 7.62 mm
