Part Details for DR1040-2R5-R by Eaton Electronics
Results Overview of DR1040-2R5-R by Eaton Electronics
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
DR1040-2R5-R Information
DR1040-2R5-R by Eaton Electronics is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for DR1040-2R5-R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28X2030
|
Newark | Inductor, Shielded, 2.5Uh, 7.8A, Smd, Fu, |Eaton Electronics DR1040-2R5-R RoHS: Compliant Min Qty: 850 Package Multiple: 1 Date Code: 0 Container: Tape & Reel | 0 |
|
$1.8200 / $1.9000 | Buy Now |
|
DISTI #
99M2886
|
Newark | Inductor, Shielded, 2.5Uh, 7.8A, Smd, Inductance:2.5Μh, Rms Current (Irms):6.1A, Inductor Construction:Shielded, Saturation Current (Isat):7.8A, Product Range:Dr1040 Series, Inductor Case/Package:-, Dc Resistance Max:9Mohm Rohs Compliant: Yes RoHS: Compliant Min Qty: 850 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$1.5900 | Buy Now |
|
DISTI #
74084567
|
RS | IND 2.5UH SMT 10*10*4 Min Qty: 850 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk | 0 |
|
$1.4600 / $1.5900 | RFQ |
|
DISTI #
DR1040-2R5-R
|
TME | Inductor: wire, SMD, 2.4uH, Ioper: 6.1A, R: 7mΩ, ±30%, 10.3x10.5x4mm Min Qty: 850 | 0 |
|
$0.4450 / $0.4610 | RFQ |
US Tariff Estimator: DR1040-2R5-R by Eaton Electronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
DR1040-2R5-R CAD Models
-

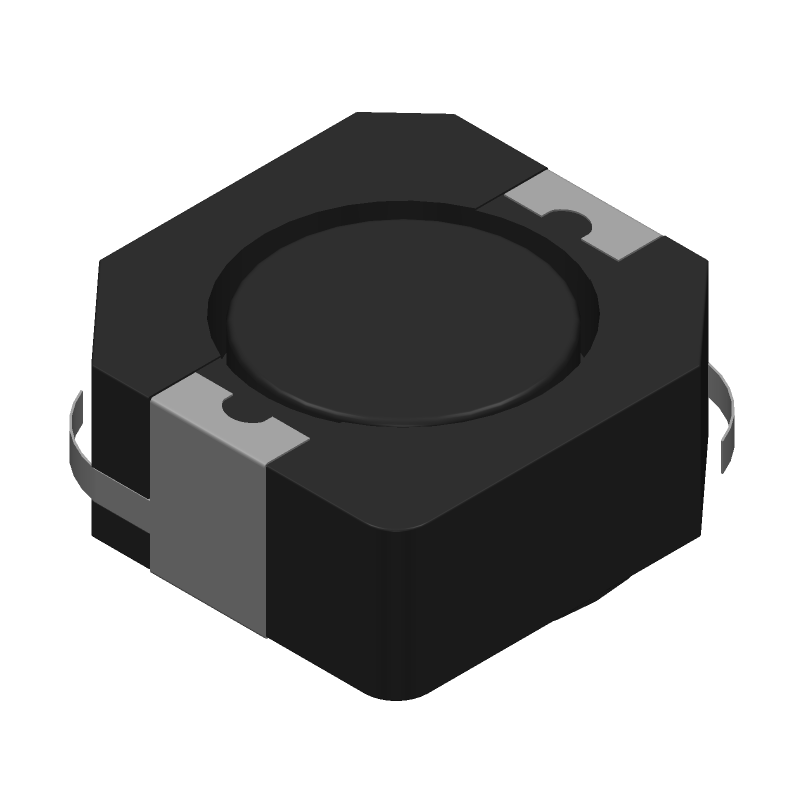

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
DR1040-2R5-R Part Data Attributes
|
|
DR1040-2R5-R
Eaton Electronics
Buy Now
Datasheet
|
Compare Parts:
DR1040-2R5-R
Eaton Electronics
General Purpose Inductor, 2.5uH, 30%, 1 Element, Ferrite-Core, SMD, 4141
|
| Part Life Cycle Code | Transferred | |
| Reach Compliance Code | Unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Case/Size Code | 4141 | |
| Core Material | Ferrite | |
| DC Resistance | 0.009 Ω | |
| Inductance-Nom (L) | 2.5 µH | |
| Inductor Application | Power Inductor | |
| Inductor Type | General Purpose Inductor | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Rated Current-Max | 6.1 A | |
| Shape/Size Description | Rectangular Package | |
| Shielded | Yes | |
| Surface Mount | Yes | |
| Terminal Placement | Dual Ended | |
| Terminal Shape | Wraparound | |
| Test Frequency | 0.1 Mhz | |
| Tolerance | 30% |
