DR1040-680-R Information

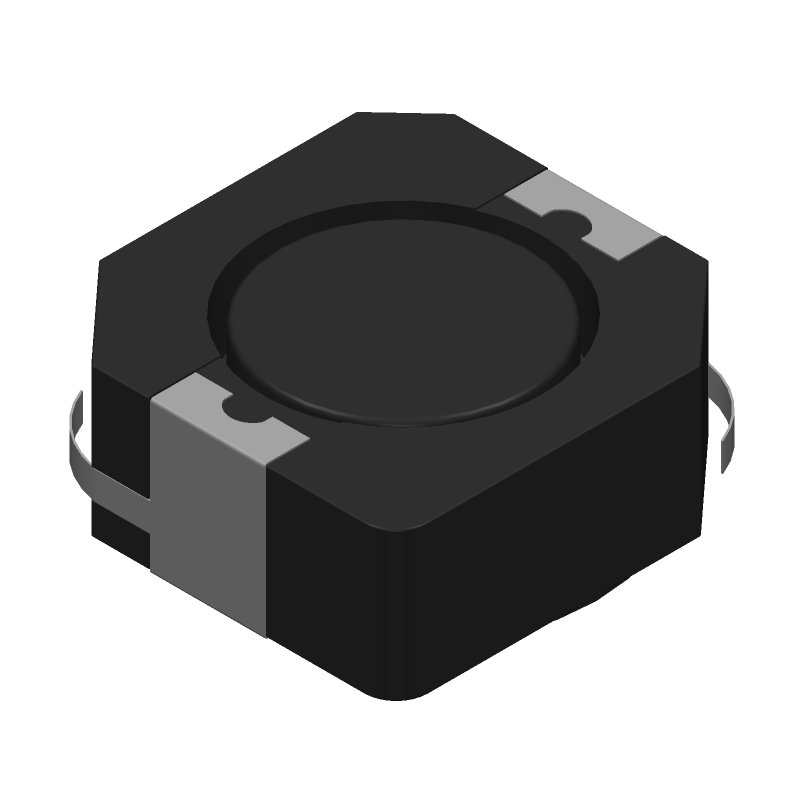

DR1040-680-R by Eaton Electronics is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for DR1040-680-R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
70037964
|
RS | INDUCTOR, POWER SHIELDED DRUM CORE INDUCTOR, 68UH, 1.65A Min Qty: 850 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk | 0 |
|
$2.7100 | RFQ |
|
DISTI #
DR1040-680-R
|
TME | Inductor: wire, SMD, 65.3uH, Ioper: 1.42A, R: 152mΩ, ±30%, Isat: 1.65A Min Qty: 850 | 0 |
|
$0.5190 | RFQ |
US Tariff Estimator: DR1040-680-R by Eaton Electronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
DR1040-680-R CAD Models
-
Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
DR1040-680-R Part Data Attributes
DR1040-680-R Frequently Asked Questions (FAQ)
-
The recommended PCB land pattern for the DR1040-680-R can be found in the Coiltronics application note AN-013, which provides detailed guidelines for PCB layout and footprint design.
-
While the datasheet specifies an operating temperature range of -40°C to +125°C, Coiltronics recommends derating the inductor's current rating by 1.5% per degree Celsius above 80°C to ensure reliable operation in high-temperature environments.
-
Yes, the DR1040-680-R is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in high-vibration applications such as automotive and industrial systems.
-
The SRF of the DR1040-680-R is approximately 150 MHz, which is not explicitly stated in the datasheet. This information can be obtained by contacting Coiltronics' technical support or through simulation and modeling tools.
-
Yes, the DR1040-680-R is compatible with lead-free soldering processes, including RoHS and WEEE compliant soldering profiles.
