Part Details for DS1804-100+ by Analog Devices Inc
Results Overview of DS1804-100+ by Analog Devices Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Education and Research
Environmental Monitoring
Industrial Automation
Audio and Video Systems
Agriculture Technology
Medical Imaging
Entertainment and Gaming
DS1804-100+ Information
DS1804-100+ by Analog Devices Inc is a Digital Potentiometer.
Digital Potentiometers are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for DS1804-100+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-DS1804-100
|
Mouser Electronics | Digital Potentiometer ICs Nonvolatile Trimmer Potentiometer RoHS: Compliant | 373 |
|
$2.6800 / $4.4600 | Buy Now |
|
|
Analog Devices Inc | Nonvolatile Trimmer Potentiome Package Multiple: 1 | 1115 |
|
$2.0900 / $4.3300 | Buy Now |
|
DISTI #
DS1804-100+
|
TME | IC: digital potentiometer, 100kΩ, Up/Down Protocol, 7bit, DIP8 Min Qty: 1 | 0 |
|
$3.4600 / $4.4400 | RFQ |
US Tariff Estimator: DS1804-100+ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for DS1804-100+
DS1804-100+ CAD Models
-

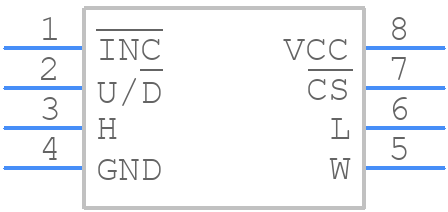

Part Symbol
-

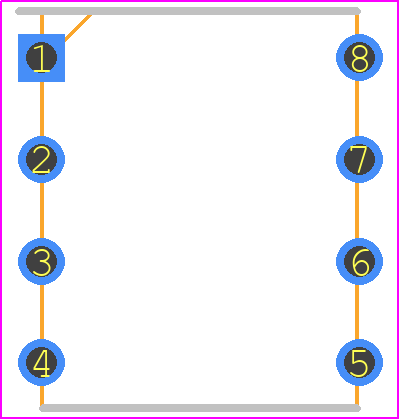

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
DS1804-100+ Part Data Attributes
|
|
DS1804-100+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
DS1804-100+
Analog Devices Inc
Digital Potentiometer, 1 Func, 100000ohm, Increment/decrement Control Interface, 100 Positions, CMOS
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | 8-PDIP-300_MIL | |
| Package Description | Dip, Dip8,.3 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 8-PDIP-300_MIL | |
| Reach Compliance Code | Compliant | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 2002-04-30 | |
| Additional Feature | Nonvolatile Memory | |
| Bandwidth-Nom | 0.1 Khz | |
| Control Interface | Increment/Decrement | |
| Converter Type | Digital Potentiometer | |
| JESD-30 Code | R-XDIP-T8 | |
| JESD-609 Code | e3 | |
| Length | 9.375 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Positions | 100 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Unspecified | |
| Package Code | DIP | |
| Package Equivalence Code | DIP8,.3 | |
| Package Shape | Rectangular | |
| Package Style | In-Line | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Resistance Law | Linear | |
| Resistance Tolerance-Max | 20% | |
| Resistor Terminal Voltage-Max | 5.7 V | |
| Resistor Terminal Voltage-Min | -0.2 V | |
| Seated Height-Max | 4.572 Mm | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | No | |
| Technology | Cmos | |
| Temperature Coefficient-Nom | 750 Ppm/°C | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Through-Hole | |
| Terminal Pitch | 2.54 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Total Resistance-Nom | 100000 Ω | |
| Width | 7.62 Mm |
Alternate Parts for DS1804-100+
This table gives cross-reference parts and alternative options found for DS1804-100+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DS1804-100+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD5220BNZ10 | Analog Devices Inc | $2.9677 | Digital Potentiometer, 1 Func, 10000ohm, Increment/decrement Control Interface, 128 Positions, CMOS, PDIP8 | DS1804-100+ vs AD5220BNZ10 |
| CAT5113PI-00 | onsemi | Check for Price | Digital Potentiometer, 1 Func, 100000ohm, Increment/decrement Control Interface, 100 Positions, CMOS, PDIP8 | DS1804-100+ vs CAT5113PI-00 |
| CAT5114P-10 | onsemi | Check for Price | Digital Potentiometer, 1 Func, 10000ohm, Increment/decrement Control Interface, 32 Positions, CMOS, PDIP8 | DS1804-100+ vs CAT5114P-10 |
| CAT5115LI-10-GT3 | onsemi | Check for Price | Digital Potentiometer, 1 Func, 10000ohm, Increment/decrement Control Interface, 32 Positions, CMOS, PDIP8 | DS1804-100+ vs CAT5115LI-10-GT3 |
| X9315WPI | Intersil Corporation | Check for Price | Digital Potentiometer, 1 Func, 10000ohm, Increment/decrement Control Interface, 32 Positions, CMOS, PDIP8 | DS1804-100+ vs X9315WPI |
| X9315WPI-2.7 | Xicor Inc | Check for Price | Digital Potentiometer, 1 Func, 10000ohm, Increment/decrement Control Interface, 32 Positions, CMOS, PDIP8 | DS1804-100+ vs X9315WPI-2.7 |
| CAT5115LI-10-G | onsemi | Check for Price | Digital Potentiometer, 1 Func, 10000ohm, Increment/decrement Control Interface, 32 Positions, CMOS, PDIP8 | DS1804-100+ vs CAT5115LI-10-G |
| CAT5114LI-10-GT3 | onsemi | Check for Price | Digital Potentiometer, 1 Func, 10000ohm, Increment/decrement Control Interface, 32 Positions, PDIP8 | DS1804-100+ vs CAT5114LI-10-GT3 |
| CAT5115LI10 | onsemi | Check for Price | Digital Potentiometer, 1 Func, 10000ohm, Increment/decrement Control Interface, 32 Positions, CMOS, PDIP8 | DS1804-100+ vs CAT5115LI10 |
| DS1804-100 | Maxim Integrated Products | Check for Price | Digital Potentiometer, 1 Func, 100000ohm, Increment/decrement Control Interface, 100 Positions, CMOS, PDIP8 | DS1804-100+ vs DS1804-100 |
DS1804-100+ Frequently Asked Questions (FAQ)
-
The recommended layout and routing for the DS1804-100+ involves keeping the digital and analog traces separate, using a solid ground plane, and minimizing the length of the traces to reduce noise and EMI. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
To ensure accurate temperature measurement with the DS1804-100+, it's essential to follow proper thermal design practices, such as placing the device close to the thermal source, using a thermally conductive material, and minimizing thermal gradients. Additionally, calibrating the device and using a high-accuracy voltage reference can also improve temperature measurement accuracy.
-
The maximum operating temperature range for the DS1804-100+ is -40°C to +125°C, but the device can be operated up to +150°C for short periods of time. However, it's recommended to operate the device within the specified temperature range to ensure optimal performance and reliability.
-
The DS1804-100+ can be programmed for custom temperature ranges using the One-Time Programmable (OTP) memory. This can be done using the DS1804-100+ evaluation board and the corresponding software development kit (SDK). The OTP memory allows the user to set the temperature range, alarm thresholds, and other parameters to suit specific application requirements.
-
The typical power consumption of the DS1804-100+ is around 1.5mA, but this can vary depending on the operating frequency, temperature range, and other factors. It's recommended to consult the datasheet and application notes for more detailed information on power consumption and power management.
