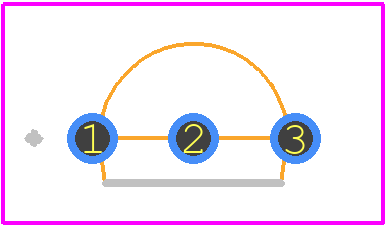

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DS18B20+T&R by Analog Devices Inc
Results Overview of DS18B20+T&R by Analog Devices Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (1 replacement)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (8 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Environmental Monitoring
Industrial Automation
Smart Cities
Agriculture Technology
DS18B20+T&R Information
DS18B20+T&R by Analog Devices Inc is a Temperature Sensor.
Temperature Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for DS18B20+T&R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-DS18B20T&R
|
Mouser Electronics | Board Mount Temperature Sensors Programmable Resolution 1-Wire Digital T RoHS: Compliant | 3910 |
|
$3.5500 / $5.4000 | Buy Now |
|
|
Analog Devices Inc | Programmable Resolution 1-Wire Min Qty: 1 Package Multiple: 1 | 3159 |
|
$3.5659 / $5.4000 | Buy Now |
|
|
Chip Stock | DigitalTempSensor-serial12Bit(s)0.50CELRectangularThroughHoleMount | 107030 |
|
RFQ |
Part Details for DS18B20+T&R
DS18B20+T&R CAD Models
DS18B20+T&R Part Data Attributes
|
|
DS18B20+T&R
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
DS18B20+T&R
Analog Devices Inc
Serial Switch/Digital Sensor, 12 Bit(s), 0.50Cel, Rectangular, 3 Pin, Through Hole Mount
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | 3-TO92-N/A | |
| Package Description | To-92, 3 Pin | |
| Pin Count | 3 | |
| Manufacturer Package Code | 3-TO92-N/A | |
| Reach Compliance Code | Compliant | |
| Date Of Intro | 2001-04-30 | |
| Accuracy-Max (Cel) | 0.5 Cel | |
| Body Breadth | 3.62 Mm | |
| Body Height | 4.63 Mm | |
| Body Length or Diameter | 4.7 Mm | |
| Housing | Plastic | |
| JESD-609 Code | e3 | |
| Mounting Feature | Through Hole Mount | |
| Number of Bits | 12 | |
| Number of Terminals | 3 | |
| Operating Current-Max | 1.5 Ma | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Interface Type | 1-Wire Interface | |
| Package Body Material | Plastic/Epoxy | |
| Package Equivalence Code | SIP3,.1,50 | |
| Package Shape/Style | Rectangular | |
| Sensors/Transducers Type | Temperature Sensor,Switch/Digital Output,Serial | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3 V | |
| Surface Mount | No | |
| Terminal Finish | Matte Tin (Sn) | |
| Termination Type | Solder |
Alternate Parts for DS18B20+T&R
This table gives cross-reference parts and alternative options found for DS18B20+T&R. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DS18B20+T&R, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| DS18B20/GG8 | Analog Devices Inc | Check for Price | Serial Switch/Digital Sensor, 12 Bit(s), 0.5Cel, Round, Through Hole Mount | DS18B20+T&R vs DS18B20/GG8 |
DS18B20+T&R Frequently Asked Questions (FAQ)
-
The DS18B20 has an accuracy of ±0.5°C from -10°C to +85°C, and ±1°C from -40°C to +125°C.
-
The DS18B20 uses a 1-Wire protocol, which allows multiple devices to share the same bus. Each device has a unique 64-bit ROM code, allowing the master device to address and communicate with each DS18B20 individually.
-
The maximum cable length for the DS18B20 is 100 meters (330 feet), but this can be extended using repeaters or other signal conditioning techniques.
-
The DS18B20 has a built-in voltage regulator and noise filtering, which helps to reject power supply noise and voltage fluctuations, ensuring accurate temperature readings.
-
Yes, the DS18B20 is designed to operate in harsh environments, including high temperatures, humidity, and vibration. It is also available in a waterproof package option.
