DS2417P+ Information
DS2417P+ by Analog Devices Inc is a Timer or RTC.
Timers or RTCs are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for DS2417P+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-DS2417P
|
Mouser Electronics | Real Time Clock 1-Wire Time Chip With Interrupt RoHS: Compliant | 600 |
|
$2.0800 / $3.3700 | Buy Now |
|
DISTI #
V99:2348_26359835
|
Arrow Electronics | Real Time Clock Serial Clock/Calendar 6-Pin TSOC Tube COO: Philippines RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2239 | Americas - 725 |
|
$2.0330 | Buy Now |
|
|
Analog Devices Inc | 1-Wire Time Chip With Interrup Package Multiple: 1 | 0 |
|
$1.6100 / $3.4300 | Buy Now |
|
DISTI #
67542999
|
Verical | Real Time Clock Serial Clock/Calendar 6-Pin TSOC Tube RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2239 | Americas - 725 |
|
$2.0330 | Buy Now |
|
DISTI #
V99:2348_26359835
|
Arrow Electronics | Real Time Clock Serial Clock/Calendar 6-Pin TSOC Tube COO: Philippines RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2239 | Americas - 725 |
|
$2.0330 | Buy Now |
|
DISTI #
67542999
|
Verical | Real Time Clock Serial Clock/Calendar 6-Pin TSOC Tube COO: Philippines RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2239 | Americas - 725 |
|
$2.0330 | Buy Now |
|
DISTI #
DS2417P+
|
TME | IC: RTC circuit, 1-wire, TSOC6, 3÷5V Min Qty: 1 | 0 |
|
$1.9700 / $2.6700 | RFQ |
|
DISTI #
V99:2348_26359835
|
Arrow Electronics | Real Time Clock Serial Clock/Calendar 6-Pin TSOC Tube COO: Philippines RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2239 | Americas - 725 |
|
$2.0330 | Buy Now |
|
DISTI #
67542999
|
Verical | Real Time Clock Serial Clock/Calendar 6-Pin TSOC Tube COO: Philippines RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2239 | Americas - 725 |
|
$2.0330 | Buy Now |
|
|
Chip Stock | RealTimeClock1-WireTimeChipWithInterrupt | 9500 |
|
RFQ |
US Tariff Estimator: DS2417P+ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for DS2417P+
DS2417P+ CAD Models
-

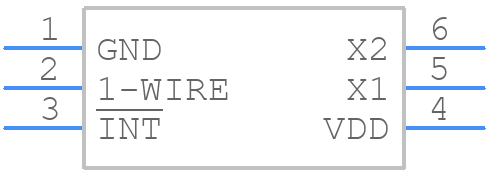

Part Symbol
-
Footprint
-

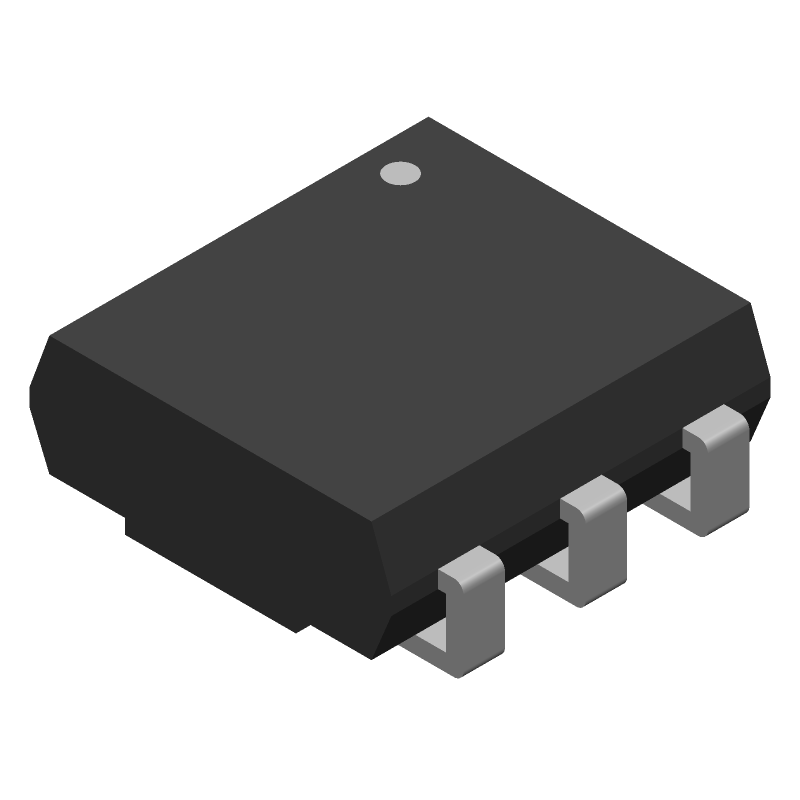

3D Model
