Part Details for DS2780E+ by Analog Devices Inc
Results Overview of DS2780E+ by Analog Devices Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (1 replacement)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Security and Surveillance
Space Technology
Environmental Monitoring
Internet of Things (IoT)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Communication and Networking
Automotive
Robotics and Drones
DS2780E+ Information
DS2780E+ by Analog Devices Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for DS2780E+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-DS2780E
|
Mouser Electronics | Battery Management Stand-Alone Fuel Gauge IC RoHS: Compliant | 133 |
|
$6.6800 / $11.0000 | Buy Now |
|
|
Analog Devices Inc | Stand-Alone Fuel Gauge IC Package Multiple: 1 | 1146 |
|
$4.9000 / $11.0000 | Buy Now |
US Tariff Estimator: DS2780E+ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for DS2780E+
DS2780E+ CAD Models
-

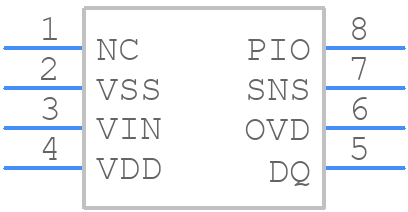

Part Symbol
-

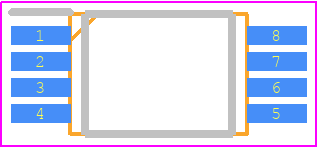

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
DS2780E+ Part Data Attributes
|
|
DS2780E+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
DS2780E+
Analog Devices Inc
Fixed, 1 Channel, PDSO8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | 8-TSSOP_4.4-4.4_MM | |
| Package Description | Rohs Compliant, Tssop-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 8-TSSOP_4.4-4.4_MM | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 2004-12-10 | |
| Adjustable Threshold | No | |
| Analog IC - Other Type | Battery Gauge | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.4 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -20 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 Mm | |
| Supply Current-Max (Isup) | 0.105 Ma | |
| Supply Voltage-Max (Vsup) | 4.5 V | |
| Supply Voltage-Min (Vsup) | 2.5 V | |
| Supply Voltage-Nom (Vsup) | 3.8 V | |
| Surface Mount | Yes | |
| Temperature Grade | Other | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 Mm |
Alternate Parts for DS2780E+
This table gives cross-reference parts and alternative options found for DS2780E+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DS2780E+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| DS2780E+T&R | Analog Devices Inc | Check for Price | Fixed, 1 Channel, PDSO8 | DS2780E+ vs DS2780E+T&R |
DS2780E+ Frequently Asked Questions (FAQ)
-
The DS2780E+ requires careful layout and placement to ensure accurate measurements. It's recommended to place the device close to the battery, use a dedicated analog ground plane, and keep digital signals away from the device. A 4-layer PCB with a solid ground plane is recommended. Refer to the application note AN-1149 for more details.
-
The DS2780E+ requires calibration to ensure accurate measurements. Calibration involves writing the calibration data to the device's EEPROM. The calibration process involves measuring the battery voltage and current, and then writing the calibration data to the device using the I2C interface. Refer to the datasheet and application note AN-1149 for more details.
-
The DS2780E+ has a high accuracy of ±1% for voltage measurements and ±2% for current measurements over the entire operating range. However, the accuracy can be affected by various factors such as temperature, noise, and layout. Refer to the datasheet for more details on the accuracy specifications.
-
The DS2780E+ uses a standard I2C interface for communication. The device has a 7-bit address, and the I2C clock frequency can be up to 400 kHz. The device supports standard I2C read and write operations, and it's recommended to use a repeated start condition for multiple byte transfers. Refer to the datasheet and I2C specification for more details.
-
The DS2780E+ has a low power consumption of typically 120 μA in active mode and 10 μA in sleep mode. The power consumption can be further reduced by using the device's power-down mode. Refer to the datasheet for more details on the power consumption specifications.
