Part Details for DS280DF810ABVT by Texas Instruments
Results Overview of DS280DF810ABVT by Texas Instruments
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (1 replacement)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (1 option)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
DS280DF810ABVT Information
DS280DF810ABVT by Texas Instruments is an Other Interface IC.
Other Interface ICs are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| DS280DF810ABVT | Texas Instruments | 28 Gbps Multi-Rate 8-Channel Retimer 135-FCBGA -40 to 85 |
Price & Stock for DS280DF810ABVT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28AH2521RL
|
Newark | Retimer, 8-Ch, 28Gbps, Fcbga-135, |Texas Instruments DS280DF810ABVT RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 0 Container: Tape & Reel | 3 |
|
$61.0800 / $78.7400 | Buy Now |
|
DISTI #
28AH2521
|
Newark | Retimer, 8-Ch, 28Gbps, Fcbga-135, |Texas Instruments DS280DF810ABVT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 3 |
|
$61.0800 / $78.7400 | Buy Now |
|
DISTI #
296-44768-6-ND
|
DigiKey | IC RETIMER 28GBPS 135-FCBGA Min Qty: 1 Container: Digi-Reel |
42 Digi-Reel® |
|
$69.2524 / $87.4300 | Buy Now |
|
DISTI #
296-44768-2-ND
|
DigiKey | IC RETIMER 28GBPS 135-FCBGA Min Qty: 250 Container: Tape & Reel |
42 Tape & Reel |
|
$63.3501 | Buy Now |
|
DISTI #
296-44768-1-ND
|
DigiKey | IC RETIMER 28GBPS 135-FCBGA Min Qty: 1 Container: Cut Tape |
42 Cut Tape |
|
$69.2524 / $87.4300 | Buy Now |
|
DISTI #
595-DS280DF810ABVT
|
Mouser Electronics | Interface - Signal Buffers, Repeaters 28-Gbps multi-rate 8 -channel retimer 13 A 595-DS280DF810ABVR RoHS: Compliant | 0 |
|
$63.3600 | Order Now |
|
|
Chip Stock | Texas Instruments DS280DF810ABVT Retimer, 8-CH, 28GBPS, FCBGA-135NEW | 6130 |
|
RFQ | |
|
|
Vyrian | Line Transceiver, 8 Func, 8 Driver, 8 Rcvr, PBGA135 | 7587 |
|
RFQ | |
|
|
Win Source Electronics | IC RETIMER 28GBPS 135-FCBGA / 28 Gbps Multi-Rate 8-Channel Retimer | 940 |
|
$105.9652 / $122.2675 | Buy Now |
US Tariff Estimator: DS280DF810ABVT by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
DS280DF810ABVT CAD Models
-

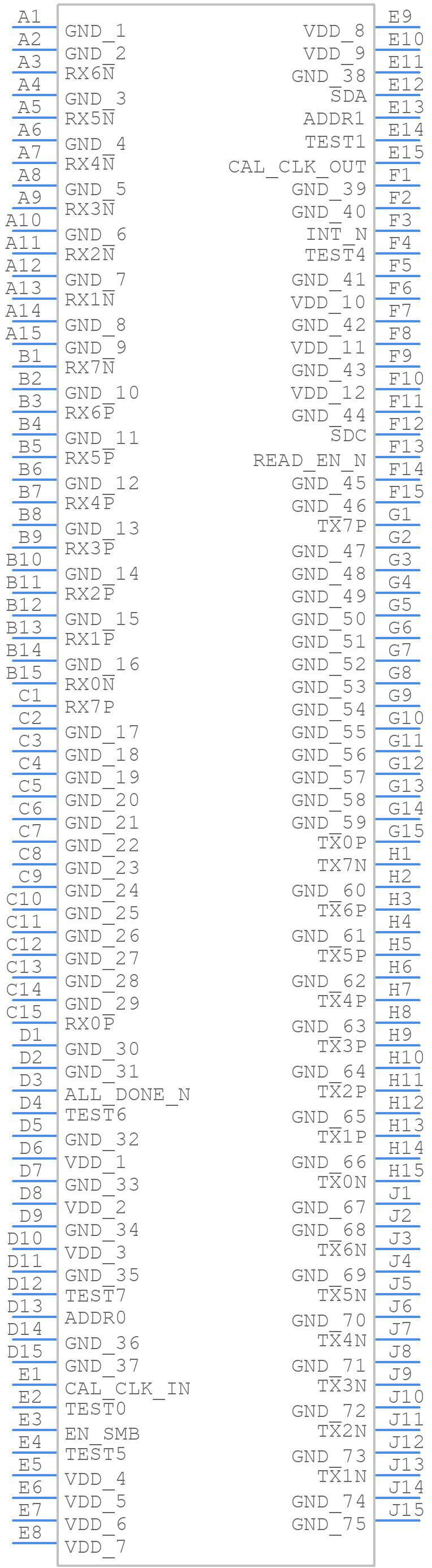

Part Symbol
-
