DS3232MZ+ Information
DS3232MZ+ by Analog Devices Inc is a Timer or RTC.
Timers or RTCs are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for DS3232MZ+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
73Y1626
|
Newark | Rtc W/ Sram, 236Byte, Nsoic-8, Date Format:Day, Date, Month, Year, Clock Format:Hh:Mm:Ss, Clock Ic Type:Alarm Rtc, Supply Voltage Min:2.3V, Supply Voltage Max:4.5V, Clock Ic Case Style:Nsoic, No. Of Pins:8Pins, Ic Interface Type:I2C Rohs Compliant: Yes |Analog Devices DS3232MZ+ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 21 |
|
$7.4500 / $11.9000 | Buy Now |
|
DISTI #
700-DS3232MZ+
|
Mouser Electronics | Real Time Clock 5ppm, I C Real-Time Clock with SRAM RoHS: Compliant | 3383 |
|
$7.2800 / $11.9000 | Buy Now |
|
DISTI #
V36:1790_26354574
|
Arrow Electronics | Real Time Clock Serial 236byte Clock/Calendar/Alarm/Battery Backup 8-Pin SOIC N Tube COO: Taiwan RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 10 Weeks Date Code: 2513 | Americas - 3 |
|
$7.4248 | Buy Now |
|
|
Analog Devices Inc | =/- 5PPM I2C TRC with MEMORY M Package Multiple: 1 | 26102 |
|
$7.2878 / $11.9000 | Buy Now |
|
DISTI #
91900737
|
Verical | Real Time Clock Serial 236byte Clock/Calendar/Alarm/Battery Backup 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 3 Package Multiple: 3 Date Code: 2513 | Americas - 3 |
|
$7.4248 | Buy Now |
|
DISTI #
V36:1790_26354574
|
Arrow Electronics | Real Time Clock Serial 236byte Clock/Calendar/Alarm/Battery Backup 8-Pin SOIC N Tube COO: Taiwan RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 10 Weeks Date Code: 2513 | Americas - 3 |
|
$7.4248 | Buy Now |
|
DISTI #
91900737
|
Verical | Real Time Clock Serial 236byte Clock/Calendar/Alarm/Battery Backup 8-Pin SOIC N Tube COO: Taiwan RoHS: Compliant Min Qty: 3 Package Multiple: 3 Date Code: 2513 | Americas - 3 |
|
$7.4248 | Buy Now |
|
DISTI #
DS3232MZ+
|
TME | IC: RTC circuit, I2C, SRAM, 236BSRAM, SO8, 2.3÷4.5V Min Qty: 1 | 0 |
|
$7.9400 / $9.9000 | RFQ |
|
DISTI #
V36:1790_26354574
|
Arrow Electronics | Real Time Clock Serial 236byte Clock/Calendar/Alarm/Battery Backup 8-Pin SOIC N Tube COO: Taiwan RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 10 Weeks Date Code: 2513 | Americas - 3 |
|
$7.4248 | Buy Now |
|
DISTI #
91900737
|
Verical | Real Time Clock Serial 236byte Clock/Calendar/Alarm/Battery Backup 8-Pin SOIC N Tube COO: Taiwan RoHS: Compliant Min Qty: 3 Package Multiple: 3 Date Code: 2513 | Americas - 3 |
|
$7.4248 | Buy Now |
US Tariff Estimator: DS3232MZ+ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for DS3232MZ+
DS3232MZ+ CAD Models
-

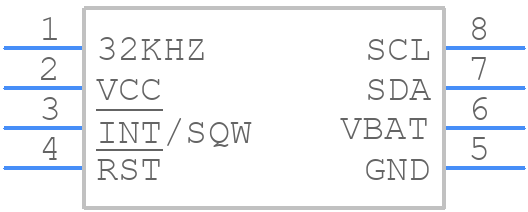

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
DS3232MZ+ Part Data Attributes
|
|
DS3232MZ+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
DS3232MZ+
Analog Devices Inc
Real Time Clock, Non-Volatile, 0 Timer(s), CMOS, PDSO8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | 8-SOIC_N-150_MIL | |
| Package Description | Sop, Sop8,.25 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 8-SOIC_N-150_MIL | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 2012-03-22 | |
| Clock Frequency-Max | 0.032 Mhz | |
| External Data Bus Width | ||
| Information Access Method | Serial(I2c) | |
| Interrupt Capability | Y | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Terminals | 8 | |
| Number of Timers | ||
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 Mm | |
| Supply Voltage-Max | 4.5 V | |
| Supply Voltage-Min | 2.3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time-Min | Seconds | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Volatile | No | |
| Width | 3.9 Mm | |
| uPs/uCs/Peripheral ICs Type | Timer, Real Time Clock |
Alternate Parts for DS3232MZ+
This table gives cross-reference parts and alternative options found for DS3232MZ+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DS3232MZ+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| DS3232MZ/V+T | Analog Devices Inc | Check for Price | Real Time Clock, 0 Timer(s), CMOS, PDSO8 | DS3232MZ+ vs DS3232MZ/V+T |
DS3232MZ+ Frequently Asked Questions (FAQ)
-
The recommended crystal oscillator frequency for the DS3232MZ+ is 32.768 kHz, which is a standard frequency for real-time clocks.
-
The internal oscillator of the DS3232MZ+ has an accuracy of ±2 ppm (parts per million) over the operating temperature range of -40°C to +85°C.
-
Yes, the DS3232MZ+ has a battery-backup mode that allows it to continue keeping time even when the main power supply is lost. The device can be powered by a battery or supercapacitor.
-
The maximum frequency of the SQW/INT pin output is 1 Hz, which is typically used for generating a 1 Hz clock signal.
-
The time and date on the DS3232MZ+ can be set using the I2C interface. The device has a set of registers that can be written to set the time, date, and other parameters.
