Part Details for DS87C520-MCL+ by Analog Devices Inc
Results Overview of DS87C520-MCL+ by Analog Devices Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (1 option)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Transportation and Logistics
Renewable Energy
Automotive
Robotics and Drones
DS87C520-MCL+ Information
DS87C520-MCL+ by Analog Devices Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for DS87C520-MCL+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-DS87C520-MCL
|
Mouser Electronics | 8-bit Microcontrollers - MCU EPROM/ROM High-Speed Microcontrollers RoHS: Compliant | 440 |
|
$47.8100 / $65.2900 | Buy Now |
|
|
Analog Devices Inc | EPROM/ROM High-Speed Microcont Package Multiple: 1 | 0 |
|
$33.7900 / $59.5000 | Buy Now |
|
DISTI #
DS87C520-MCL+
|
TME | IC: microcontroller 8051, Interface: I2C,SPI,UART, DIP40 Min Qty: 1 | 0 |
|
$36.1400 / $40.6000 | RFQ |
US Tariff Estimator: DS87C520-MCL+ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for DS87C520-MCL+
DS87C520-MCL+ CAD Models
-

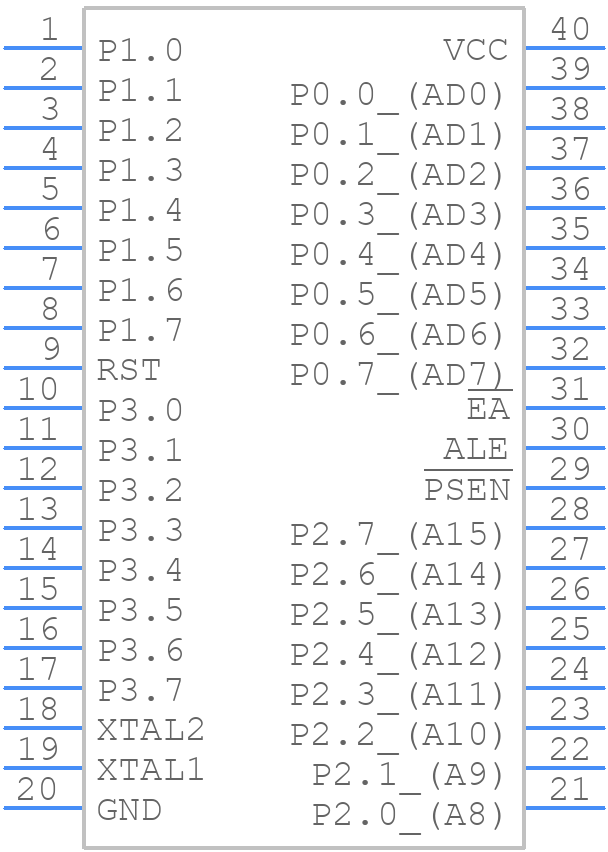

Part Symbol
-

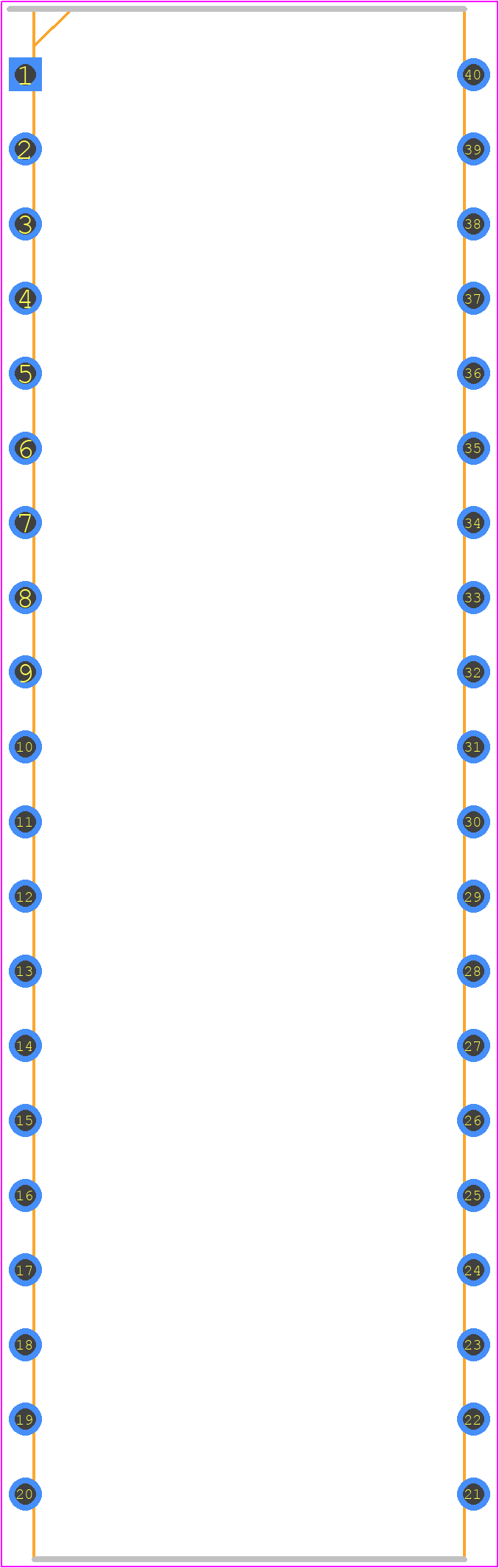

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
DS87C520-MCL+ Part Data Attributes
|
|
DS87C520-MCL+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
DS87C520-MCL+
Analog Devices Inc
Microcontroller, 8-Bit, OTPROM, 8051 CPU, 33MHz, CMOS, PDIP40
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | 40-PDIP-600_MIL | |
| Package Description | Dip, Dip40,.6 | |
| Pin Count | 40 | |
| Manufacturer Package Code | 40-PDIP-600_MIL | |
| Reach Compliance Code | Compliant | |
| ECCN Code | 3A991.a.2 | |
| HTS Code | 8542.31.00.15 | |
| Date Of Intro | 2000-07-03 | |
| Has ADC | No | |
| Address Bus Width | 16 | |
| Bit Size | 8 | |
| Boundary Scan | No | |
| CPU Family | 8051 | |
| Clock Frequency-Max | 33 Mhz | |
| DAC Channels | No | |
| DMA Channels | No | |
| External Data Bus Width | 8 | |
| JESD-30 Code | R-PDIP-T40 | |
| JESD-609 Code | e3 | |
| Length | 52.075 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of I/O Lines | 32 | |
| Number of Terminals | 40 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| PWM Channels | No | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | DIP | |
| Package Equivalence Code | DIP40,.6 | |
| Package Shape | Rectangular | |
| Package Style | In-Line | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 1280 | |
| ROM (words) | 16384 | |
| ROM Programmability | Otprom | |
| Seated Height-Max | 5.08 Mm | |
| Speed | 33 Mhz | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | No | |
| Technology | Cmos | |
| Temperature Grade | Commercial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Through-Hole | |
| Terminal Pitch | 2.54 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 15.24 Mm | |
| uPs/uCs/Peripheral ICs Type | Microcontroller |
Alternate Parts for DS87C520-MCL+
This table gives cross-reference parts and alternative options found for DS87C520-MCL+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DS87C520-MCL+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| DS87C520-MNL+ | Analog Devices Inc | Check for Price | Microcontroller, 8-Bit, OTPROM, 8051 CPU, 33MHz, CMOS, PDIP40 | DS87C520-MCL+ vs DS87C520-MNL+ |
DS87C520-MCL+ Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures proper initialization of the device.
-
The clock source can be configured using the CLK_SEL pin. Tie it to VCC for an internal clock source or to GND for an external clock source. Additionally, the clock frequency can be set using the XTAL1 and XTAL2 pins.
-
The maximum clock frequency supported is 40 MHz. However, it's recommended to operate the device at a frequency below 30 MHz for optimal performance and to minimize power consumption.
-
The watchdog timer can be implemented using the WDT pin. Connect a resistor and capacitor in series between the WDT pin and VCC to set the watchdog timer period. The watchdog timer can be enabled or disabled using the WDT_EN bit in the SYSCFG register.
-
The BOD is used to detect when the supply voltage falls below a certain threshold (typically 2.5V). When this occurs, the device resets to prevent incorrect operation. The BOD can be enabled or disabled using the BOD_EN bit in the SYSCFG register.
