Part Details for E3Z-R61 by OMRON Electronic Components
Results Overview of E3Z-R61 by OMRON Electronic Components
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
E3Z-R61 Information
E3Z-R61 by OMRON Electronic Components is a Linear Position Sensor.
Linear Position Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for E3Z-R61
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
000000000000519512
|
Sager | Photoelectric Sensors NPN POLAR RETROREFL Min Qty: 1 | 0 |
|
$136.9200 / $151.0100 | Buy Now |
US Tariff Estimator: E3Z-R61 by OMRON Electronic Components
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
E3Z-R61 CAD Models
-

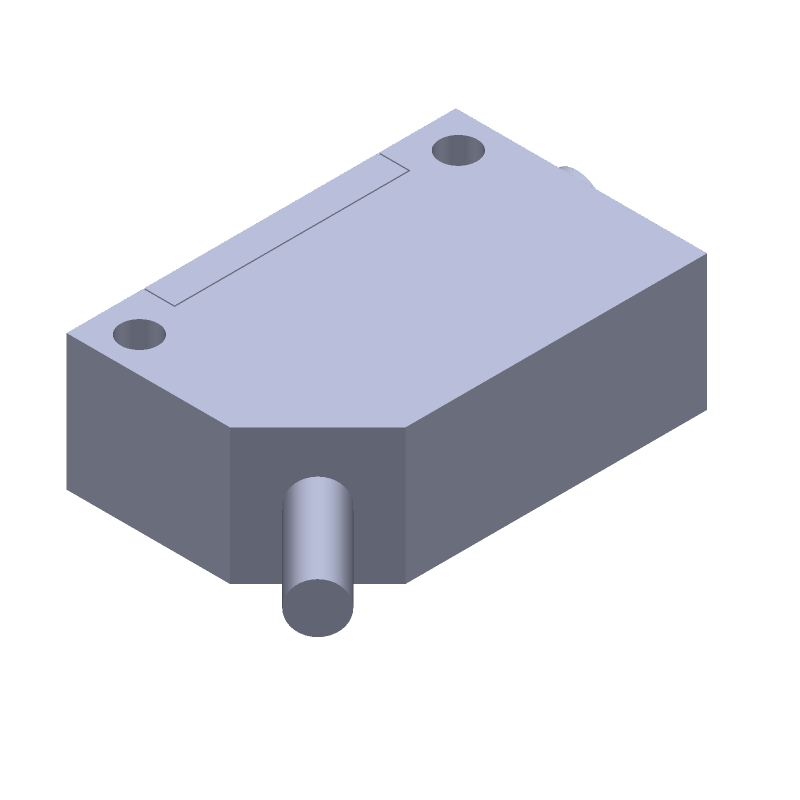

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
E3Z-R61 Part Data Attributes
|
|
E3Z-R61
OMRON Electronic Components
Buy Now
Datasheet
|
Compare Parts:
E3Z-R61
OMRON Electronic Components
Retroreflective Photoelectric Sensor, 100mm Min, 4000mm Max, Rectangular, Board Mount
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Reach Compliance Code | Unknown | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 3 Weeks | |
| Additional Feature | Ip 67, Ip 69k, Reverse Polarity Protection, Short Circuit Protection | |
| Body Breadth | 10.8 Mm | |
| Body Height | 31 Mm | |
| Body Length or Diameter | 20 Mm | |
| Housing | Pbt | |
| Measurement Range-Max (mm) | 4000 Mm | |
| Measurement Range-Min (mm) | 100 Mm | |
| Mounting Feature | Board Mount | |
| Operating Temperature-Max | 55 °C | |
| Operating Temperature-Min | -25 °C | |
| Output Circuit Type | Open Collector | |
| Output Type | Npn | |
| Package Shape/Style | Rectangular | |
| Response Time | 1000 µS | |
| Sensors/Transducers Type | Linear Position Sensor,Photoelectric,Retroreflective | |
| Supply Voltage-Max | 26.4 V | |
| Supply Voltage-Min | 10.8 V | |
| Surface Mount | No | |
| Termination Type | Wire |
E3Z-R61 Frequently Asked Questions (FAQ)
-
The recommended mounting distance for the E3Z-R61 sensor is 10-20 mm from the detection object, but this may vary depending on the specific application and environment.
-
The E3Z-R61 has a built-in ambient light filter that helps to reduce interference from external light sources. Additionally, the sensor's optical design and signal processing algorithms also help to minimize the effects of ambient light.
-
The E3Z-R61 is rated for operation in temperatures ranging from -25°C to 55°C. While it can tolerate some high-temperature environments, it's not suitable for extremely high-temperature applications. Consult the datasheet for specific temperature ratings and derating information.
-
The response time of the E3Z-R61 sensor is typically around 10-20 ms, but this may vary depending on the specific application and detection object.
-
The E3Z-R61 is not designed for use in explosive or hazardous environments. It does not have any specific certifications for use in such environments, and its use in these applications is not recommended.
