Capacitors / Fixed Capacitors / ECEA1HKA220
Datasheets
ECEA1HKA220 by:
Panasonic Electronic Components

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

Part Details for ECEA1HKA220 by Panasonic Electronic Components

Results Overview of ECEA1HKA220 by Panasonic Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

ECEA1HKA220 Information

ECEA1HKA220 by Panasonic Electronic Components is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for ECEA1HKA220

Part # Distributor Description Stock Price Buy
DISTI # 62W6364
Newark Cap, Alu Elec, 22Uf, 50V, Radial, Capacitance:22Μf, Voltage(Dc):50V, Capacitance Tolerance:± 20%, Capacitor Terminals:Pc Pin, Lifetime @ Temperature:1000 Hours @ 85°C, Polarity:Polar, Capacitor Case/Package:Radial Leaded, Esr:- Rohs Compliant: Yes |Panasonic ECEA1HKA220 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 4918
  • 1 $0.2900
  • 10 $0.1470
  • 25 $0.1310
  • 50 $0.1160
  • 100 $0.1010
  • 500 $0.0930
  • 1,000 $0.0850
$0.0850 / $0.2900 Buy Now
Quest Components CAP,AL2O3,22UF,50VDC,20-% TOL,20+% TOL (Also Known As: ECE-A1HKA220) 1943
  • 1 $0.2170
  • 93 $0.0651
  • 769 $0.0434
$0.0434 / $0.2170 Buy Now
Quest Components CAP,AL2O3,22UF,50VDC,20-% TOL,20+% TOL 1943
  • 1 $0.2170
  • 93 $0.0651
  • 769 $0.0434
$0.0434 / $0.2170 Buy Now
Quest Components CAP,AL2O3,22UF,50VDC,20-% TOL,20+% TOL 360
  • 1 $0.0868
  • 59 $0.0651
  • 155 $0.0543
$0.0543 / $0.0868 Buy Now
Quest Components CAP,AL2O3,22UF,50VDC,20-% TOL,20+% TOL (Also Known As: ECE-A1HKA220) 360
  • 1 $0.0868
  • 59 $0.0651
  • 155 $0.0543
$0.0543 / $0.0868 Buy Now
Quest Components CAP,AL2O3,22UF,50VDC,20-% TOL,20+% TOL 160
  • 1 $0.3000
  • 18 $0.1500
  • 68 $0.0900
$0.0900 / $0.3000 Buy Now
Quest Components CAP,AL2O3,22UF,50VDC,20-% TOL,20+% TOL (Also Known As: ECE-A1HKA220) 160
  • 1 $0.3000
  • 18 $0.1500
  • 68 $0.0900
$0.0900 / $0.3000 Buy Now
Quest Components CAP,AL2O3,22UF,50VDC,20-% TOL,20+% TOL (Also Known As: ECE-A1HKA220) 84
  • 1 $0.3750
  • 14 $0.3000
  • 34 $0.1688
$0.1688 / $0.3750 Buy Now
Quest Components CAP,AL2O3,22UF,50VDC,20-% TOL,20+% TOL 84
  • 1 $0.3750
  • 14 $0.3000
  • 34 $0.1688
$0.1688 / $0.3750 Buy Now
DISTI # ECEA1HKA220
TME Capacitor: electrolytic, THT, 22uF, 50VDC, Ø6.3x7mm, Pitch: 2.5mm Min Qty: 1 0
  • 1 $0.2800
  • 10 $0.1590
  • 50 $0.1070
  • 100 $0.0940
  • 200 $0.0840
  • 600 $0.0740
  • 1,000 $0.0710
  • 2,000 $0.0700
$0.0700 / $0.2800 RFQ
DISTI # ECEA1HKA220
Avnet Abacus Electrolytic Capacitor 22 F 50 V 20 Radial Leaded 1000 hours 85C Polar (Alt: ECEA1HKA220) RoHS: Compliant Min Qty: 4000 Package Multiple: 200 Lead time: 22 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # ECEA1HKA220
Avnet Asia Electrolytic Capacitor, 22 ?F, 50 V, ? 20%, Radial Leaded, 1000 hours @ 85?C, Polar (Alt: ECEA1HKA220) RoHS: Compliant Min Qty: 2000 Package Multiple: 200 Lead time: 16 Weeks, 0 Days 0
RFQ

US Tariff Estimator: ECEA1HKA220 by Panasonic Electronic Components

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

ECEA1HKA220
Panasonic Electronic Components
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for ECEA1HKA220

ECEA1HKA220 CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

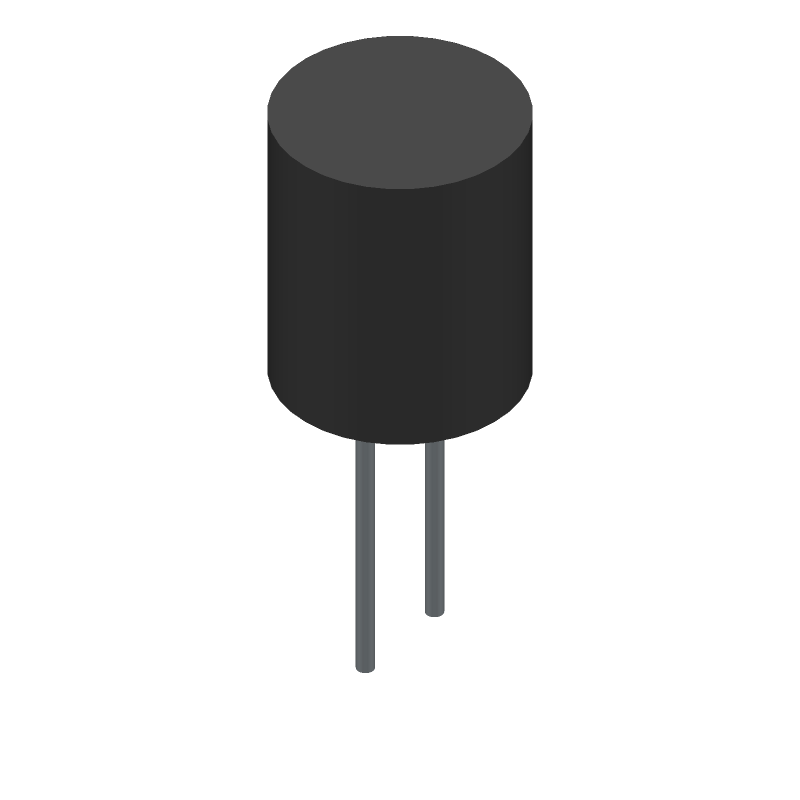

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ECEA1HKA220 Part Data Attributes

Parametric Data
ECEA1HKA220 Panasonic Electronic Components
Buy Now Datasheet
Compare Parts:
ECEA1HKA220 Panasonic Electronic Components Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Package Description Radial Leaded
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8532.22.00.20
Factory Lead Time 28 Weeks, 1 Day
Capacitance 22 µF
Capacitor Type Aluminum Electrolytic Capacitor
Diameter 6.3 Mm
Dielectric Material Aluminum (Wet)
JESD-609 Code e3
Leakage Current 0.011 Ma
Length 7 Mm
Mounting Feature Through Hole Mount
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Shape Cylindrical Package
Package Style Radial
Packing Method Bulk
Polarity Polarized
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 50 V
Ripple Current 60 Ma
Surface Mount No
Tan Delta 0.1
Terminal Finish Tin (Sn)
Terminal Pitch 2.5 Mm
Terminal Shape Wire

Alternate Parts for ECEA1HKA220

This table gives cross-reference parts and alternative options found for ECEA1HKA220. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ECEA1HKA220, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
8220LFMAA07SCN58EB Fenghua (HK) Electronics Ltd Check for Price CAP,AL2O3,22UF,50VDC,20% -TOL,20% +TOL ECEA1HKA220 vs 8220LFMAA07SCN58EB
8220LFMAA07SCN981B Fenghua (HK) Electronics Ltd Check for Price CAP,AL2O3,22UF,50VDC,20% -TOL,20% +TOL ECEA1HKA220 vs 8220LFMAA07SCN981B
LA22M50TR266.3X7 IBS Electronics Inc Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 50V, 20% +Tol, 20% -Tol, 22uF ECEA1HKA220 vs LA22M50TR266.3X7
2220LFMAA07SCN98FA Fenghua (HK) Electronics Ltd Check for Price CAP,AL2O3,22UF,50VDC,20% -TOL,20% +TOL ECEA1HKA220 vs 2220LFMAA07SCN98FA
8220LFMAA07SCN58FC Fenghua (HK) Electronics Ltd Check for Price CAP,AL2O3,22UF,50VDC,20% -TOL,20% +TOL ECEA1HKA220 vs 8220LFMAA07SCN58FC
1220LFMAA07SCN481F Fenghua (HK) Electronics Ltd Check for Price CAP,AL2O3,22UF,50VDC,20% -TOL,20% +TOL ECEA1HKA220 vs 1220LFMAA07SCN481F
2220LFMAA07SCN9850 Fenghua (HK) Electronics Ltd Check for Price CAP,AL2O3,22UF,50VDC,20% -TOL,20% +TOL ECEA1HKA220 vs 2220LFMAA07SCN9850
8220LFMAA07SCN0P Fenghua (HK) Electronics Ltd Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 50V, 20% +Tol, 20% -Tol, 22uF ECEA1HKA220 vs 8220LFMAA07SCN0P
1220LFMAA07SCN281A Fenghua (HK) Electronics Ltd Check for Price CAP,AL2O3,22UF,50VDC,20% -TOL,20% +TOL ECEA1HKA220 vs 1220LFMAA07SCN281A
USW1H220MDD1TE Nichicon Corporation Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount, RADIAL LEADED ECEA1HKA220 vs USW1H220MDD1TE
equivalents icon

ECEA1HKA220 Frequently Asked Questions (FAQ)

  • The recommended land pattern for ECEA1HKA220 is a rectangular pad with a size of 3.5mm x 2.5mm, with a 0.5mm radius corner and a 0.3mm gap between pads.

  • Yes, ECEA1HKA220 is rated for operation up to 125°C, but it's recommended to derate the voltage and current ratings according to the temperature derating curve provided in the datasheet.

  • Handle the ECEA1HKA220 by the tabs or the body, avoiding touching the leads or the capacitive area. Use an anti-static wrist strap or mat to prevent electrostatic discharge damage.

  • Yes, ECEA1HKA220 is rated for operation in humid environments, but it's recommended to follow the moisture sensitivity level (MSL) guidelines to prevent damage during assembly and storage.

  • The ESR of ECEA1HKA220 is not explicitly stated in the datasheet, but it can be estimated to be around 0.1 ohms based on the impedance characteristics provided in the datasheet.
